Operation Manual - QoS/ACL
Quidway S3500 Series Ethernet Switches Chapter 1 ACL Configuration
Huawei Technologies Proprietary
1-25
Operation Command
Display the configuration of flow
template
display flow-template [ default | interface
interface-type interface-num | user-defined ]
Clear ACL counters reset acl counter { all | acl-number | acl-name }
The matched information of display acl config command specifies the rules treated by
the switch’s CPU. The matched information of the transmitted data by switch can be
displayed by display qos-interface traffic-statistic command.
For syntax description, refer to the Command Manual.
1.5 ACL Configuration Example of S3526
1.5.1 Advanced ACL Configuration Example
I. Networking requirements
The interconnection between different departments on a company network is
implemented through the 100M ports of the Ethernet Switch. The payment query server
of the Financial Dept. is accessed via Ethernet1/1 (at 129.110.1.2). It is required to
properly configure the ACL and limit the department access the payment query server
between 8:00 and 18:00.
II. Networking diagram
Administration Department
subnet address
10.120.0.0
Financial Department
subnet address
10.110.0.0
Office of President
129.111.1.2
Pay query server
129.110.1.2
Switch
#1
#4
#3
#2
Connected to a router

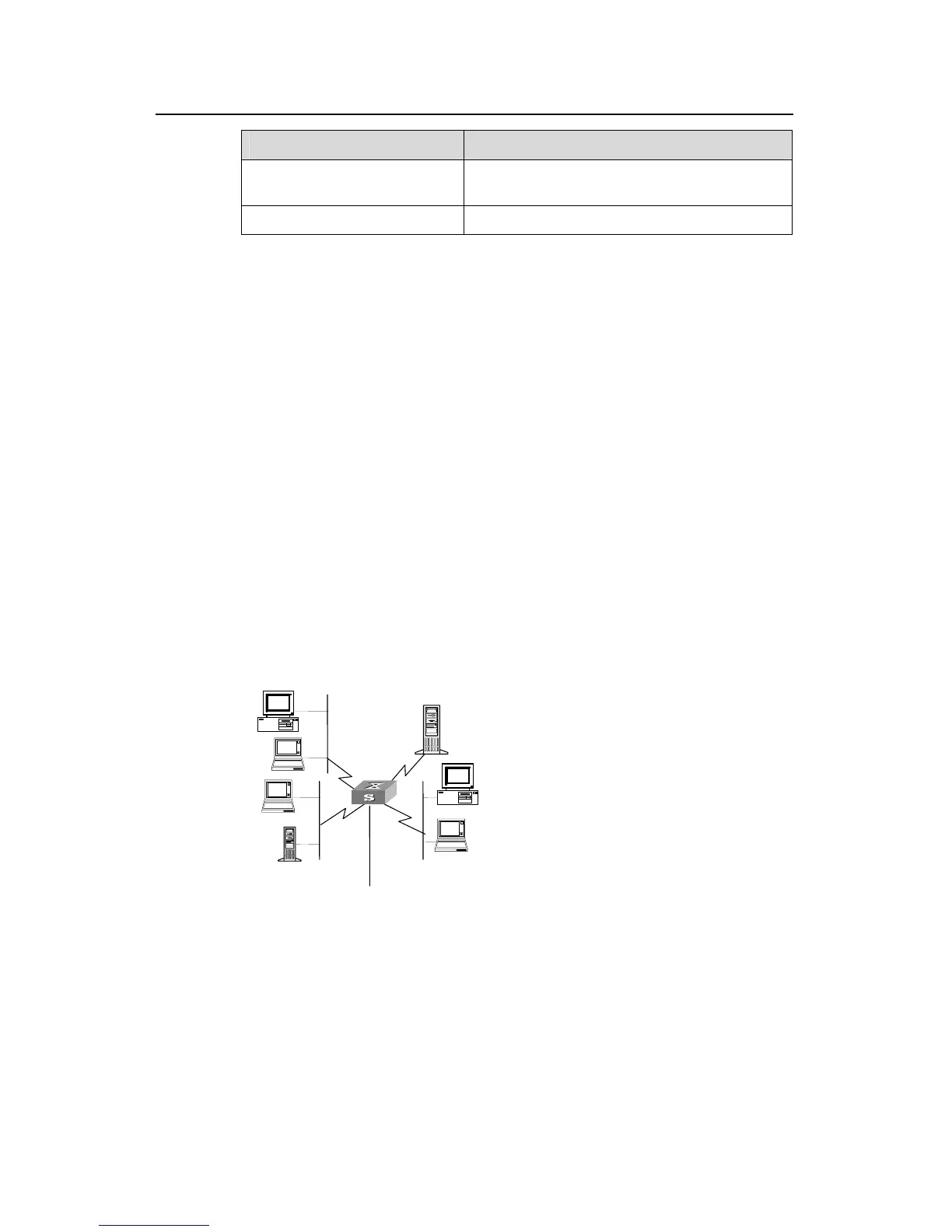

Figure 1-2 Access control configuration example
III. Configuration procedure
