Operation Manual - QoS/ACL
Quidway S3500 Series Ethernet Switches Chapter 1 ACL Configuration
Huawei Technologies Proprietary
1-30
 Note:
In the following configurations, only the commands related to ACL configurations are
listed.
1) Define the time range
# Define time range from 8:00 to 18:00.
[Quidway] time-range huawei 8:00 to 18:00 daily
2) Define the ACL for packet which source IP is 10.1.1.1.
# Enter the named basic ACL, named as traffic-of-host.
[Quidway] acl name traffic-of-host basic
# Define the rules for packet which source IP is 10.1.1.1.
[Quidway-acl-basic-traffic-of-host] rule 1 deny source 10.1.1.1 0 time-range huawei
3) Activate ACL.
# Activate the ACL traffic-of-host .
[Quidway] packet-filter ip-group traffic-of-host
1.6.3 Link ACL Configuration Example
I. Networking requirements
Using Link ACL, filter the packet which source MAC address is 00e0-fc01-0101 and
destination MAC address is 00e0-fc01-0303 during time range 8:00 ~ 18:00 every day.
II. Networking diagram
Switch
#1
connect to Router

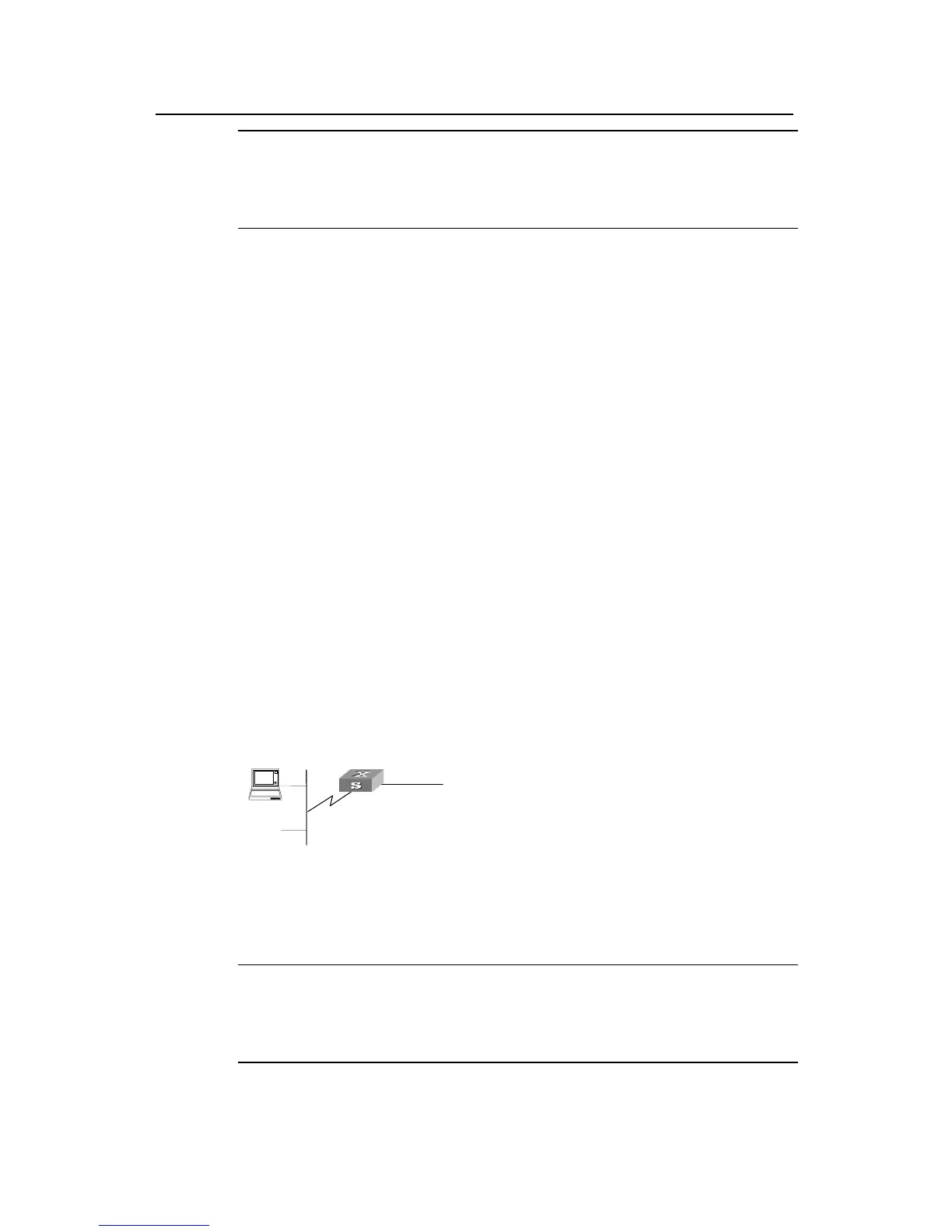

Figure 1-7 Access control configuration example
III. Configuration procedure
 Note:
In the following configurations, only the commands related to ACL configurations are
listed.
