Operation Manual - QoS/ACL
Quidway S3500 Series Ethernet Switches Chapter 2 QoS Configuration
Huawei Technologies Proprietary
2-32
2.5 QoS Configuration Example of S3526
2.5.1 Traffic Mirroring Configuration Example
I. Networking requirements
Use a Server to monitor the communication traffic that two PCs generated between
them in the time range 8:00 to 18:00. Suppose the IP addresses of these two PCs are
respectively 1.1.1.1 and 2.2.2.2 and the Server is attached to the Ethernet0/8 port on
the switch, as shown in the following networking diagram.

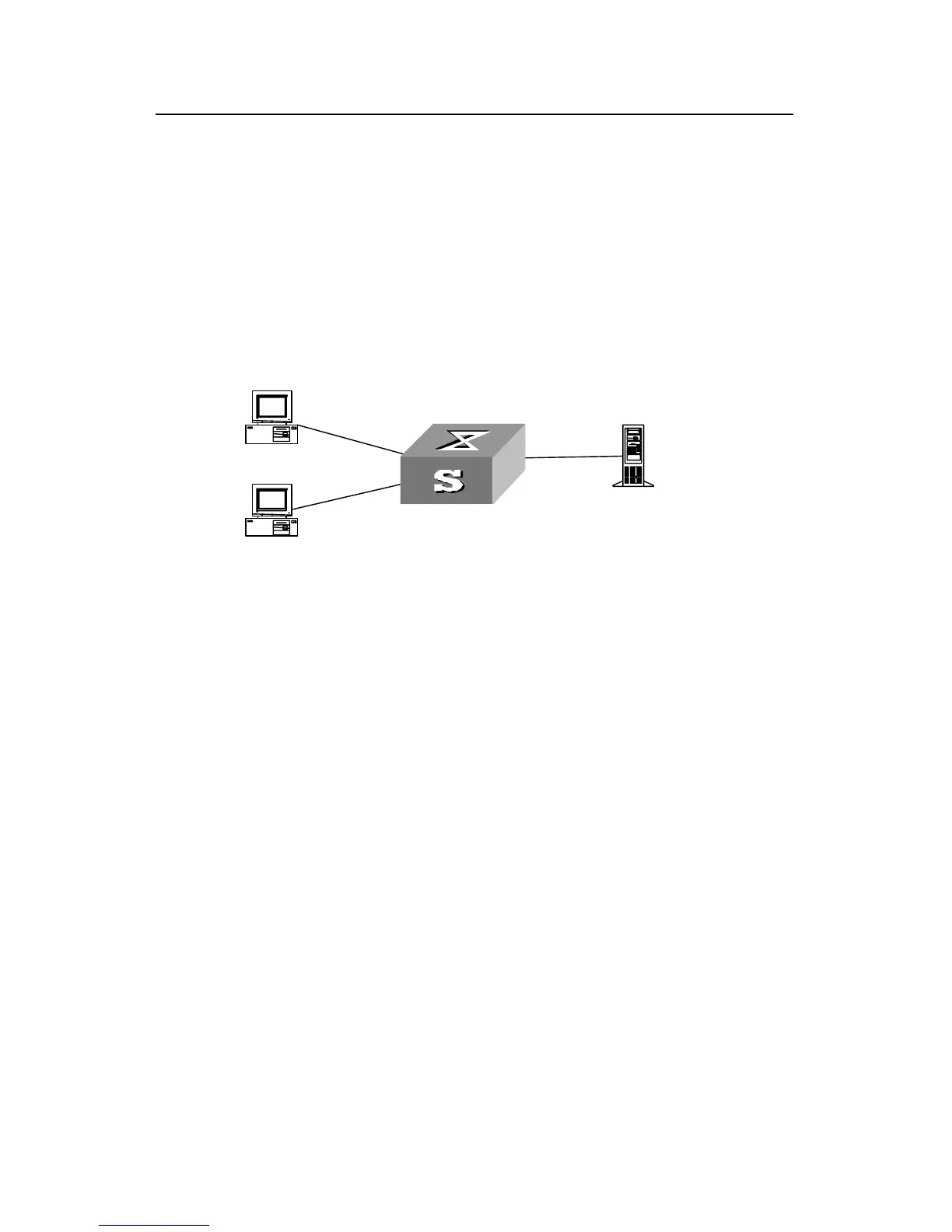

II. Networking diagram
Server
E0/8
Server
E0/8
Figure 2-2 Typical access control configuration example
III. Configuration procedure
1) Define a time range.
# Set time range to the range 8:00 to 18:00.
[Quidway] time-range huawei 8:00 to 18:00 daily
2) Define a rule to be applied on the traffic between two PCs.
# Access the view of the number-based advanced ACL 3000.
[Quidway] acl number 3000
# Define traffic classification rule to be applied on the traffic from PC1 to PC2.
[Quidway-acl-adv-3000] rule 0 permit ip source 1.1.1.1 0.0.0.0 destination 2.2.2.2 0
time-range huawei
# Define a rule to filter in the traffic from PC2 to PC1.
[Quidway-acl-adv-3000] rule 0 permit ip source 2.2.2.2 0.0.0.0 destination 1.1.1.1 0
time-range huawei
3) Monitor the communication traffic between PCs, using Ethernet0/8 as the monitor
port.
[Quidway] mirrored-to ip-group 3000 interface ethernet0/8
