Huawei Quidway S3500 Series User Manual

Operation Manual - Auto Detecting
Quidway S3500 Series Ethernet Switches Chapter 1 Configuring Auto Detecting
Huawei Technologies Proprietary
1-2
Operation Command Remarks
Specify detecting
timeout time.
[Quidway-detect-group-X] timer wait
seconds
Optional.
Defaults to 2
seconds.
Display configurations
of a specified or all
detecting groups.
<Quidway> display detect-group
[ group-number ]
Optional. This
command can
be executed
in any view.
 Note:
z The prompts of detecting group views vary with the actual configurations.
z Refer to the corresponding command manual for information about parameters
listed in the above table and the related undo commands.
1.1.2 Auto Detect Configuration Example
I. Network requirements
z Create a detecting group numbered 10 on Switch A and add two IP addresses in it
to detect the reachability to interfaces with an IP address of 10.1.1.4 and
192.168.2.2.
z Specify to return reachable as the detecting result if one of the two interfaces can
be successfully pinged, that is, specify the or keyword for the option command.
z Specify the detecting interval to 60 seconds; maximum retries to 3, and the
timeout time to 3 seconds.
II. Network diagram
192.168.1.1
192.168.2.1
192.168.1.2
192.168.2.2 20.1.1.2
10.1.1.3
Ethernet 1/0/1
10.1.1.4
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
192.168.1.1/24
192.168.2.1/24
192.168.1.2/24
192.168.2.2/24 20.1.1.2/24
10.1.1.3/24
Ethernet 1/0/1
10.1.1.4/24
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
VLAN 1
VLAN 2
192.168.1.1
192.168.2.1
192.168.1.2
192.168.2.2 20.1.1.2
10.1.1.3
Ethernet 1/0/1
10.1.1.4
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
192.168.1.1/24
192.168.2.1/24
192.168.1.2/24
192.168.2.2/24 20.1.1.2/24
10.1.1.3/24
Ethernet 1/0/1
10.1.1.4/24
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
VLAN 1
VLAN 2

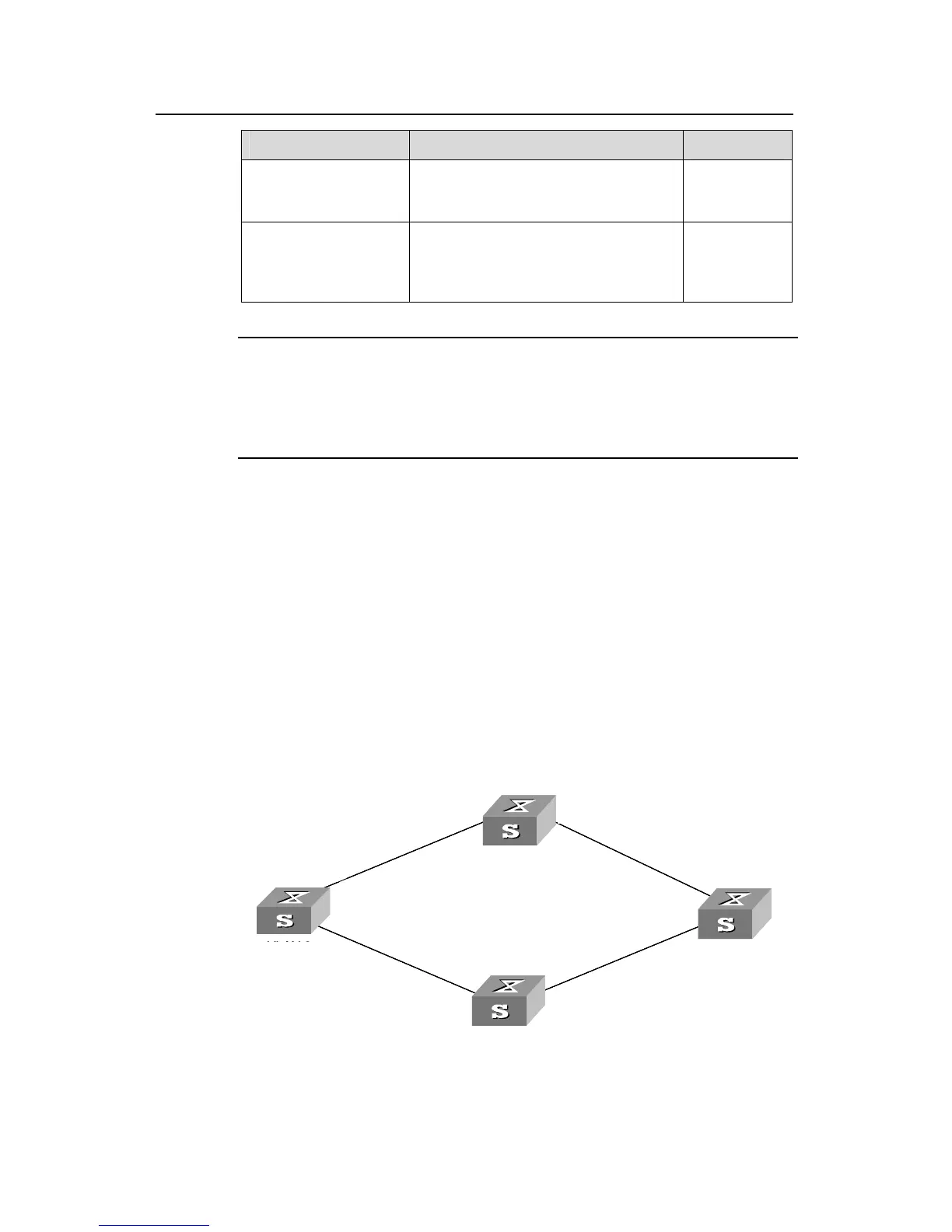

Figure 1-1 Network diagram for auto detect
