Huawei Quidway S3500 Series User Manual

Operation Manual - Integrated Management
Quidway S3500 Series Ethernet Switches Chapter 2 HGMP V2 Configuration
Huawei Technologies Proprietary
2-19
II. Networking diagram
Administrator
device
Member device MAC
address 00e0.fc01.0011
SNMP host/
logging host
Cluster
Network
FTP server/TFTP
server
E0/1 E0/2
E1/1
E1/1
E1/1
69.172.55.4
63.172.55.1
VLAN interface 2
IP address
163.172.55.1
Member device MAC
address 00e0.fc01.0012

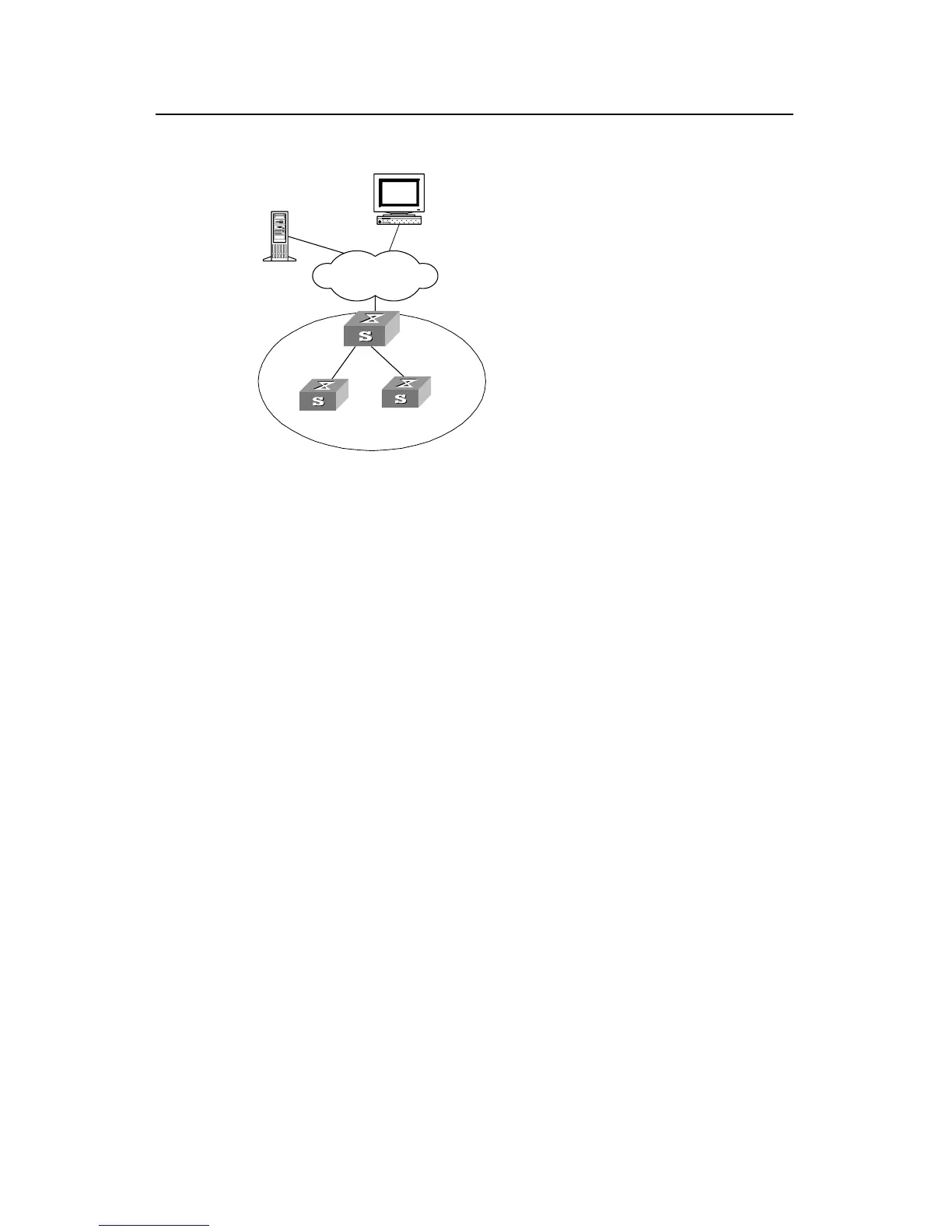

Figure 2-3 HGMP networking
III. Configuration procedure
1) Configure the administrator device
# Enable global NDP on the device and port Ethernet0/1 and Ethernet0/2.
[Quidway] ndp enable
[Quidway] interface ethernet 0/1
[Quidway-Ethernet0/1] ndp enable
[Quidway-Ethernet0/1] interface ethernet 0/2
[Quidway-Ethernet0/2] ndp enable
# Set to hold NDP information for 200 seconds.
[Quidway] ndp timer aging 200
# Configure to sends NDP packet every 70 seconds.
[Quidway] ndp timer hello 70
# Enable NTDP on the device and the port Ethernet0/1 and Ethernet0/2.
[Quidway] ntdp enable
[Quidway] interface ethernet 0/1
[Quidway-Ethernet0/1] ntdp enable
[Quidway-Ethernet0/1] interface ethernet 0/2
[Quidway-Ethernet0/2] ntdp enable
# Configure to collect topology information within 2 hops.
[Quidway] ntdp hop 2
