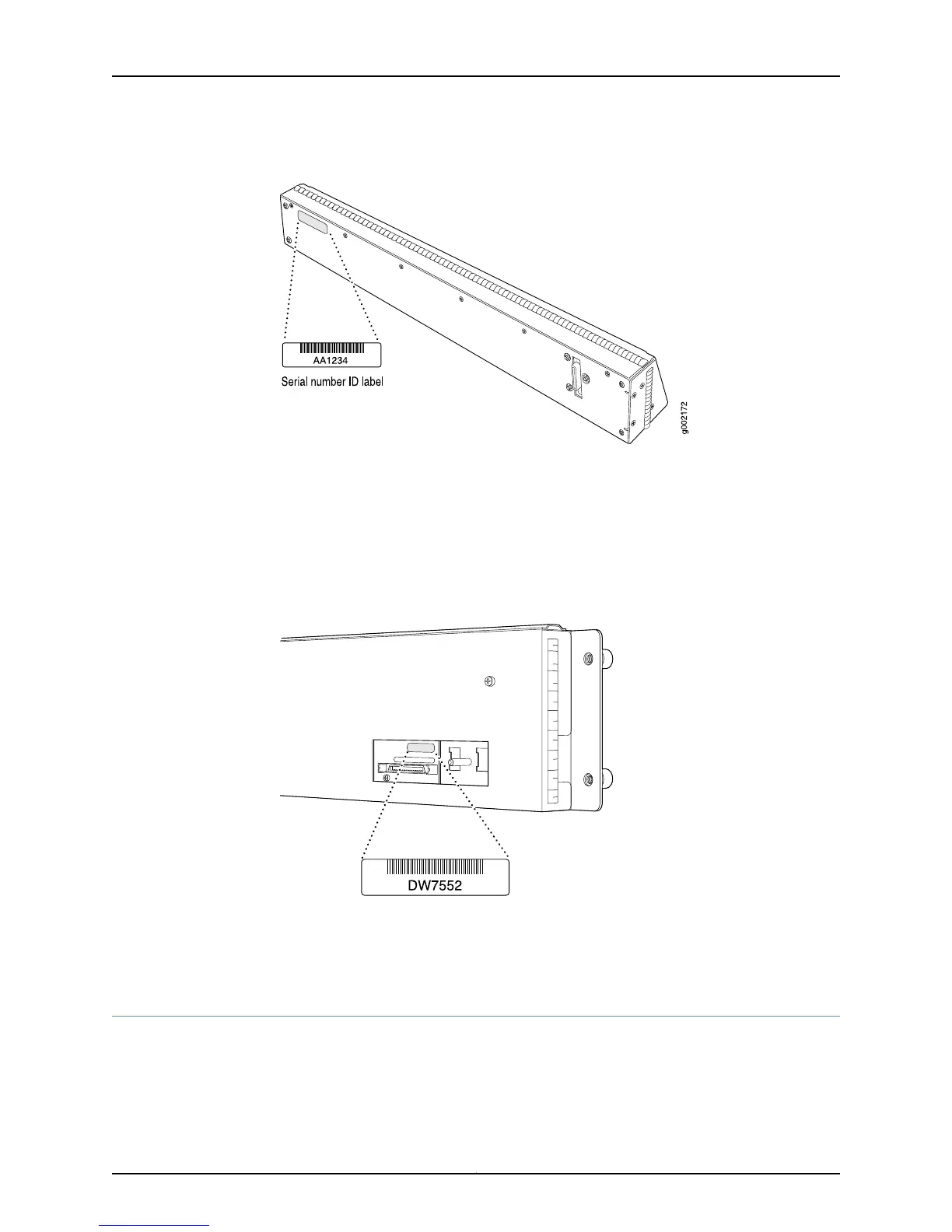

Figure 124: TX Matrix Router Craft Interface Serial Number ID Label

Locating the TX Matrix Plus Router Craft Interface Serial Number ID Label

Purpose To locate the serial number ID on the TX Matrix Plus router craft interface.

Action To locate the TX Matrix Plus router craft interface serial number ID label, look at the back

of the craft interface panel, behind the alarm LEDs (see Figure 125 on page 271).

Figure 125: TX Matrix Plus Router Craft Interface Serial Number ID Label

g004581

Serial number ID label

Documentation

Understanding the Craft Interface on page 252•

Returning the Craft Interface

The craft interface is hot-removable and hot-insertable. You can remove or replace a

craft interface without powering down the system and disrupting routing functions.

Chapter 9: Monitoring the Craft Interface
