T320, T640, and T1600 Router Cable Management System
The T320, T640, and T1600 router cable management system consists of a row of nine
semicircular plastic bobbins mounted on the front of the chassis below the FPC card
cage. PIC cables wrap around the bobbins, keeping the cables organized and securely in
place. (See Figure 188 on page 357.)

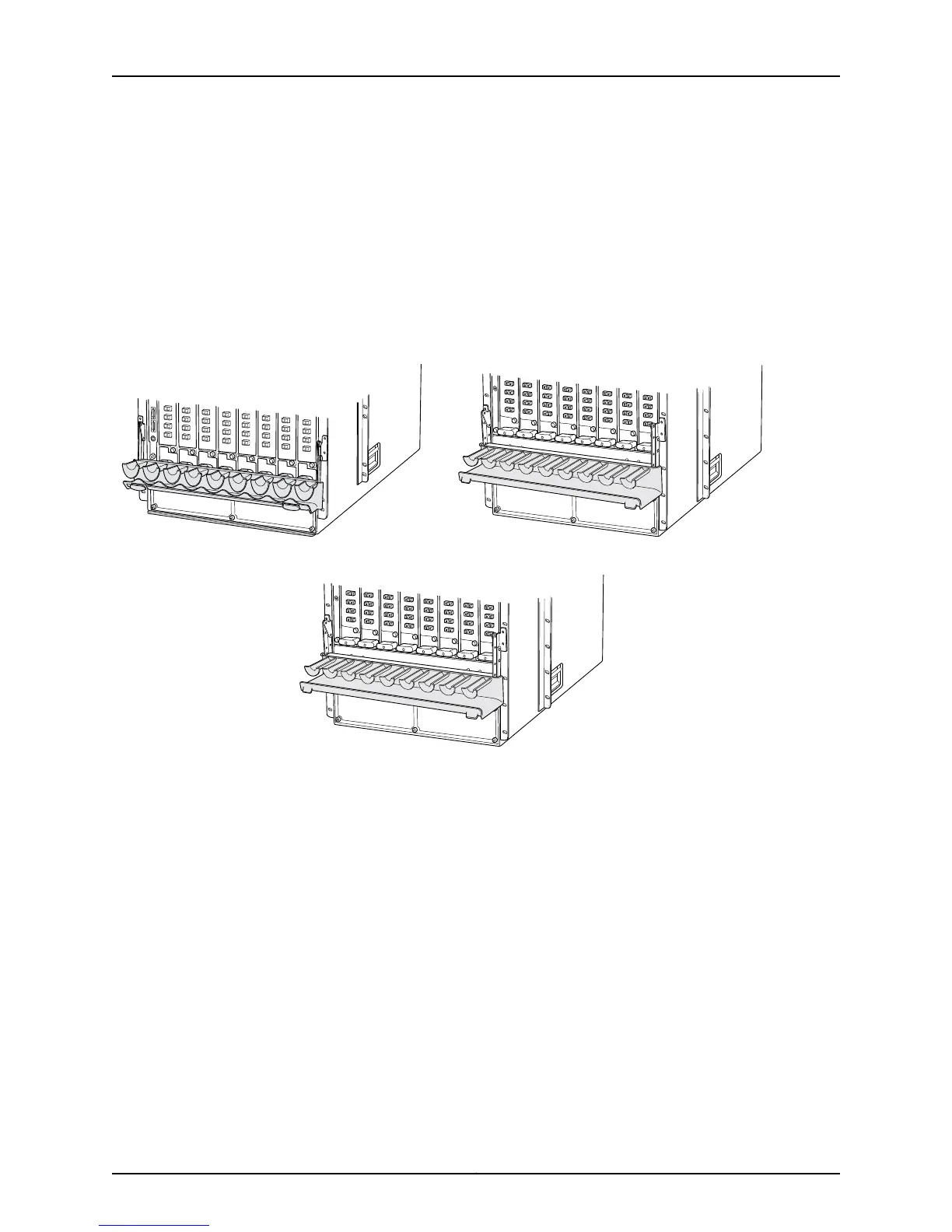

Figure 188: T320 Router, T640 Router, and T1600 Router Cable Management System
Related
Documentation
Checklist for Maintaining Cables and Connectors on page 351•
TX Matrix Router Cable Management System
The TX Matrix cable management system consists of the comb panel assembly and the
cable shelf assembly. The comb panel assembly, which installs immediately above the
TX-SIBs, consists of five combs—one comb above each TX-SIB. Each comb contains
four teeth to organize and provide strain relief to the four fiber-optic array cables
connected to the TX-SIB immediately below it. The fiber-optic array cables extend
through the top of the cable comb so that you can route the cables to the T640 routers.
Figure 189 on page 358 shows the TX Matrix cable management system.
357Copyright © 2012, Juniper Networks, Inc.
Chapter 12: Maintaining the Cable Management System, Cables, and Connectors
