TX Matrix Plus Router Control Board
Figure 213 on page 386 shows the TX Matrix Plus router Control Board component of the
host subsystem. You can install up to two TXP-CBs in the TX Matrix Plus router.

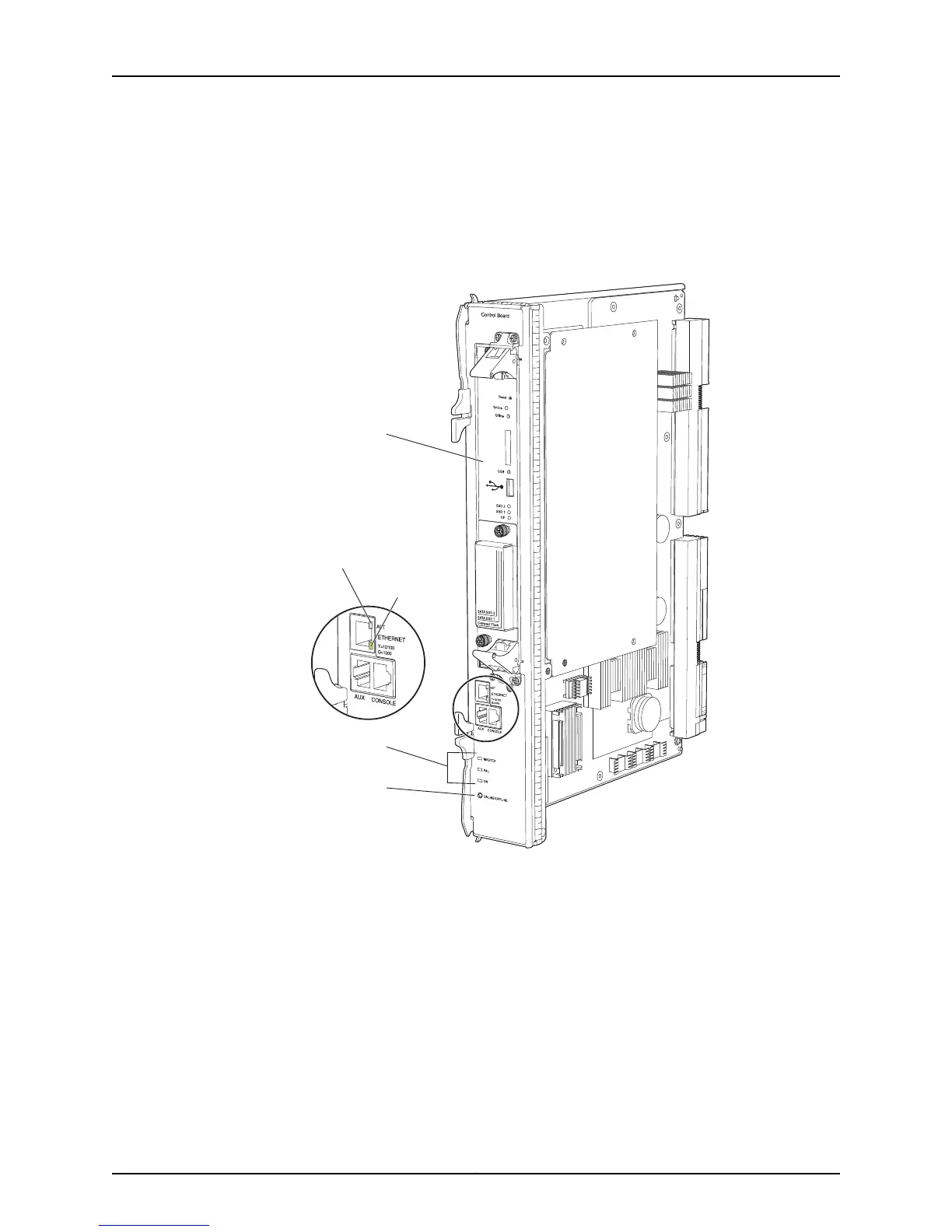

Figure 213: TX Matrix Plus Router Control Board (TXP-CB)
g004509
ONLINE/OFFLINE
button
Status LEDs
Routing Engine
ETHERNET
port ACT LED
ETHERNET
port speed LED
Y = 10/100
G = 1000
Related
Documentation
Checklist for Monitoring the Control Board on page 381•
M320, T320, T640, T1600, TX Matrix, and TX Matrix Plus Router Control Board Location
You can install one or two Control Boards in the router. The Control Boards install into
the upper rear of the chassis in the slots labeled CBO and CB1 (see Figure 214 on page 387
for M320, T320, T640, and T1600 router Control Board location and Figure 215 on page 388
for TX Matrix and TX Matrix Plus router Control Board location).
