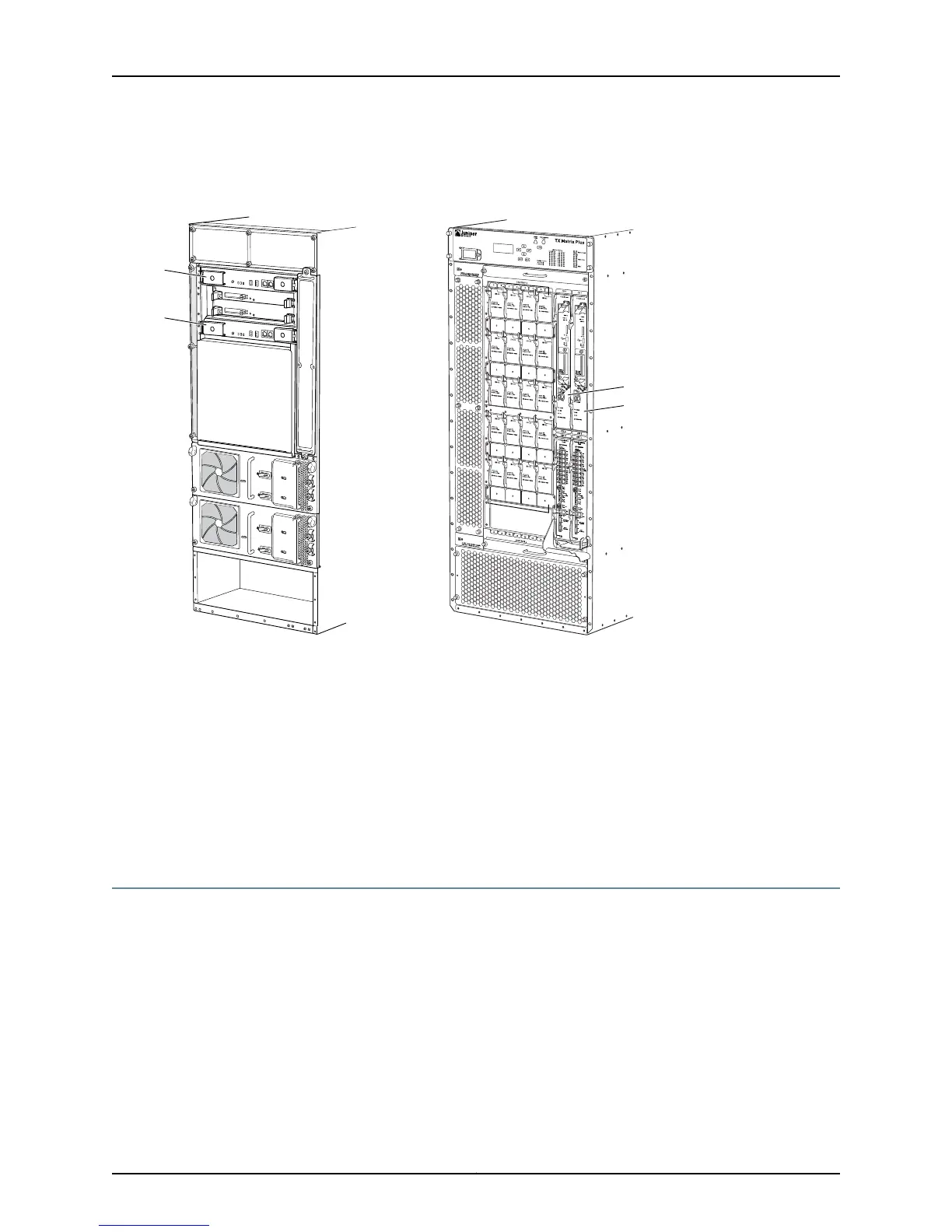

Figure 215: TX Matrix Router and TX Matrix Plus Router Control Board Location
g006594
TX-CB-1
TX-CB-0
CB 0
CB 1
TX Matrix rear
TX Matrix Plus front
Each Control Board requires that a Routing Engine be installed in the adjacent slot. CB0
installs above RE0, and CB1 installs below RE1. A Control Board does not function if no
Routing Engine is present in the adjacent slot.
If two Control Boards are installed, one functions as master and the other acts as backup.
If the master Control Board fails or is removed, the backup restarts and becomes master.
The Control Boards are hot-pluggable.
Related
Documentation
Checklist for Monitoring the Control Board on page 381•
Monitor the Control Board Status
To check the Control Board status:
1.
Check the Control Board Environmental Status on page 388
2.
Check the Control Board Status from the Craft Interface on page 389
Check the Control Board Environmental Status
Purpose To check the Control Board environmental status for each Control Board installed in the
router chassis.
Action To check the Control Board environmental status, use the following command:
Copyright © 2012, Juniper Networks, Inc.388
M Series and T Series Routers Monitoring and Troubleshooting Guide
