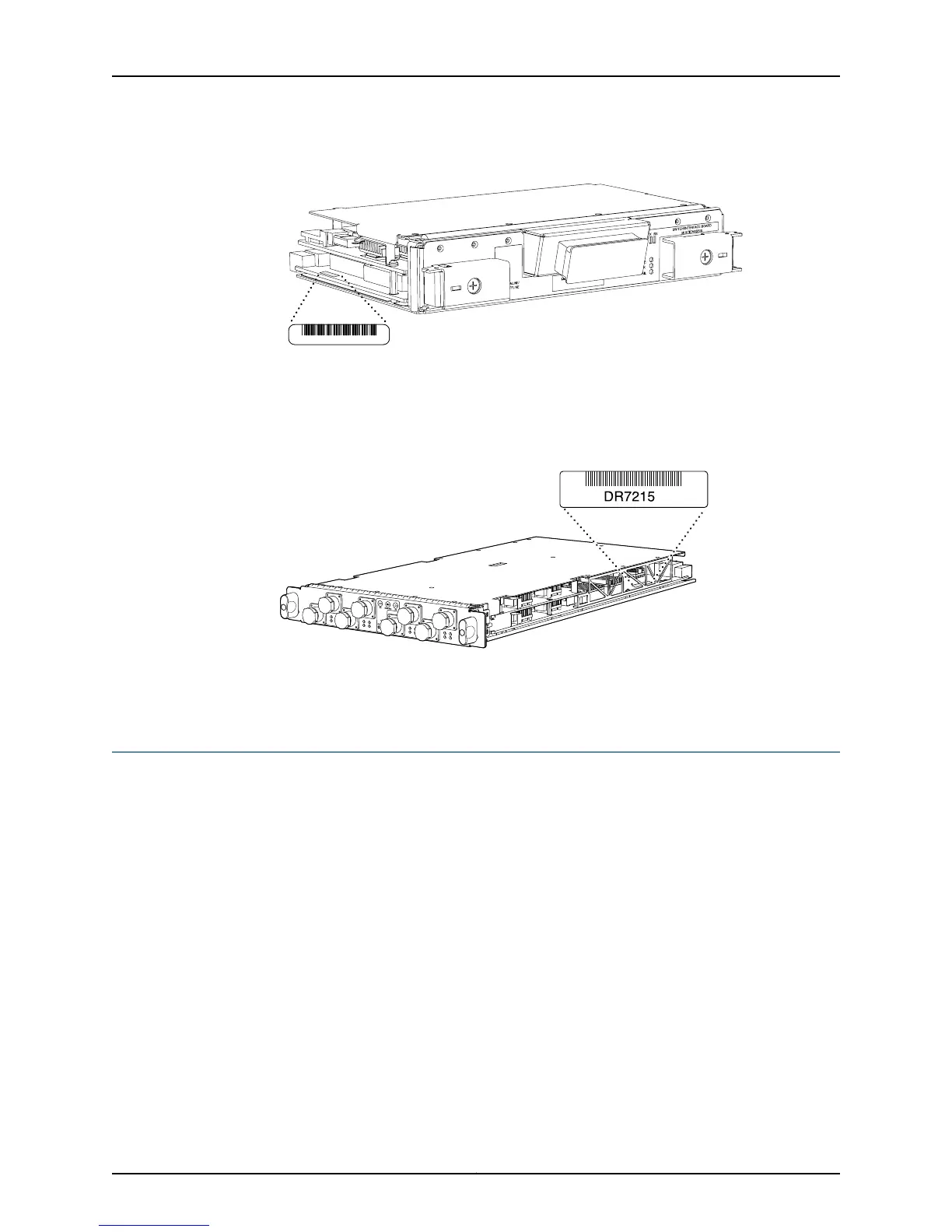

Figure 236: Line-Card Chassis SIB Serial Number Label

A A 0 0 0 0A A 0 0 0 0

g006096

Serial number ID label

On the TX Matrix Plus router, the serial number label is located on the top of the right

side of the SIB (see Figure 237 on page 431).

Figure 237: TX Matrix Plus Router TXP-F13 Serial Number ID Label Location

g004582

Serial number ID label

Documentation

Monitoring the SIBs on page 413•

Returning the SIB

To return a failed SIB, see “Return the Failed Component” on page 116 or the appropriate

router hardware guide.
