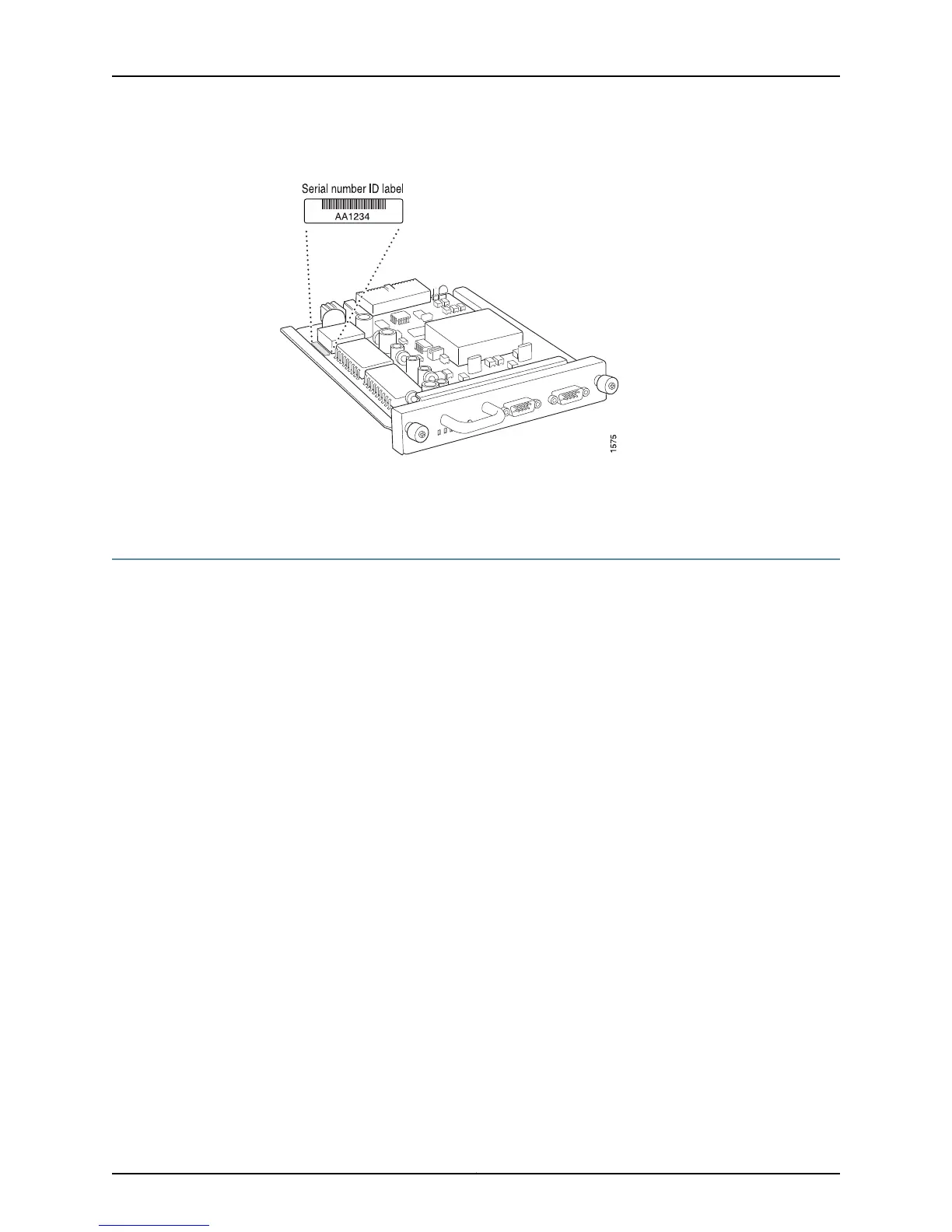

Figure 224: Serial Number Label on the SCG

Documentation

Checklist for Monitoring the SCG on page 401•

Return the SCG

The SCGs are hot-pluggable. If both SCGs are installed and functioning normally, SCG0

is master and SCG1 is backup. Removing the backup SCG does not affect the functioning

of the router. Taking the master SCG offline might result in a brief loss of SONET clock

lock while the backup SCG becomes master.

To return an SCG, see the appropriate router hardware guide.

Documentation

• Checklist for Monitoring the SCG on page 401
