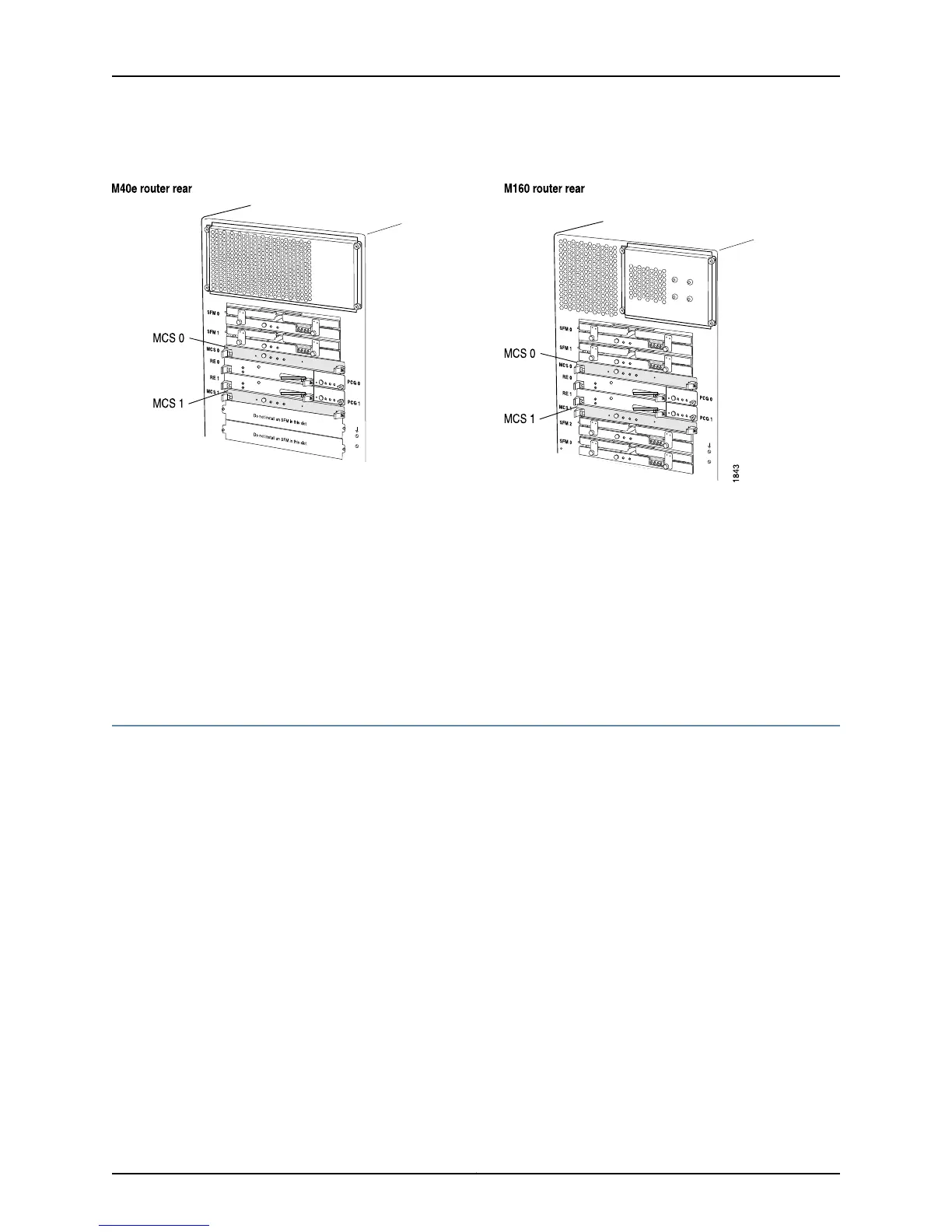

Figure 247: M40e and M160 Router MCS Location

Documentation

Checklist for Monitoring the MCS on page 455•

Check the MCS Status

To check the MCS status:

Check the MCS Environmental Status on page 457

Check the MCS Status from the Craft Interface on page 458

Check the MCS LEDs on page 459

Check the MCS Environmental Status

Purpose To obtain information about the MCS environmental status.

Action To check the MCS environmental status, use the following command:

user@host> show chassis environment mcs

Sample Output

user@host> show chassis environment mcs

MCS 0 status:

State Online Master

Temperature 43 degrees C / 109 degrees F

Power:

Chapter 19: Monitoring the MCS
