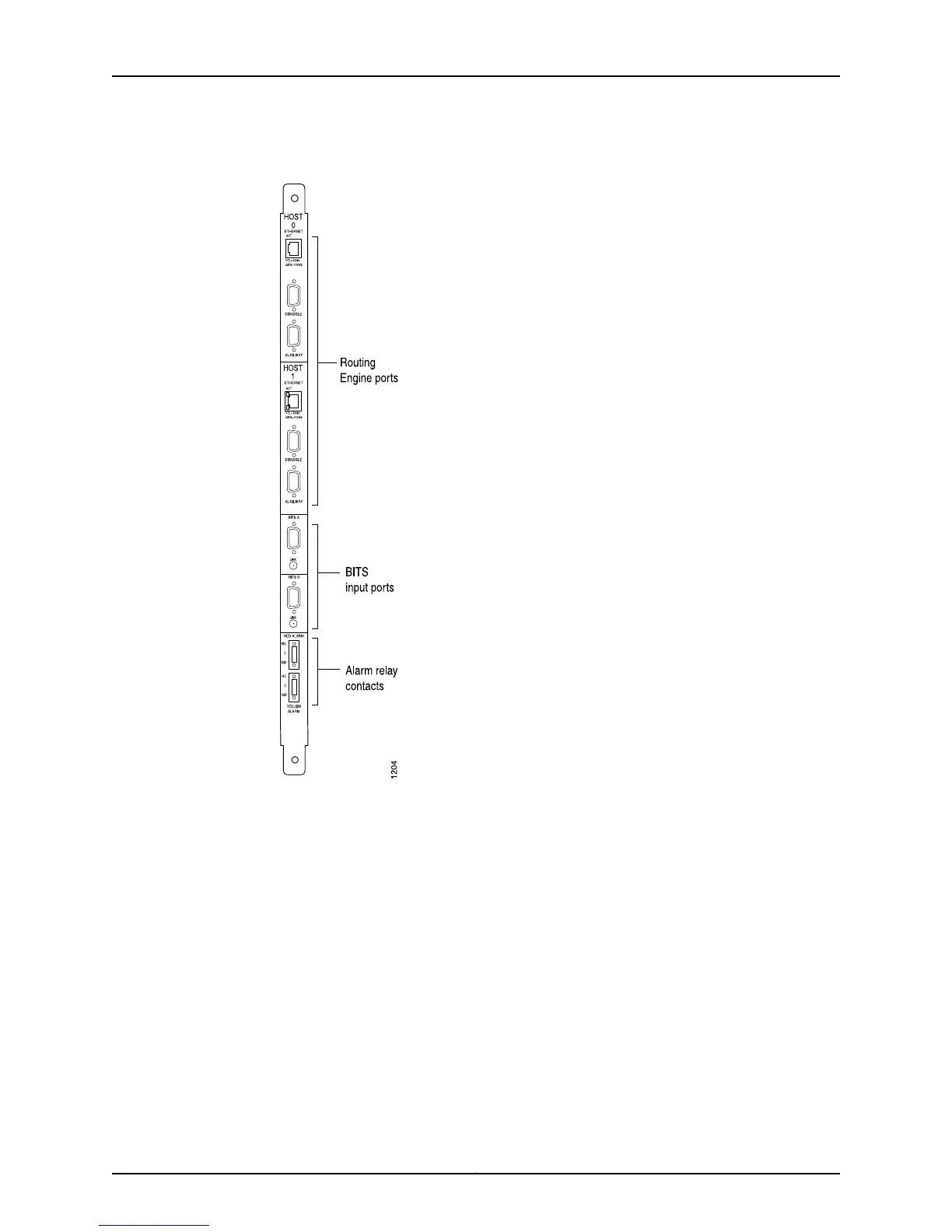

Figure 255: CIP Component
The CIP has two sets of ports you use to connect the Routing Engines to external
management devices. From these management devices, you can use the CLI to configure
and monitor the router.
The upper set of ports, labeled HOST0, connect to the Routing Engine in slot RE0, and
the lower set of ports, labeled HOST1, connect to the Routing Engine in slot RE1.
Each HOST port set includes the following ports:
•
ETHERNET—Connects the Routing Engine through an Ethernet connection to a
management LAN (or any other device that plugs into an Ethernet connection) for
out-of-band management. The port uses an autosensing RJ-45 connector to support
both 10-Mbps and 100-Mbps connections. Two small LEDs on the left edge of the port
indicate the connection in use: the yellow LED lights for a 10-Mbps connection and the
green LED lights for a 100-Mbps connection.
481Copyright © 2012, Juniper Networks, Inc.
