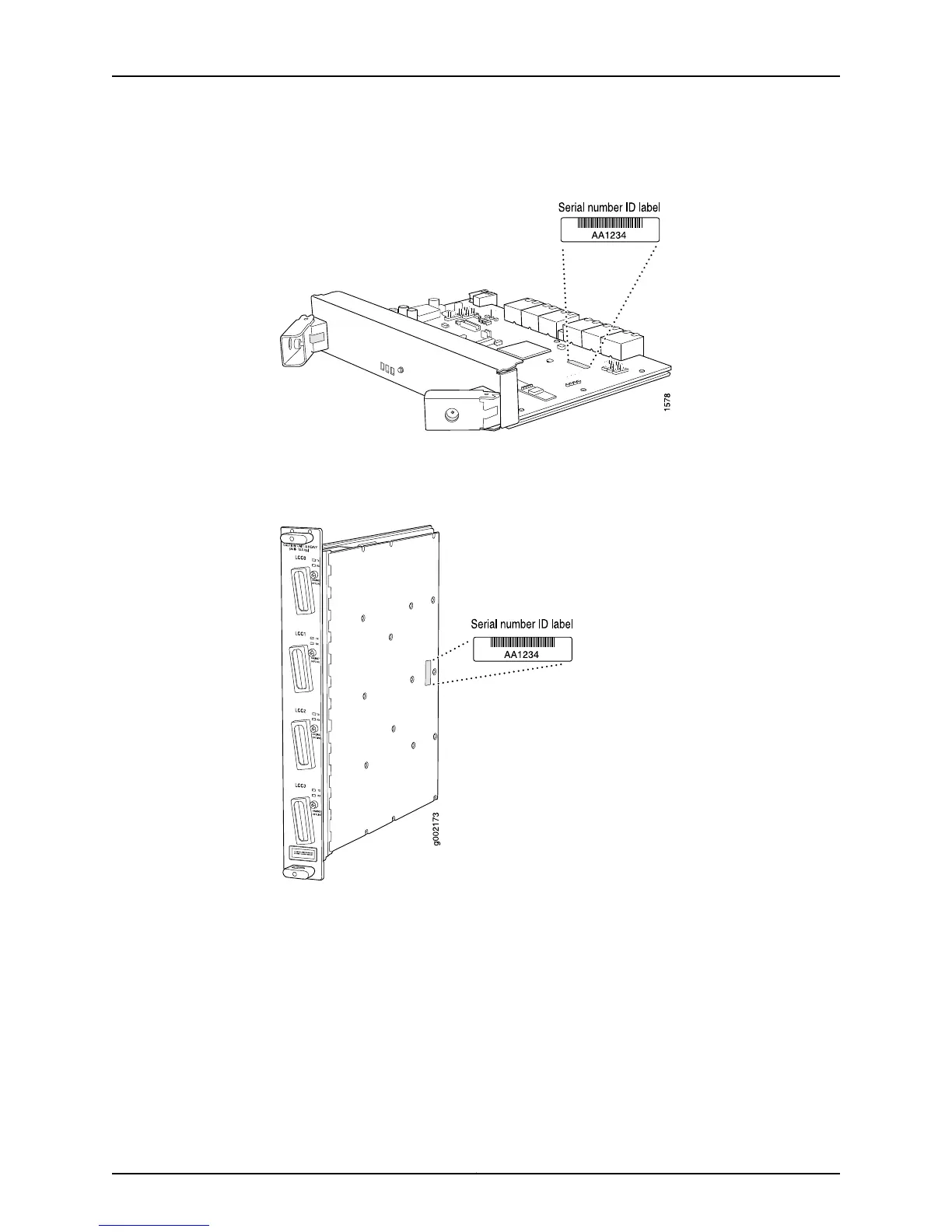

Figure 234: T1600 Router Standard SIB and SIB Version B Serial Number
I D Label Location
On the TX Matrix router, the serial number label is located on the top of the right side of
the TX-SIB (see Figure 235 on page 430).
Figure 235: TX Matrix Router TX-SIB Serial Number ID Label Location
For the LCC-SIB in the T640 router connected to a TX Matrix router, the serial number
label is located on the left side of the SIB (see Figure 236 on page 431).
