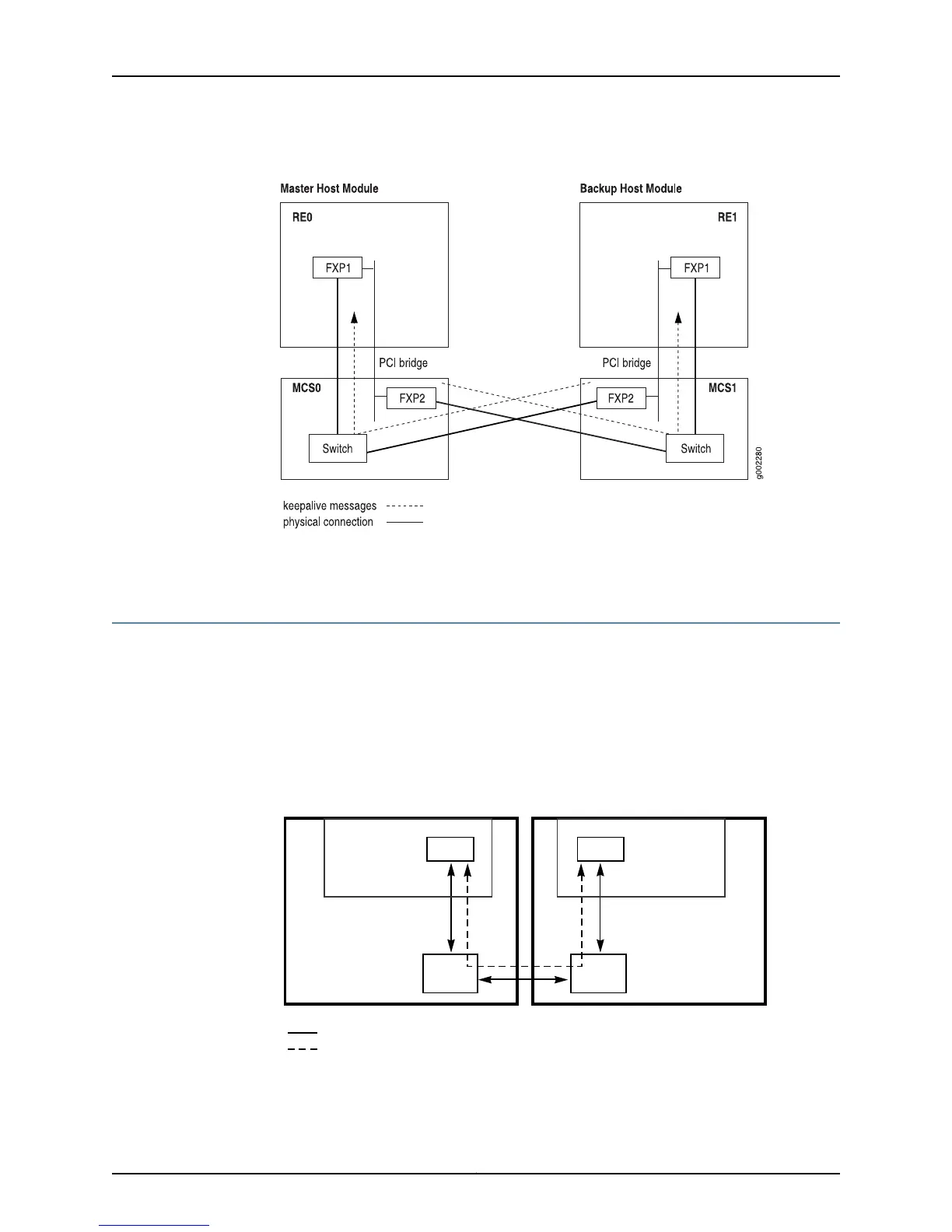

Figure 289: Redundancy Connection for an M40e or M160 Router

Documentation

M40e and M160 Router Redundant Host Modules on page 567•

Redundancy Connection for an M120 Router

Figure 290 on page 573 shows the connection between the master and backup host

subsystems on an M120 router. Keepalive messages are sent from the Routing Engine

to the em0 and also to the other host subsystem via the switch. A keepalive response is

sent back over the switch to the other Routing Engine. In this way, the master and the

backup host subsystems exchange state information.

Figure 290: Redundancy Connection for an M120 Router

g006091

em0 em0

Master Host Subsystem

Backup Host Subsystem

CB0 CB1

Switch

Physical connection

Keepalive

RE0 RE1

Switch

Chapter 28: Host Redundancy Overview
