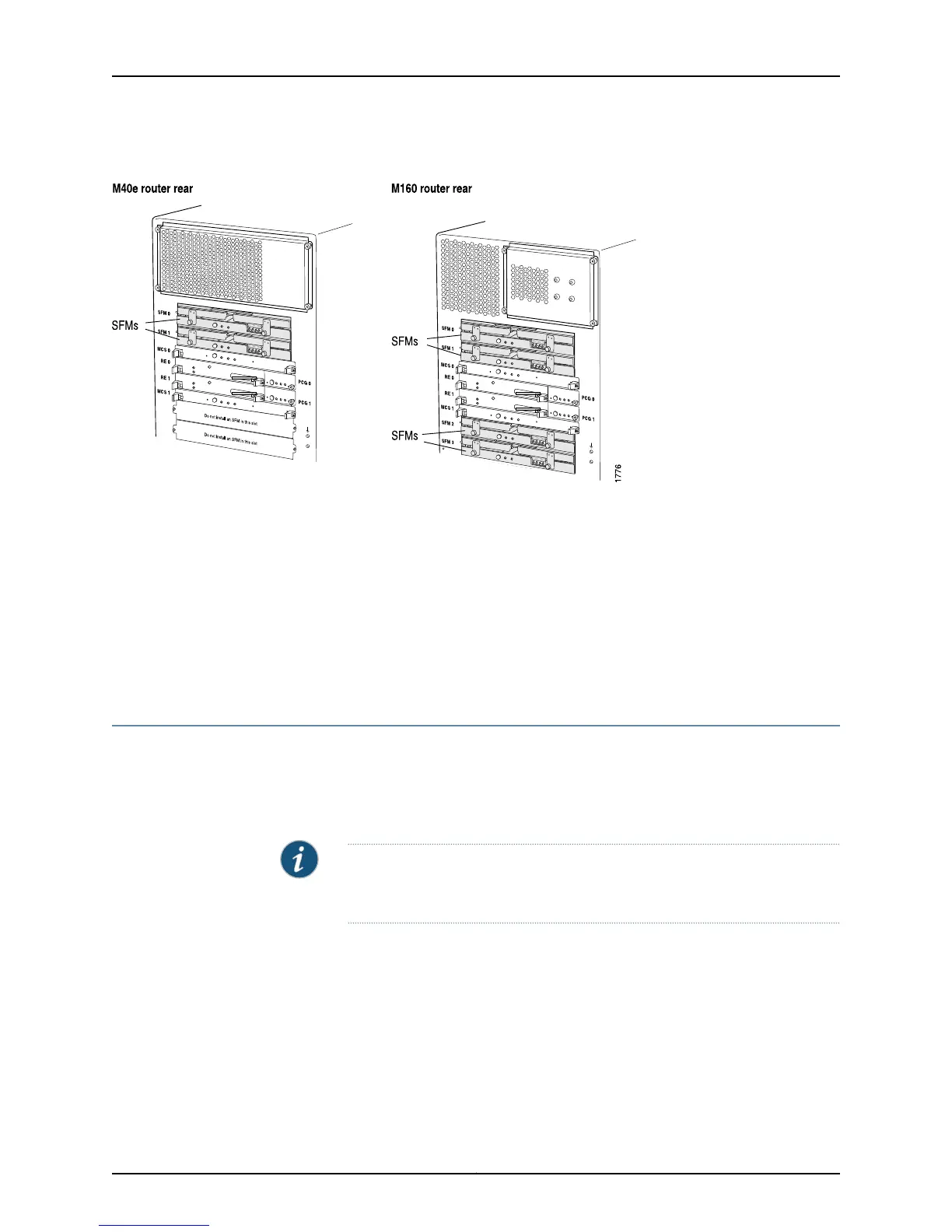

Figure 337: M40e and M160 Router SFM Location

Documentation

Monitoring Redundant SFMs on page 683•

Check M40e Router Redundant SFM Configuration

Purpose You can configure which SFM is the master and which is the backup. By default, the SFM

in slot 0 is the master and the SFM in slot 1 is the backup. You can modify the default

configuration by including the sfm statement at the [edit chassis redundancy] hierarchy

level.

NOTE: We recommend that both Routing Engines have the same

configuration.

Action To display the current SFM redundancy configuration:

1. Enter configuration mode using the following command:

user@host# configure

2. Go to the [edit chassis redundancy] hierarchy level.

3. Show the SFM configuration using the following command:

user@host# show
