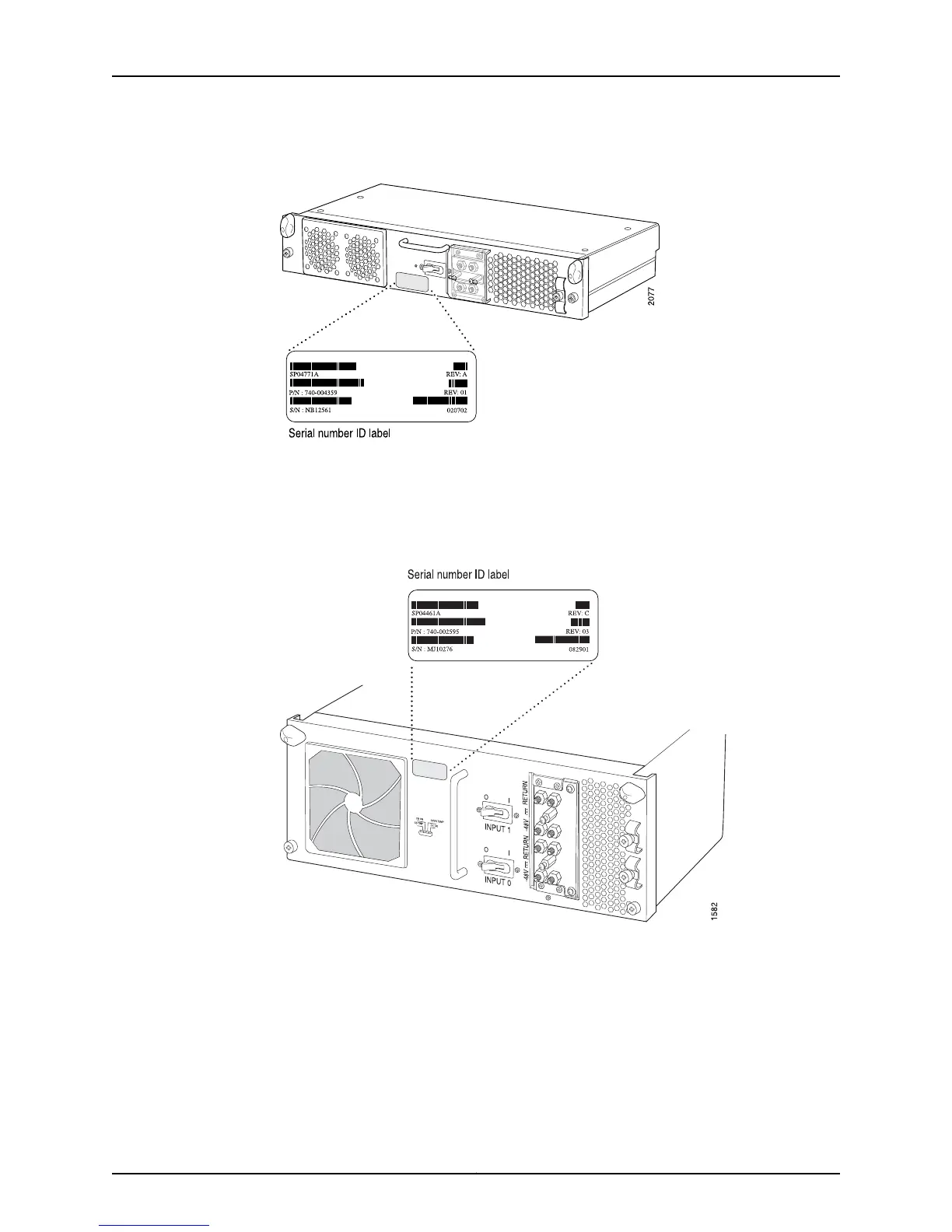

Figure 151: T320 Router DC Power Supply Serial Number ID Label
Figure 152 on page 315 shows the location of the DC power supply serial number ID label
for the T640, T1600, and TX Matrix routers. The serial number ID label is located on the
left side of the power supply faceplate.
Figure 152: T640, T1600, and TX Matrix Router DC Power Supply Serial
Number Label
Figure 153 on page 316 shows the location of the DC power supply serial number ID label
for the TX Matrix Plus router. The serial number ID label is located on the left side of the
power supply faceplate.
315Copyright © 2012, Juniper Networks, Inc.
Chapter 10: Monitoring Power Supplies
