5-2 Common Function Setting
- SV Series User’s Manual -
COMMON PARAMETER SETTING
5

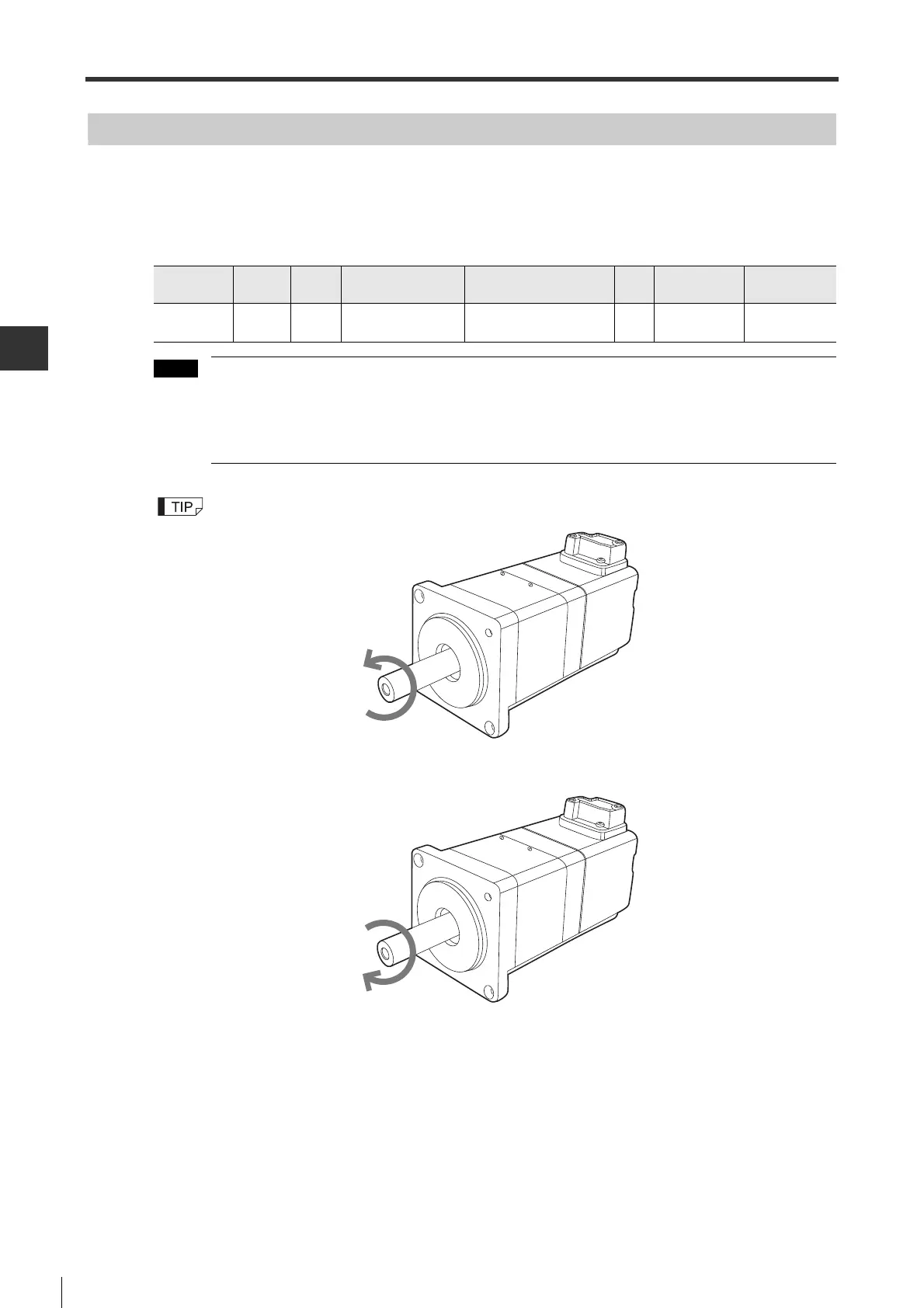

Rotation Direction Setting
To change servo motor rotation direction based on command without changing polarity of the pulse command or
analog voltage command.
Rotation direction can be set through a parameter.
• Be sure to set the rotation direction to CCW when the MECHATROLINK-II type servo amplifier is used in
combination with KV-ML16V. If it is changed, then it is not possible to operate normally.
• When the command value of higher-level equipment is fixed, only rotation direction will be change according
to the setting of SYS_05. Encoder pulse output or analog monitor signal etc. will not change.
• CCW : Rotation of motor shaft counter-clockwise seen from the motor shaft end is called "CCW".
• CW : Rotation of motor shaft clockwise seen from the motor shaft end is called "CW".
Parameter
type
Category Level Parameter name Setting range
Setting
unit
Default
Enable
timing
SYS_05 System Basic
*Motor rotate
direction
0: CCW
1: CW
-0
After power is
ON
Note
