5-12

5-2 Common Function Setting

- SV Series User’s Manual -

COMMON PARAMETER SETTING

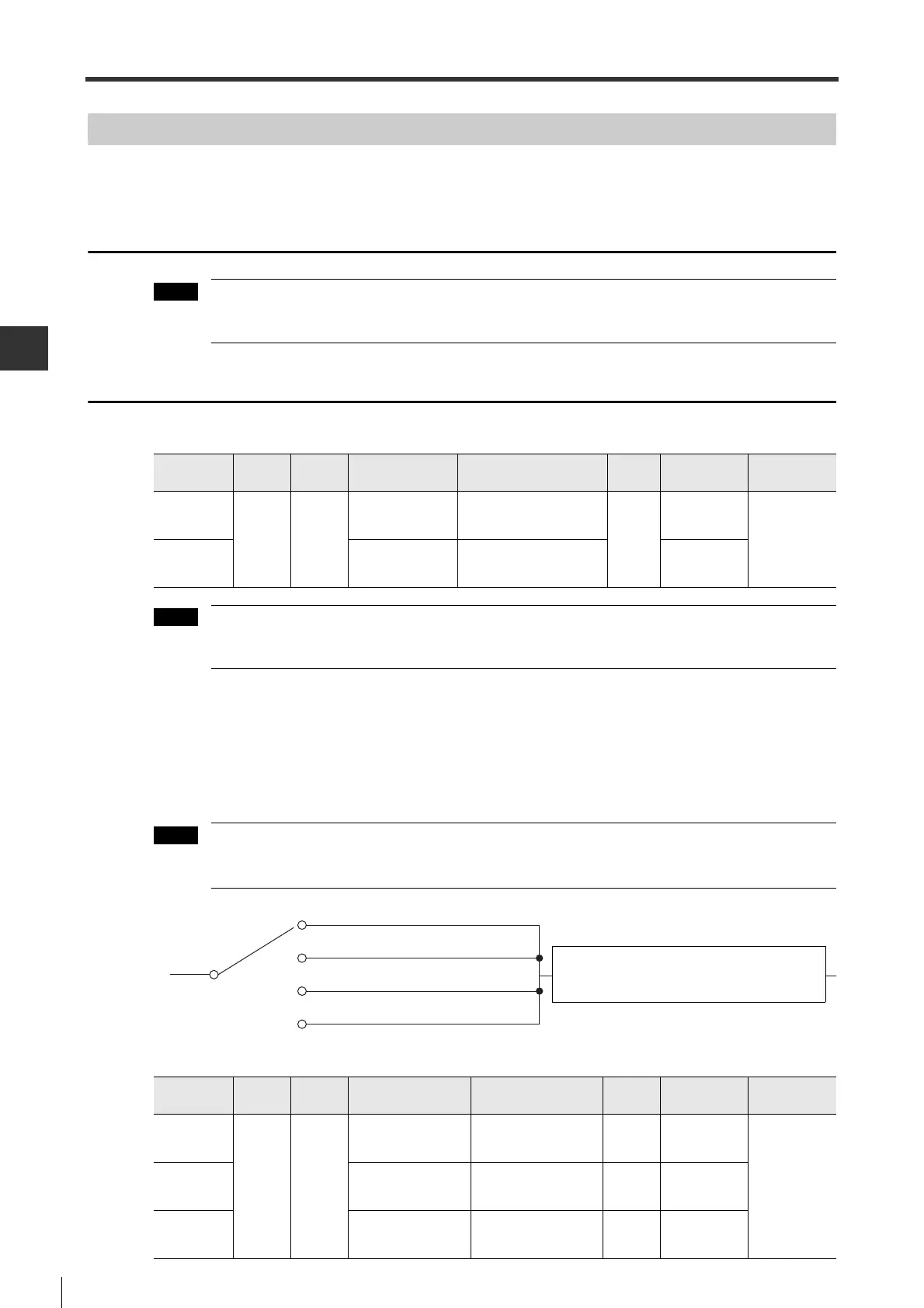

Electric Gear Setting (Position Control Mode)

A position command from the higher-level equipment will be sent to the servo motor after being converted through a

electric gear ratio.

MECHATROLINK-II type

When the MECHATROLINK-II type servo amplifier is used in combination with KV-ML16V, be sure to set

the electric gear to 1:1. If it is changed, then it is not possible to operate normally.

Pulse/analog input type

To set up electric gear through parameter.

Be sure to set the electric gear within the range of 0.001 ≦electric gear ratio (POS_02/POS_03) ≦4000.

The "*Parameter setting error 0" alarm (040) will occur when it exceeds the setting range.

■ Electric gear multi-factor switching

The pulse/analog input type servo amplifier can switch the electric gear according to result of the electric gear

multiplied by set multi-factor through the "Electric gear switching 1 (GEAR1)"/"Electric gear switching 2 (GEAR2)"

input. If this function is used, then the servo amplifier can control 4-level switching speed for a specific frequency input

from the higher-level equipment.

Since the electric gear numerator multi-factor parameter will be enabled once it is changed, so the servo motor

may operate fast.

The electric gear switching can be set through a parameter.

Important

Parameter

type
