5-15
5-2 Common Function Setting
COMMON PARAMETER SETTING
- SV Series User’s Manual -

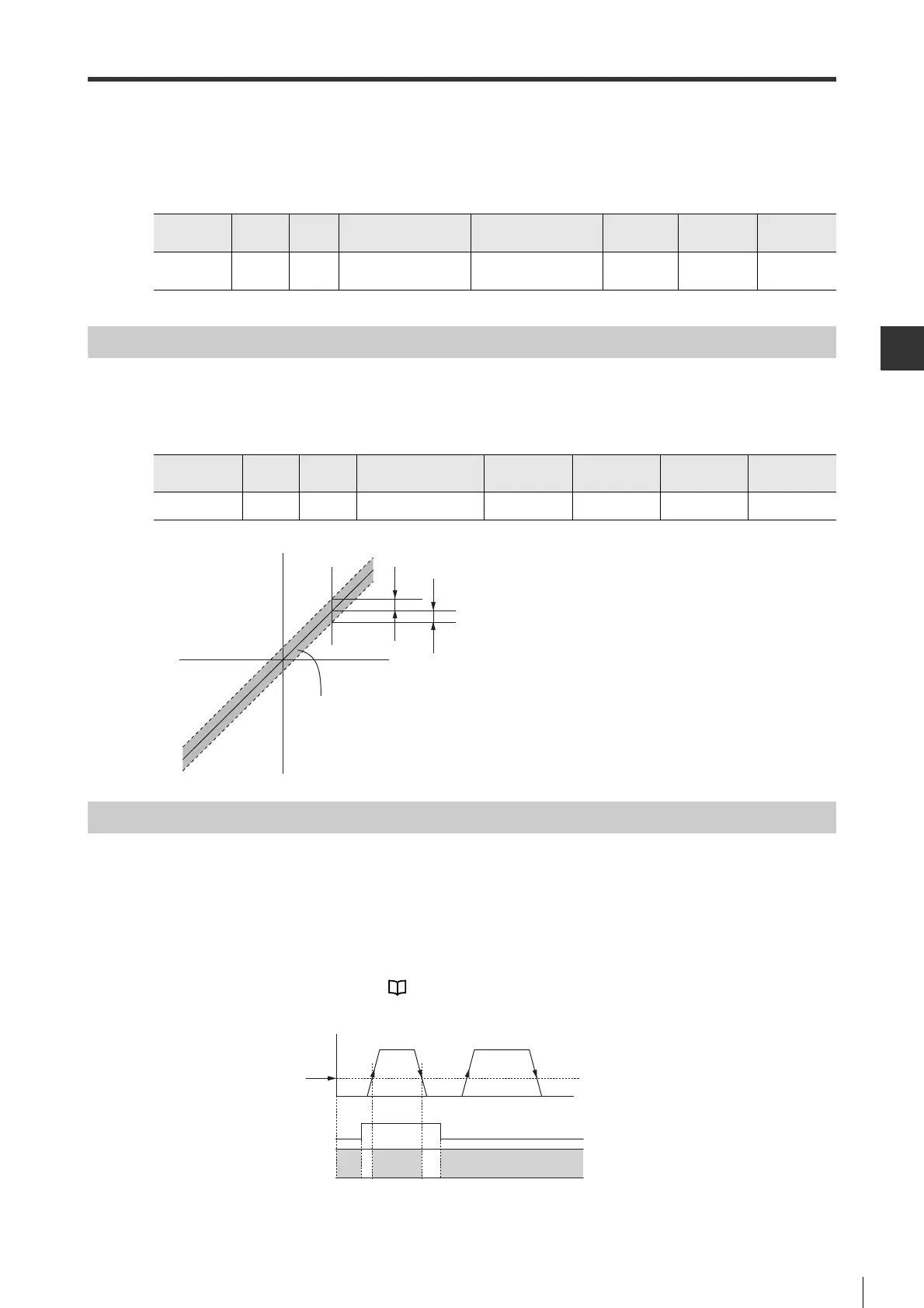

■ Deviation excessive warning
If a warning is detected before a deviation excessive alarm occurs, then adjust the motor load and command to
prevent motor stop.
Proportion of a deviation excessive alarm level can be set through a parameter.
Speed Match Signal (Speed Control Mode)
If difference between the servo motor speed and the command speed is smaller than the "Speed match range"
(VEL_04), then the "Speed match (VCMP)" signal will be output.
Detection width of the speed match signal can be set through a parameter.
Zero Clamp Setting (Speed Control Mode)
When "Zero clamp (ZCLAMP)" input is ON, and value of the speed command (V-REF/internal speed command 1-7) is
smaller than the speed set by "Zero clamp speed" (VEL_14), servo will be locked and the speed command will be disabled.
The servo motor will be locked within ±1 pulse of the zero clamp enabled position, and will remain in locked position
even under external force.
If the motor vibrates at zero clamp, be sure to adjust the position control gain.
When the zero clamp function is used, be sure to assign the "Zero clamp (ZCLAMP)" function to the input terminal.
For assignment of input terminals, see "5-3 I/O Signal Setting", Page 5-18.
Parameter
type
Category
Level Parameter name Setting range
Setting
unit
Default
Enable
timing
ALM_06 Alarm
Extend
Deviation excessive
waring level
10 to 100 % 100
After
changing
Parameter
type
Category
Level Parameter name
Setting
range
Setting unit Default
Enable
timing
VEL_04 Speed Basic Speed match range 0 to 100 min
-1
10 After changing
VEL_04
VEL_04
Command speed
Output VCMP
within the range.
Motor rotation speed
"V-REF" speed command
Speed
ON
OFF
Time
"Zero clamp speed"
(VEL_14)
"Zero clamp (ZCLAMP)" input
Zero clamp function
Disable
Disable
Disable
Enable
Enable
