8-1 Tuning Overview and Operations
TUNING
8
- SV Series User’s Manual -
Tuning Steps

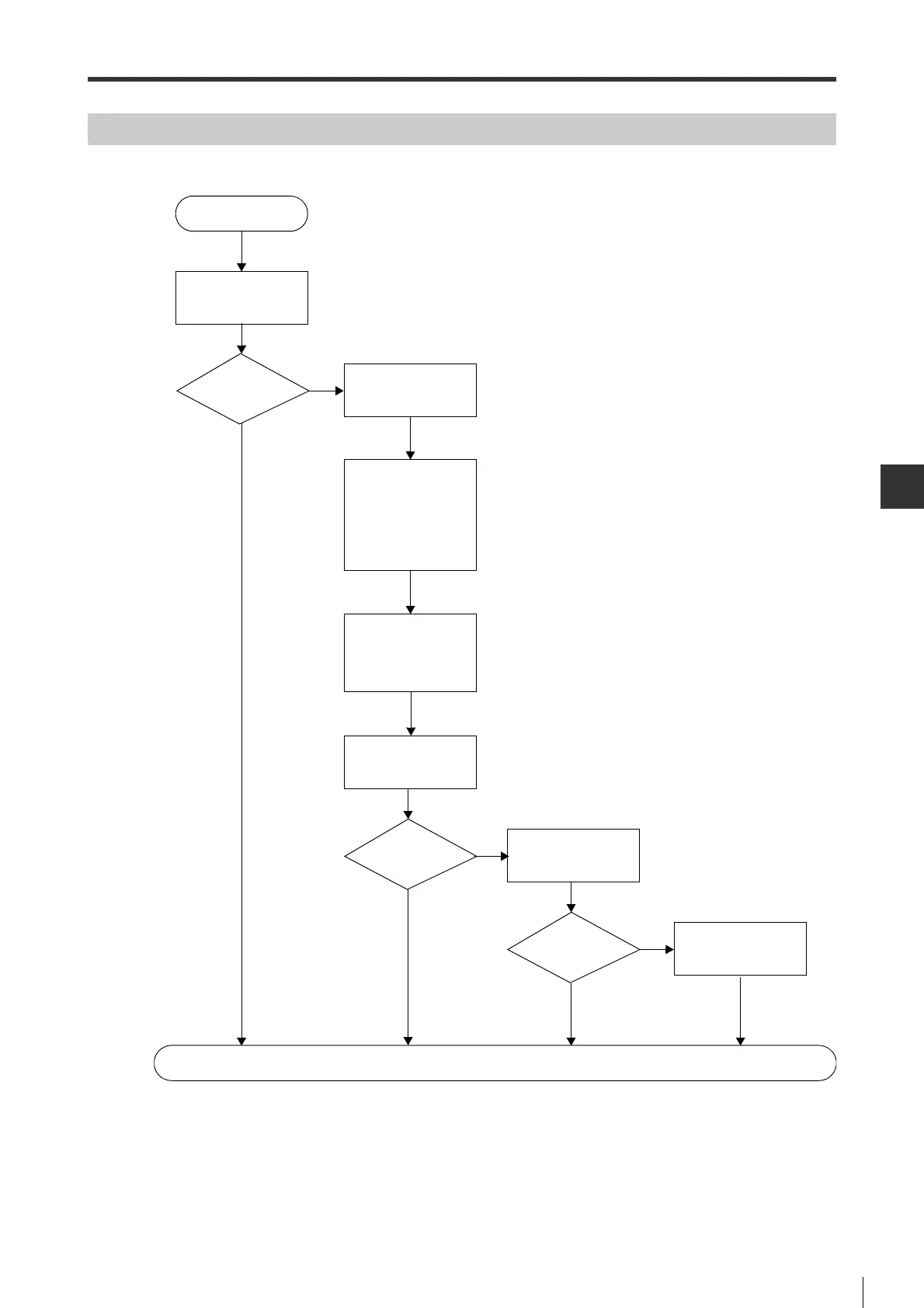

Tuning steps are shown in the flow chart.
Start
Adjust via
auto tuning
Is the
result OK?
Auto tuning parameter
mapping
Change tuning mode
to manual tuning,
power supply of servo
amplifier ON again
Estimation of ratio of
inertia moment, or set
moment of inertia ratio
Execute adjustment
via Gain search PRO
Is the
result OK?
Execute adjustment
via Gain tuning PRO
Is the
result OK?
Manually set up the gain
related parameters
Complete
NO
YES
NO
YES
NO
YES
