A-5MECHATROLINK-II Communication Commands
APPENDIX
- SV Series User’s Manual -
■The corresponding between main and sub commands
A sub command is enabled only for a specific main command.The main commands and the corresponding sub
commands are listed as follows.

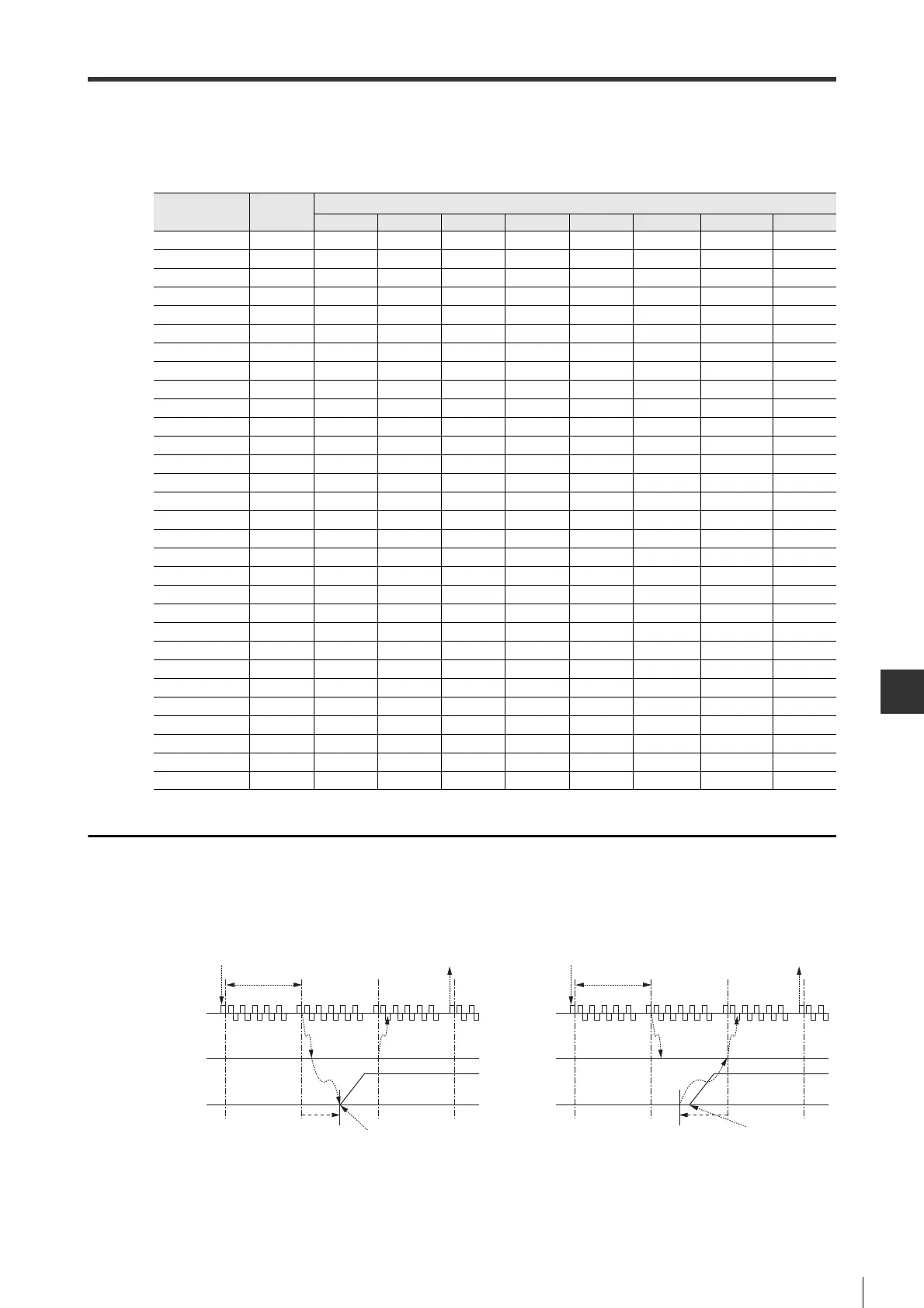

Command/Response Timing Chart
When master station sends a command to slave station, the timing for command execution by slave station and
monitoring data input of master staion is as follows. The timing is a fixed one irrespective of communication period
and transmission period.
Command
Command
code
Sub command
NOP PRM_RD PRM_WR ALM_RD PPRM_WR LTMOD_ON LTMOD_OFF SMON
NOP 00H
○○○○○ ○ ○ ○
PRM_RD 01H
○×××× × × ○
PRM_WR 02H
○×××× × × ○
ID_RD 03H
○○○○○ ○ ○ ○
CONFIG 04H
○×××× × × ○
ALM_RD 05H
○×××× × × ○
ALM_CLR 06H
○×××× × × ○
SYNC_SET 0DH
○×××× × × ○
CONNECT 0EH
○×××× × × ×
DISCONNECT 0FH
○×××× × × ×
PPRM_WR 1CH
○×××× × × ○
POS_SET 20H
○×××× × × ○
SENS_ON 23H
○×××× × × ○
SENS_OFF 24H
○×××× × × ○
HOLD 25H
○○○○○ ○ ○ ○
LTMOD_ON 28H
○×××× × × ○
LTMOD_OFF 29H
○×××× × × ○
SMON 30H
○○○○○ ○ ○ ○
SV_ON 31H
○○○○○ ○ ○ ○
SV_OFF 32H
○○○○○ ○ ○ ○
INTERPOLATE 34H
○○○○○ ○ ○ ○
POSING 35H
○○○○○ ○ ○ ○
FEED 36H
○○○○○ ○ ○ ○
LATCH 38H
○○○○○ × × ○
EX_POSING 39H
○○○○○ × × ○
ZRET 3AH
○○○○○ × × ○
VELCTRL 3CH
○○○○○ ○ ○ ○
TRQCTRL 3DH
○○○○○ ○ ○ ○
ADJ 3EH
○×××× × × ○
SVCTRL 3FH
○○○○○ × × ○
Execute timing for command data
Command Response Response
Receive Send
< 312.5µs Motor startsMotor starts
Transmission period
Master station
send
Motor starts
Slave station
send
Input timing for monitored data
Command
Receive Send
< 312.5µs
Transmission period
Master station
send
Motor starts
Slave station
send
