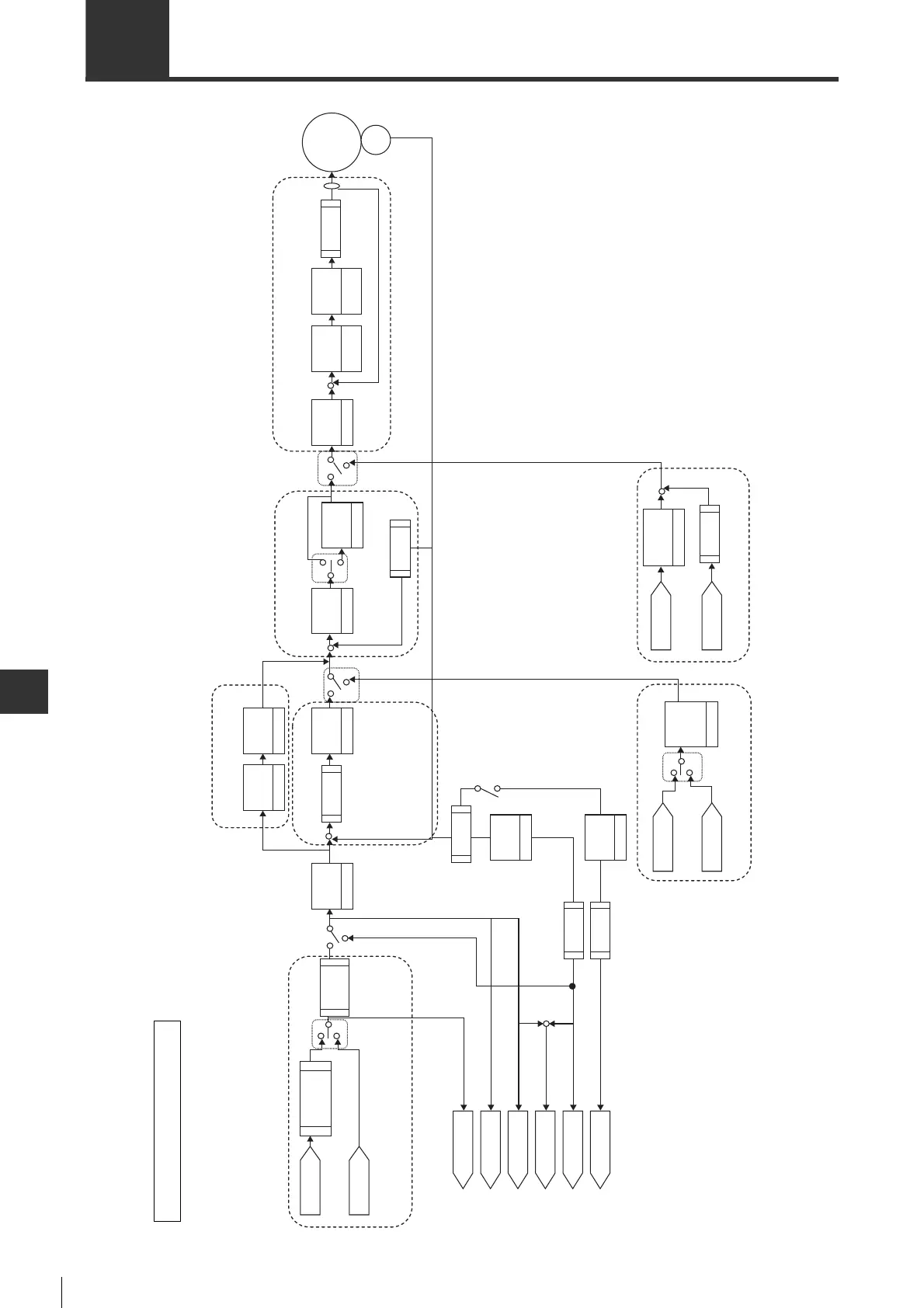

A-3 Control Block Diagram
++
+
POSING system
INTERPOLATE
system
Acceleration/
deceleration
pattern processing
Switching
Acceleration/
deceleration
filter
IPOS (internal
command position)
POS (command
position)
MPOS (command
position)
PERR (command
deviation)
APOS (Feedback
position)
LPOS
(latch position)
Tracing
Coordinate
transformation
Coordinate
transformation
POS_02/03
1/electronic
gear
POS_02/03
accumulate
Latch signal
POS_02/03
Electronic
gear
Position control section
Deviation
counter
Position
Gain
TUN_04
Feedforward section
Feedforward
gain
Feedforward
LPF
TUN_09 TUN_10
Position/
speed
switching
Speed command
I/O signal
Soft start
acceleration/
deceleration
time
VEL_02/03
Speed command switching
Tor que command
Speed limit
Tor que control processing
Speed limit
Speed control section
Speed gain
TUN_05
P/PI switching
Integral
time constant
TUN_06
Speed
conversion
Position/
speed/
torque
switching
+
Tor que control section
Tor que
command
LPF
Notch filter 1 Notch filter 2
TUN_07
TUN_21/23
/25/26/27
TUN_22/24
/28/29/30
Current
PWM control
Servo motor
Encoder
MECHATROLINK-II processing
Tor que command
acceleration/
deceleration time
TRQ_04/05
1/electronic
gear
Speed control processing
MECHATROLINK-II type
