11-1 Access Window Overview
This section gives an overview of the Access Window.
About Access Window
Access Window includes the display screen and the keys below it on the front panel of servo motor. Access Window
is used to display and set up parameters, or display operating staus and alarm messages as well as for trial run and
tuning.

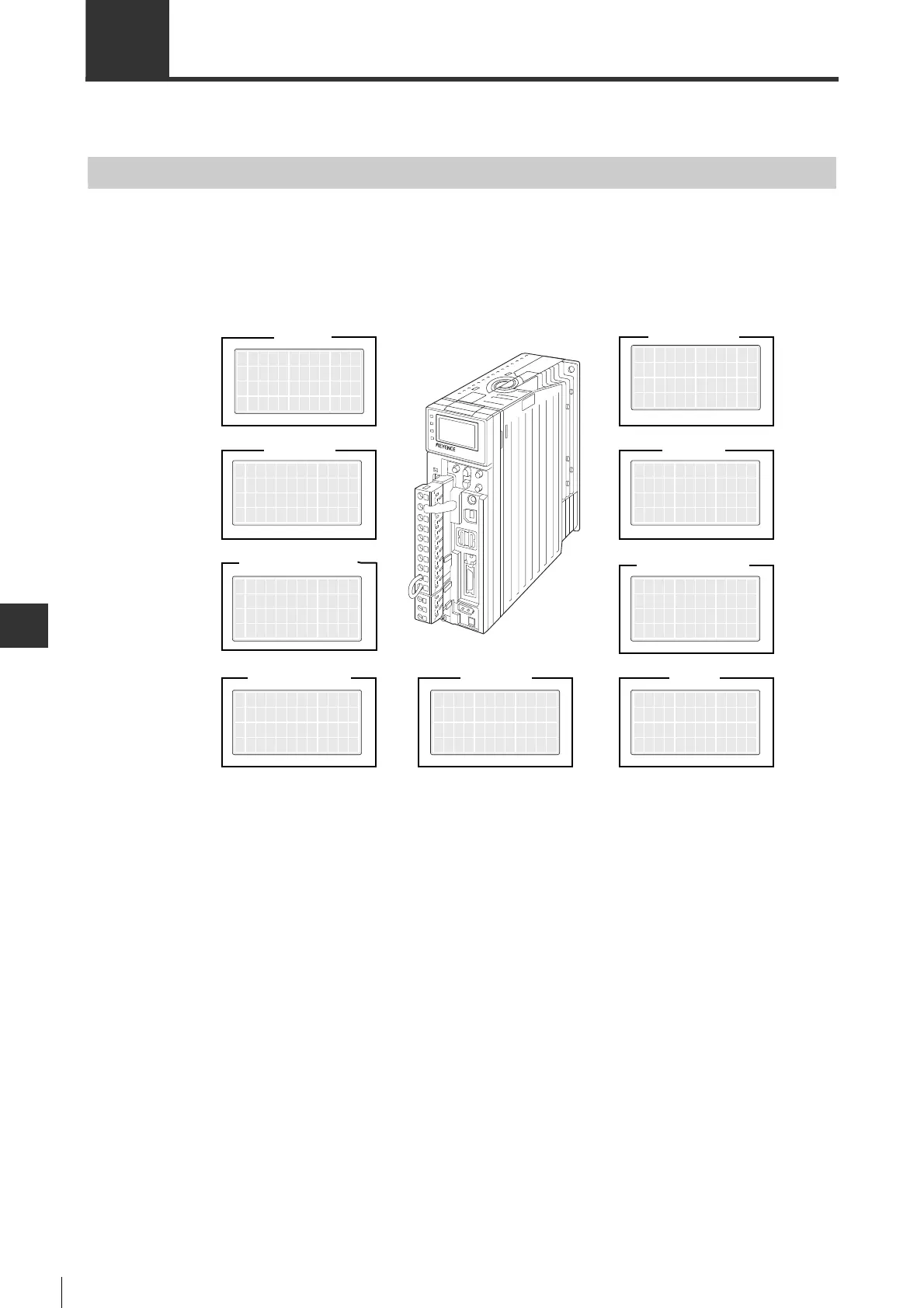

Up to 12 characters x 4 rows can be displayed on the LCD screen. The screen turns green when the unit works
properly and turns red in case of error.
Monitor Tuning
Parameter Alarm
Servo trial run Display setting
Communication setting Tuning Other
1.Servo
2.IN Mon
3.OUT Mon
1.Auto/Manu
2.ClcInertia
3.GainSrchIN
4.GainSrchEX
1.System
2.Position
3.Speed
4.Torque
1.AlmReset
2.ABS Setup
3.AlmRecord
4.AlmRecClr
1.ServoJOG
2.PTN Move
3.Org Search
OTH_12
AW Contrast
1.ComSpeed
2.TransByte
3.StAddress
1.AnalogIN 1.AmpRestart
2.Init Prm
3.MotorModel
* MECHATROLINK-II
type only
* Pulse/analog input type
only
