2-4 Servo Motor Specifications
- SV Series User’s Manual -
CONFIGURATION & SPECIFICATIONS
2

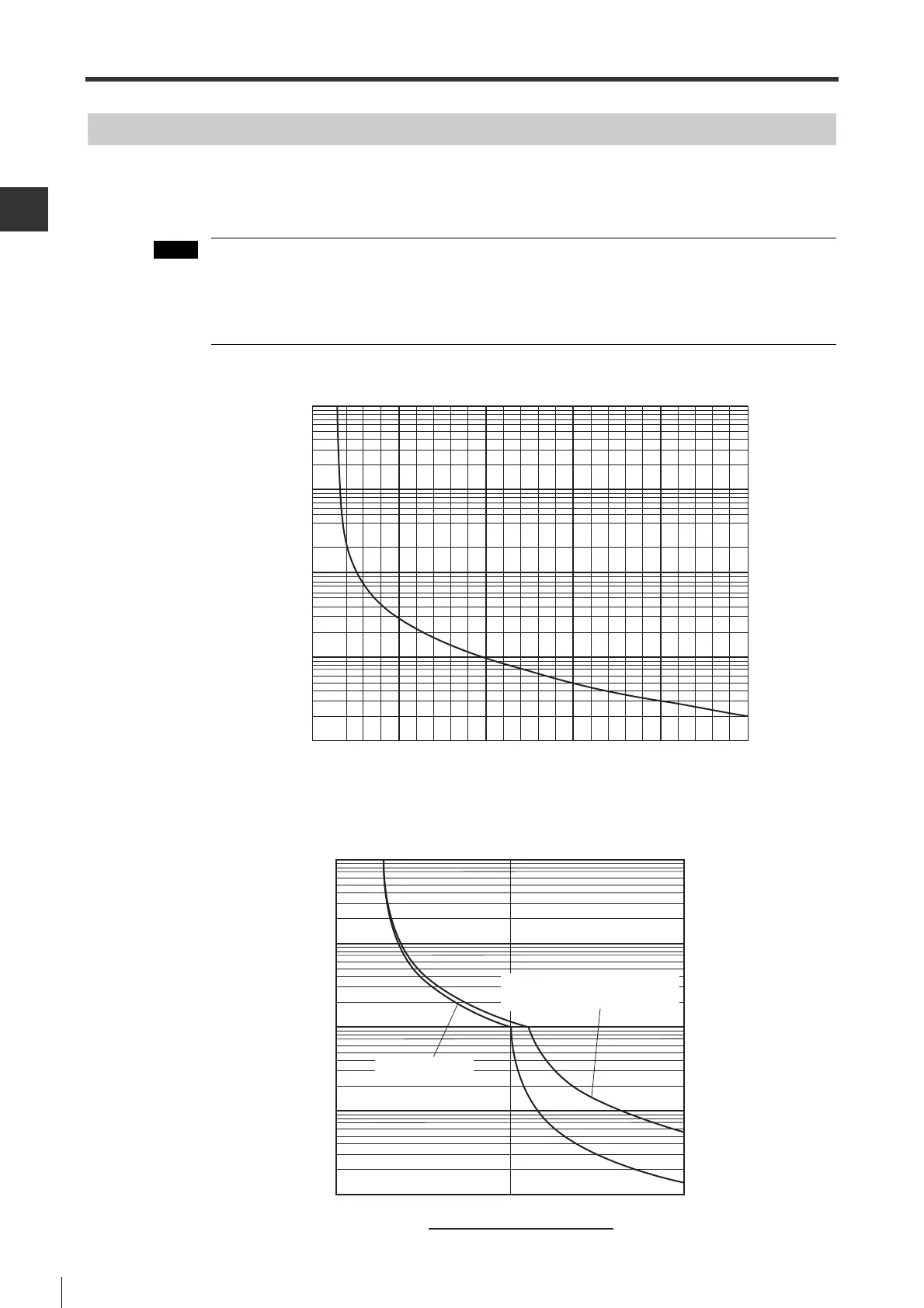

Overload Protection Characteristics
The following are overload detection level characteristics when the ambient temperature is 40°C and using the hot
start setting.
When the detection time is reached, the "Overload (Peak)" Alarm (710) or "Overload (Continuous)" Alarm (720) is issued.
The overload protection characteristics above do not guarantee continuous operation with 100%
or more output.
Use the motor so that the actual torque is within the range of the Operation region for continuous
operation shown in "Torque-rotation Speed Characteristic".
● 50W to 750W
● 1kW to 5kW
Note
350300250200150100
Torque command (rate ratio) (%)
10000
1000
100
10
1
Detection time (S)
Detection time (S)
Approx.
Rated torque Maximum torque
Rated torque + Momentary maximum torque
2
1
10
100
1000
10000
SV-ƶ100Aƶ/ƶ150Aƶ/
ƶ200Aƶ/ƶ300Aƶ
SV-ƶ500Aƶ
