4-4 Wiring Servo Motor
This section describes how to wire motor power cables, encoder cables and electromagnetic brake and how to prepare cables.
Connecting Servo Amplifier and Servo Motor
■ Overview
Servo amplifier and servo motor can be connected with motor power cables and encoder cables.
● Standard motor

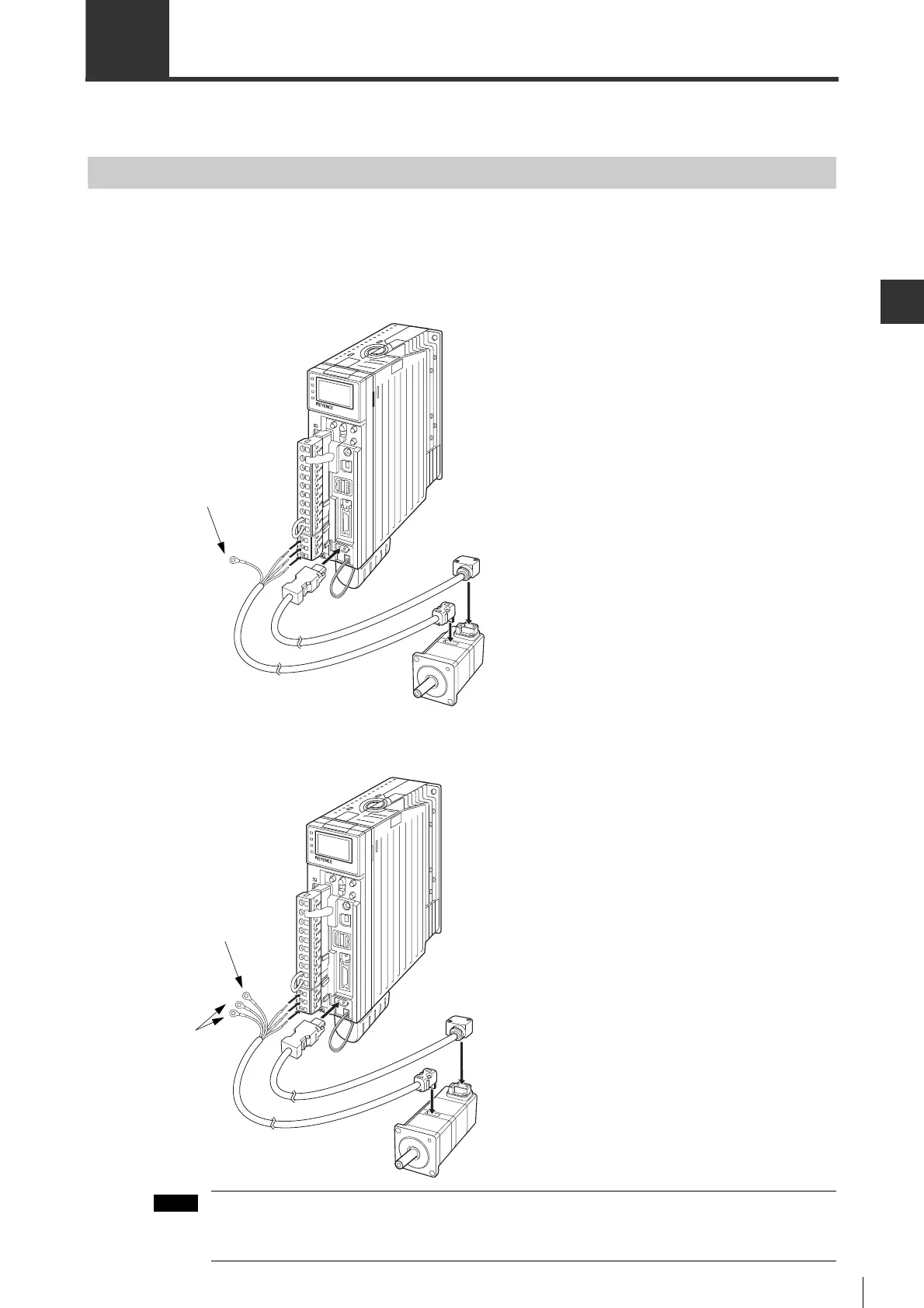

When standard motor is used, please connect servo amplifier and servo motor as the following diagram.
● Electromagnetic brake motor
When motor with electromagnetic brake is used, please connect servo amplifier and servo motor as the following diagram.
Be sure to connect the grounding wire to the protective ground terminal of servo amplifier.
The shape of connectors used for SV- □100A □/ □150A □/ □200A □/ □300A □/ □500A □ servo
motors are different.
SV series
servo amplifier
SV-M
Encoder cable
Motor power cable
Grounding wire
(green)
SV series
servo amplifier
SV-B
Electromagnetic
brake cable
(Black)
Encoder cable
Motor power cable
Grounding wire
(green)
Note
