7-3 Position Control
- SV Series User’s Manual -
PARAMETER SETTING AND OPERATION OF PULSE/ANALOG INPUT
7

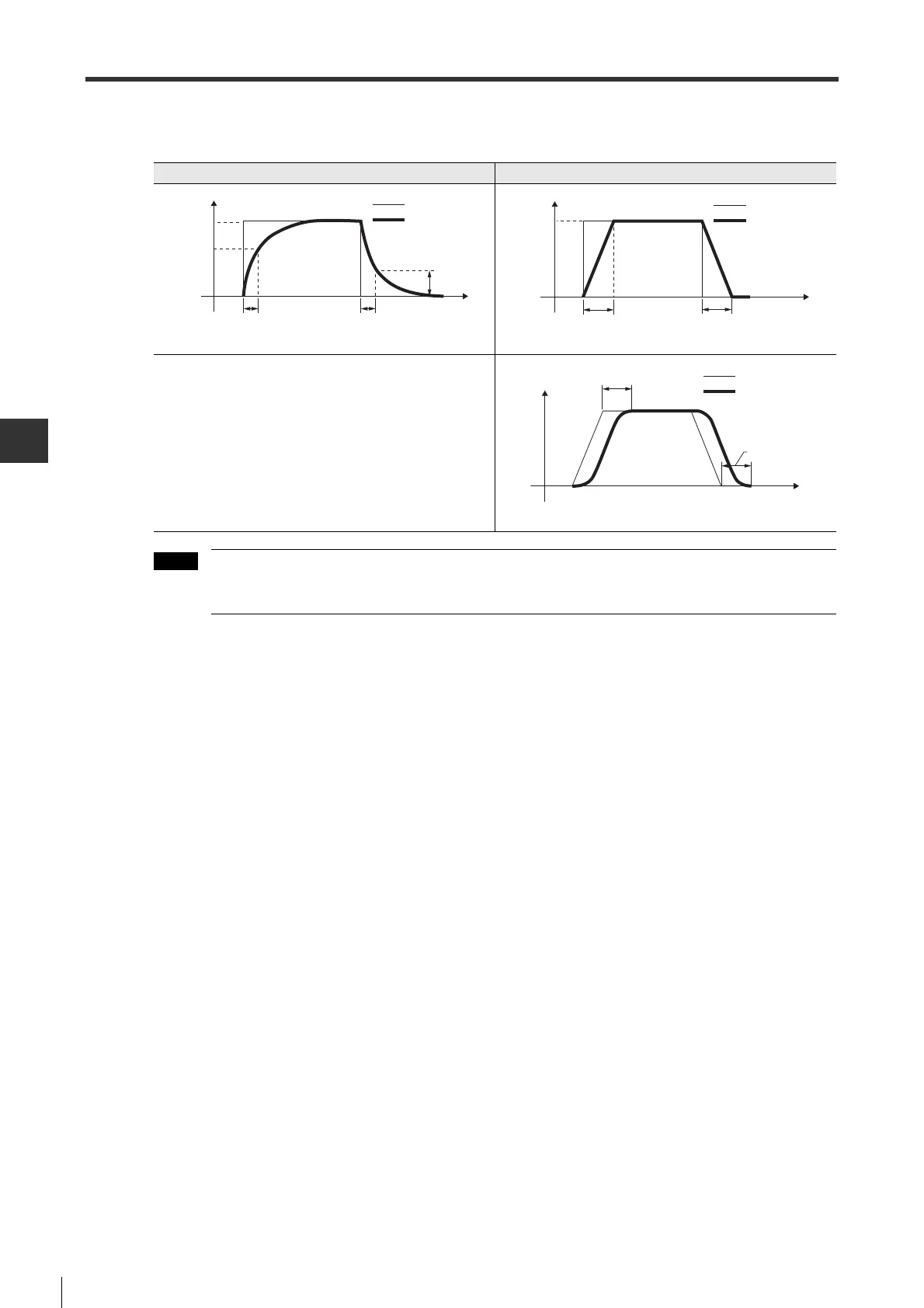

The difference between "Pos cmd accel/decel time constant" (POS_09) and "Average movement time of pos cmd"
(POS_10) is described below.
POS_09/POS_10 is enabled only when the motor is stopped. Even if a change is made during motor
rotation, the change cannot be mapped.
POS_09 POS_10
Response waveform of stepping input
Response waveform of stepping input
Response waveform of trapezoid command input
100%
t
63.2%
36.8%
POS_09 POS_09
Before filtering
After filtering
100%
t
POS_10 POS_10
Before filtering
After filtering
t
POS_10
POS_10
Before filtering
After filtering
