Keyence SV Series User Manual

A-21

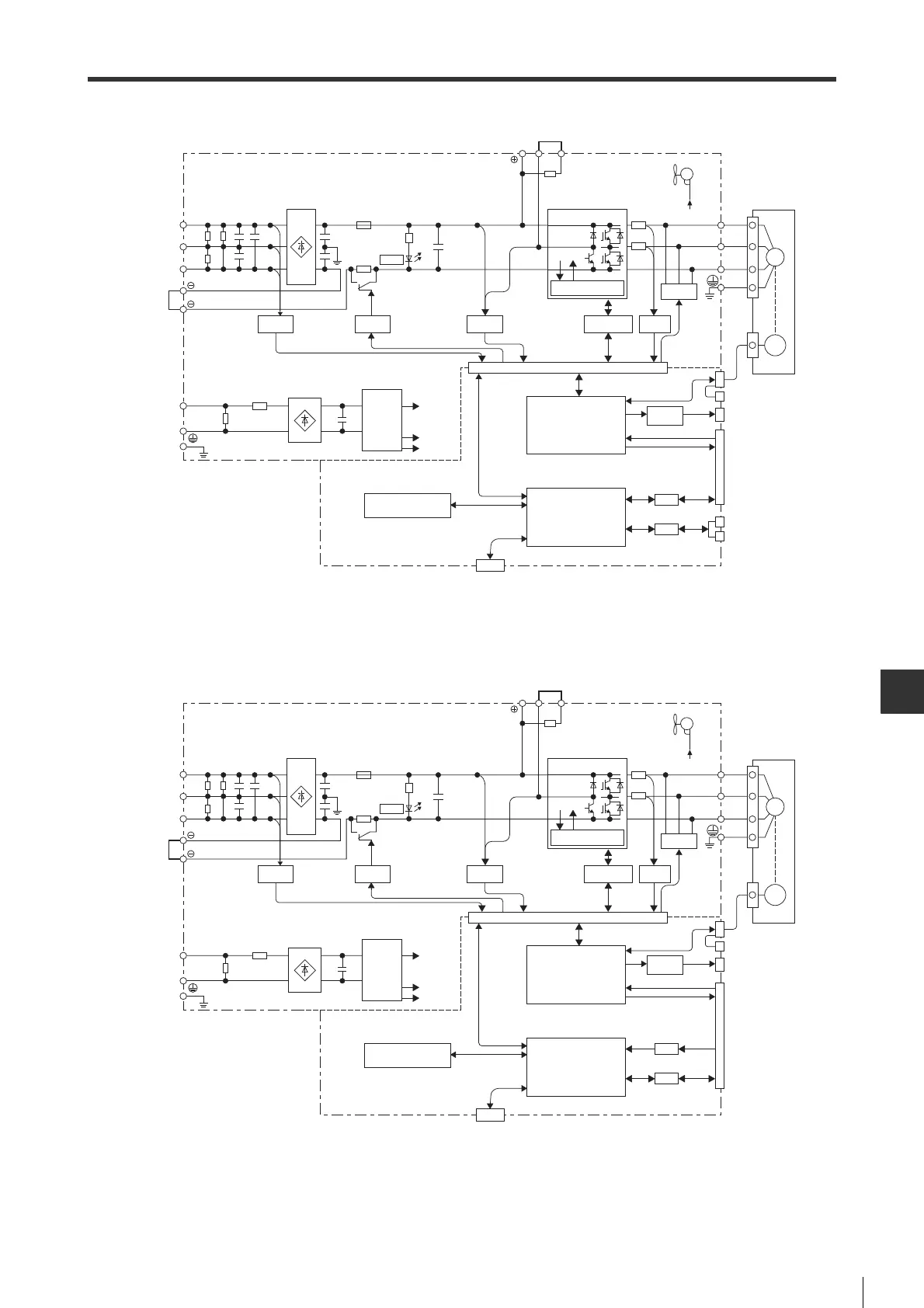

A-2Internal Block Diagram
APPENDIX
- SV Series User’s Manual -
■SV-150L2
■SV-150P2
Voltage
detection
Relay drive
L2C
L1
Varistor
L2
L3
1
2
Dynamic
brake circuit
Overheating protection
Overcurrent protection
Analog
voltage
conversio
ASIC
(PWM control, etc.)
CPU
(For operation of
position, speed, etc.)
Gate drive
overcurrent
protection
Servo motor
Encoder connector
Battery connector
Analog monitor connector
Encoder output pulse
Voltage
detection
Current
detection
Fan
f12V
B2 B3B1/
CHARGE
M
ENC
I/O
I/F
Access window
USB connector
MECHATROLINK connector
Control
supply
+15Vh4
+5V
f12V
+
ˉ
+
ˉ
U
V
W
L1C
Varistor
Voltage
detection
Relay drive
L2C
L1
Varistor
L2
L3
1
2
Dynamic
brake circuit
Overheating protection
Overcurrent protection
Analog
voltage
conversio
ASIC
(PWM control, etc.)
CPU
(For operation of
position, speed, etc.)
Gate drive
overcurrent
protection
Servo motor
Encoder connector
Battery connector
Analog monitor connector
Voltage
detection
Current
detection
Fan
f12V
B2 B3B1/
CHARGE
M
ENC
Access window
USB connector
Control
supply
+15Vh4
+5V
f12V
+
ˉ
+
ˉ
U
V
W
L1C
Varistor
Command pulse
input encoder output pulse
Analog speed/
torque command input
A/D
I/O
I/O signal
