Keyence SV Series User Manual

2-21

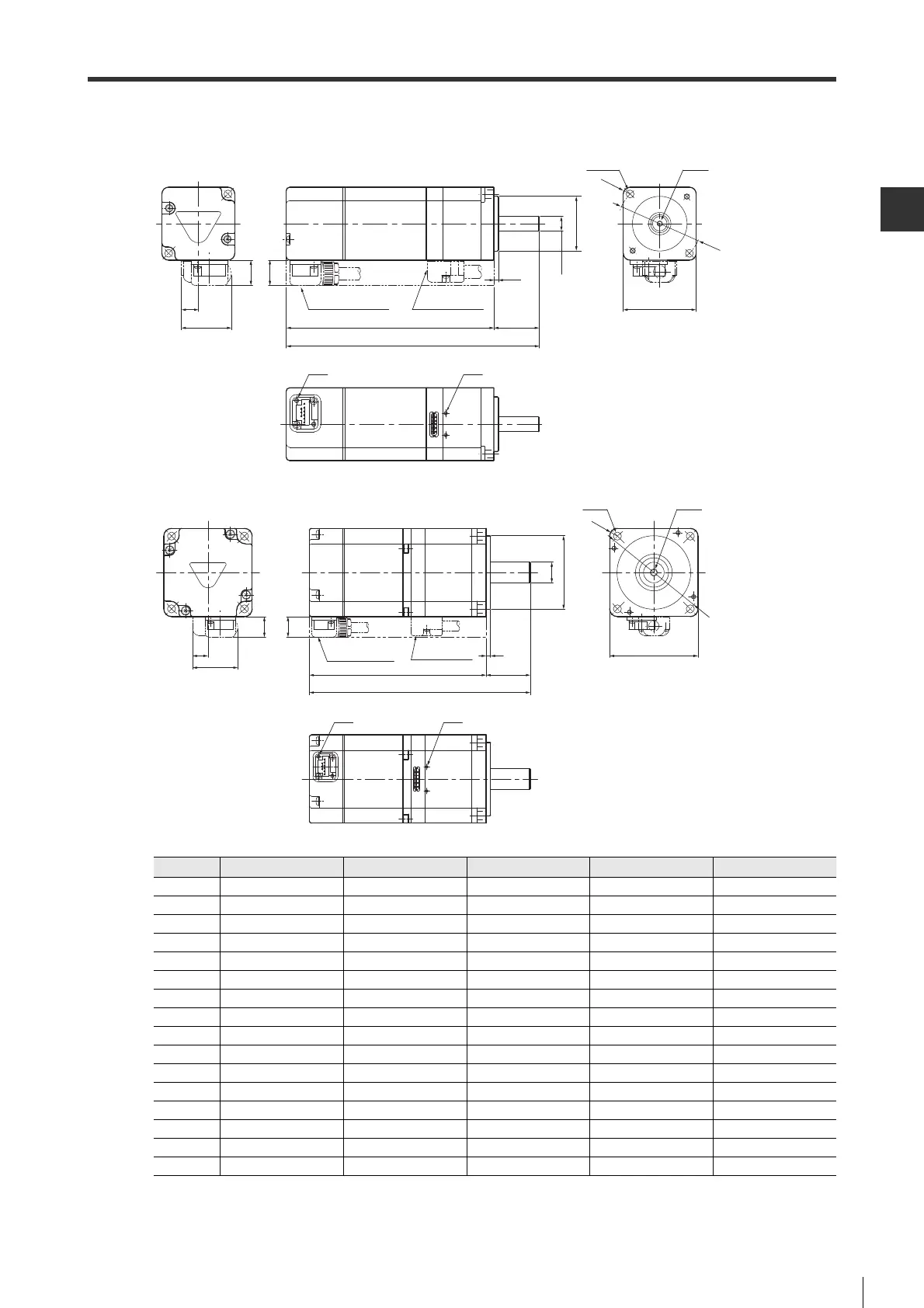

2-5 Dimensions
CONFIGURATION & SPECIFICATIONS
2
- SV Series User’s Manual -
● Electromagnetic brake motor
SV-B005/B010
SV-B020/B040/B075
Model SV-B005 SV-B010 SV-B020 SV-B040 SV-B075
(A) R3.7 R3.7 R5.3 R5.3 R8.2
(B) Ø4.3 Ø4.3 Ø5.5 Ø5.5 Ø7
(C) M3, depth 6 M3, depth 6 M5, depth 8 M5, depth 8 M6, depth 10
(D) Ø46 Ø46 Ø70 Ø70 Ø90
(E) *40 *40 *60 *60 *80
(F) Ø30h7 Ø30h7 Ø50h7 Ø50h7 Ø70h7
(G) Ø8h6 Ø8h6 Ø14h6 Ø14h6 Ø19h6
(H) 2.5 2.5 3 3 3
(I)2525303040
(J) (14) (14) (14) (14) (15)
(K) 139 152.5 150 168.5 200
(L) 114 127.5 120 138.5 160
(M) 27.5 27.5 30.8 30.8 39.3
(N) 9.4 9.4 10.5 10.5 13.5
(O)M2M2M2M2M2.5
(P)M2M2M2M2M2
J
F
G
D
C
H
IL
K
2-B
2-O
2-P
A
N
M
Motor power cable
(option)
Encoder cable
(option)
J
E
M
N
J J
LI
Motor power cable
(option)
Encoder cable
(option)
H
2-P 2-O
E
K
4-B C
G
F
A
D

Keyence SV Series Specifications

General

Display	LCD
Output Type	Digital, Analog
Power Supply	24V DC
Communication	Ethernet, RS-232, RS-485
Series	SV Series
Programming Language	Ladder Logic
Mounting	Panel mounting
Operating Temperature	0 to +50°C
Storage Temperature	-20 to +60°C
Vibration Resistance	10 to 55 Hz
Shock Resistance	30G
