4-14

SIGNALS AND WIRING

4-4 Wiring Servo Motor

- SV Series User’s Manual -

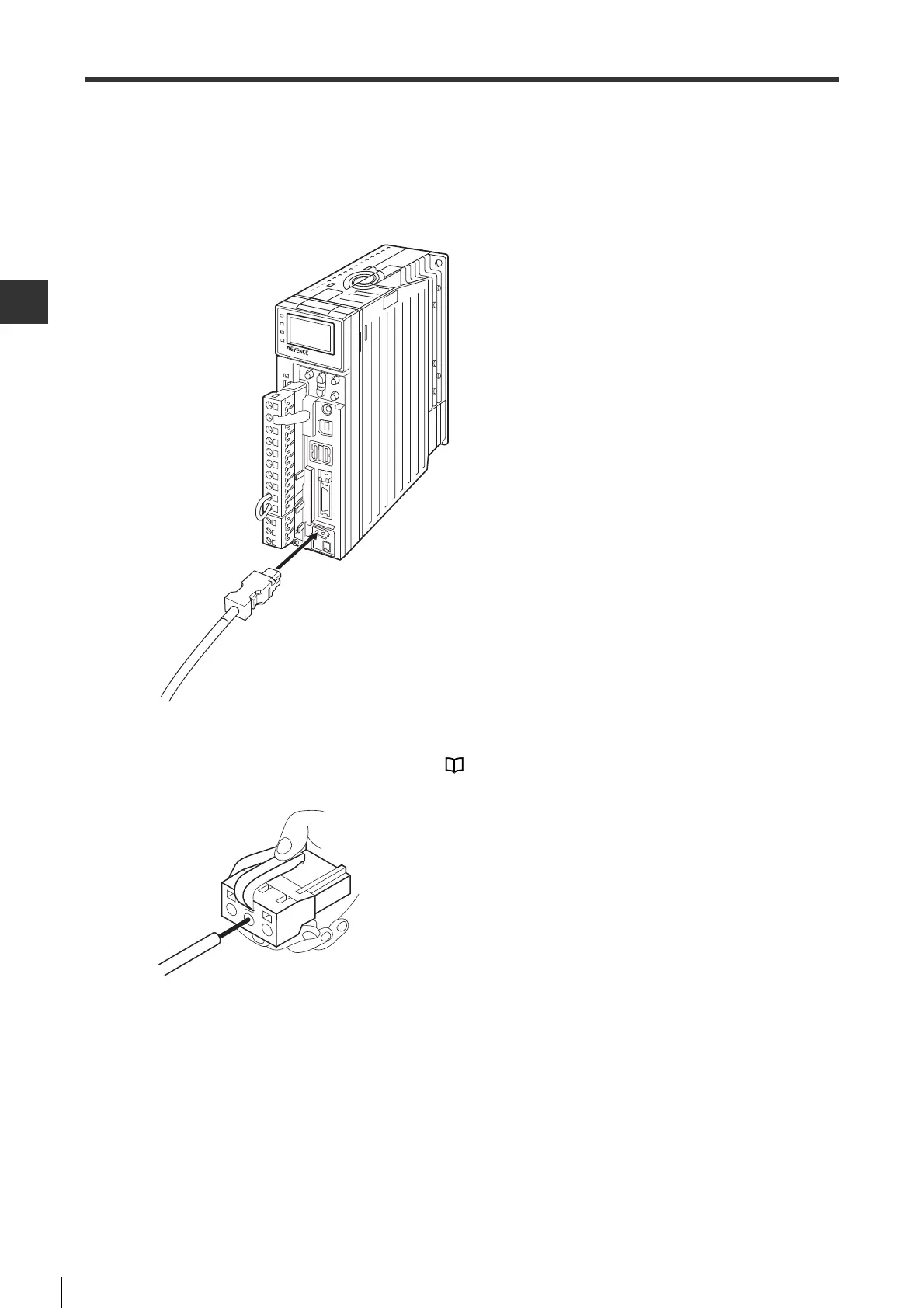

■ Wiring servo amplifiers

To connect the cables to servo amplifiers after wiring of servo motor finished.

● Wiring procedures of encoder cable

To insert encoder cable at the servo amplifier side into the encoder connector of servo amplifier.

● Wiring procedures of motor power cables

Same as wiring of motor power connector cables, "Wiring the Main Circuit/Control Circuit and Motor Power Supply

Connector", Page 4-7.
