Keyence SV Series User Manual

4-16
SIGNALS AND WIRING
4
4-4 Wiring Servo Motor
- SV Series User’s Manual -
■ Model

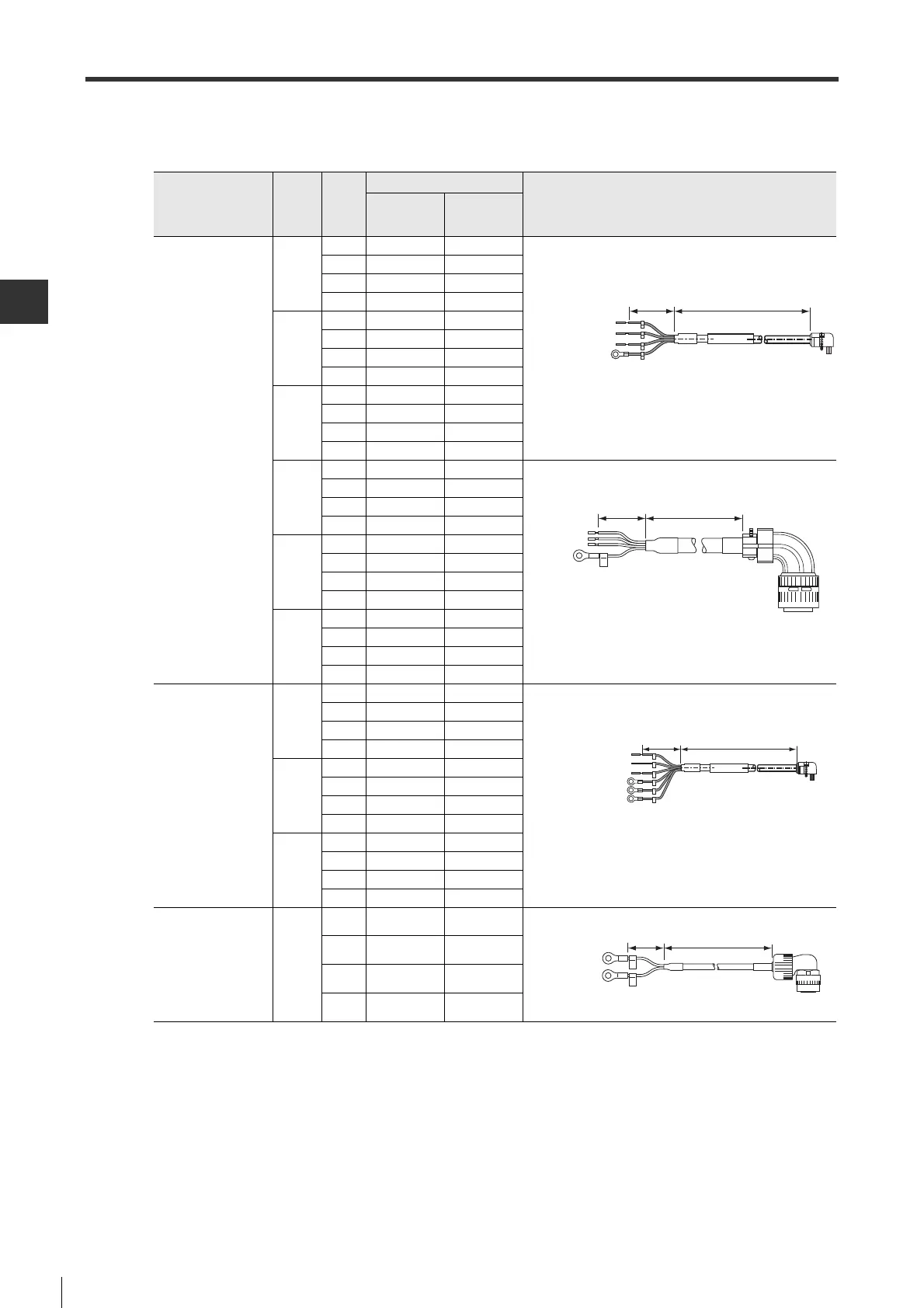

Model and shape of motor power cable are as follows.
Name
Rated
output
Length
(L)
Model
Shape
Standard
cable
Flexible
cable
Motor power cable
(without
electromagnetic
brake)
50W
100W
3m SV-C3A SV-C3AG
5m SV-C5A SV-C5AG
10m SV-C10A SV-C10AG
20m SV-C20A -
200W
400W
3m SV-C3B SV-C3BG
5m SV-C5B SV-C5BG
10m SV-C10B SV-C10BG
20m SV-C20B -
750W
3m SV-C3C SV-C3CG
5m SV-C5C SV-C5CG
10m SV-C10C SV-C10CG
20m SV-C20C -
1kW
1.5kW
3m SV-C3D -
5m SV-C5D -
10m SV-C10D -
20m SV-C20D -
2kW
3m SV-C3E -
5m SV-C5E -
10m SV-C10E -
20m SV-C20E -
3kW
5kW
3m SV-C3F -
5m SV-C5F -
10m SV-C10F -
20m SV-C20F -
Motor power cable
(with
electromagnetic
brake)
50W
100W
3m SV-D3A SV-D3AG
5m SV-D5A SV-D5AG
10m SV-D10A SV-D10AG
20m SV-D20A -
200W
400W
3m SV-D3B SV-D3BG
5m SV-D5B SV-D5BG
10m SV-D10B SV-D10BG
20m SV-D20B -
750W
3m SV-D3C SV-D3CG
5m SV-D5C SV-D5CG
10m SV-D10C SV-D10CG
20m SV-D20C -
Electromagnetic
brake power cable
1kW
1.5kW
2kW
3kW
5kW
3倣
SV-D3D -
5m SV-D5D -
10m SV-D10D -
20m SV-D20D -
50mm L
Wire mark
Servo amplifier side
Red : U phase
White : V phase
Blue : W phase
Green: FG
Servo motor sid
Cable O.D.: For 50 to 400W Ø7f0.3mm
For 750W Ø8f0.3mm
50mm L
ワイヤマーク
サー
ボ
アンプ側
赤 :U 相
白 :V 相
青 :W 相
緑 :FG
サー
ボ
モータ側
ケーブル外径 :1kW 〜 1.5kW 用φ11.8±0.36mm
 2kW 用φ13.9±0.40mm
 3kW 〜 5kW 用φ19.3±0.46mm
50mm L
Wire mark
M4 crimped terminal
Servo amplifier side Servo motor side
Red : U-phase
White : V-phase
Blue : W-phase
Black : Electromagnetic brake
Black : Electromagnetic brake
Green: FG
Cable O.D.: For 50 to 400W Ø7f0.3mm
For 750W Ø8f0.3mm
50mm
L
ワイヤマーク
サーボアンプ側 サーボモータ側
ケーブル外径 :φ7mm
