4 Transport, installation and commissioning
Installation
Page
4 - 24
MB-20-G/MB-200G-W_MB-LABmaster_MB-200 MOD_TP700
Operating Manual - V5.0 - 04/2018 - STD
► Connect operating company-specific feedthroughs (1).
► Connect vacuum hose to gas inlet of the vacuum pump (3).
► Connect gas exhaust of vacuum pump to the disposal equipment on operating com-
pany’s premises (4).
► Connect regeneration gas outlet (with condensate) to disposal equipment on operat-
ing company’s premises (5).
► Connect purge gas exhaust and working gas (ECO Mode) exhaust to disposal
equipment on operating company’s premises (7).
► Connect gas pipe from antechamber to vacuum connection of the gas purifier (8).

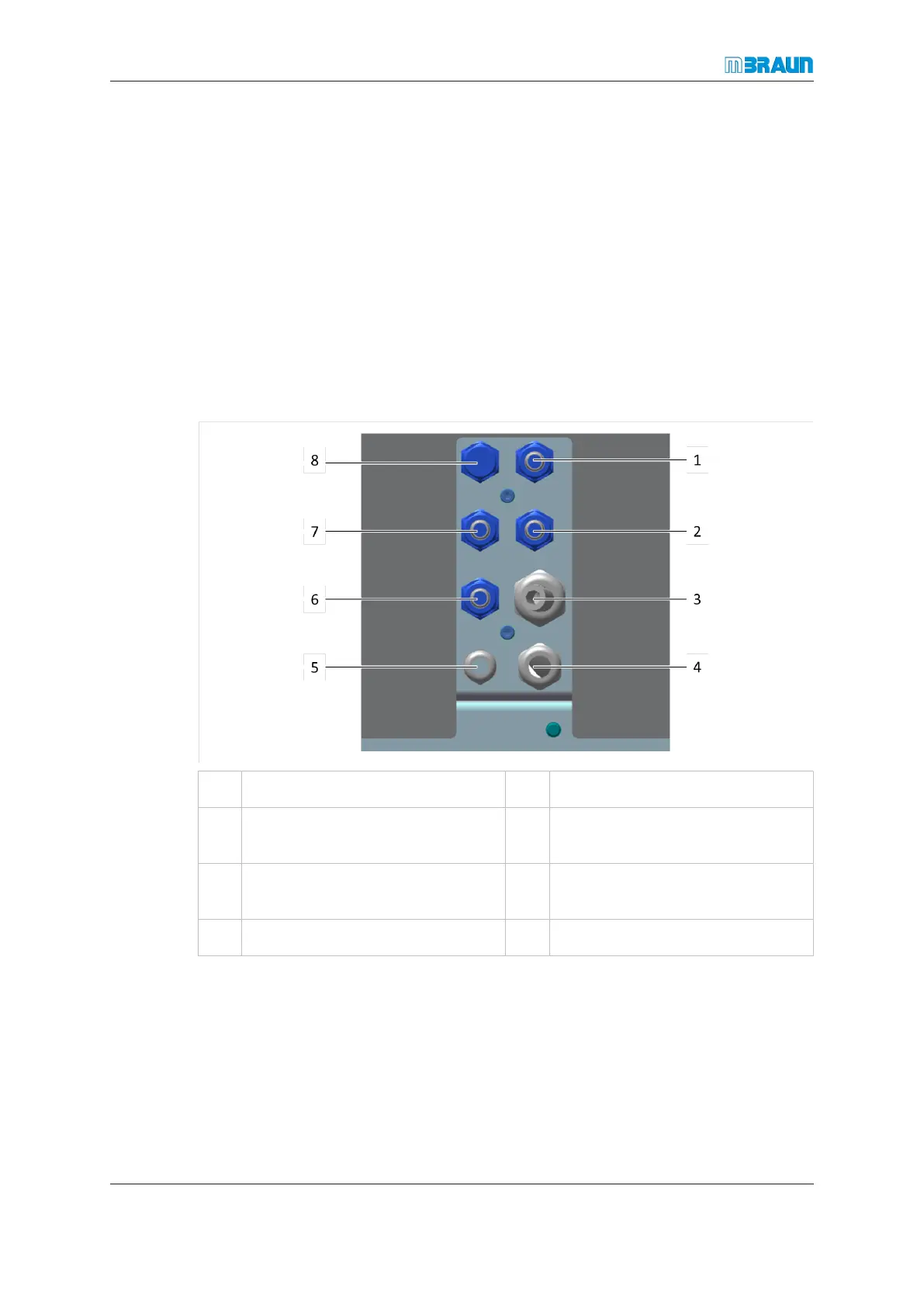

Media connection points
Gas purifier
1 Cooling water inlet 2 Cooling water outlet
3 Regeneration gas outlet (condens-
ate)
4 Power cable to electrical mains net-
work
5 Electrical connection for vacuum
pump
6 Regeneration gas inlet
7 Working gas inlet 8 Connection to vacuum pipe
