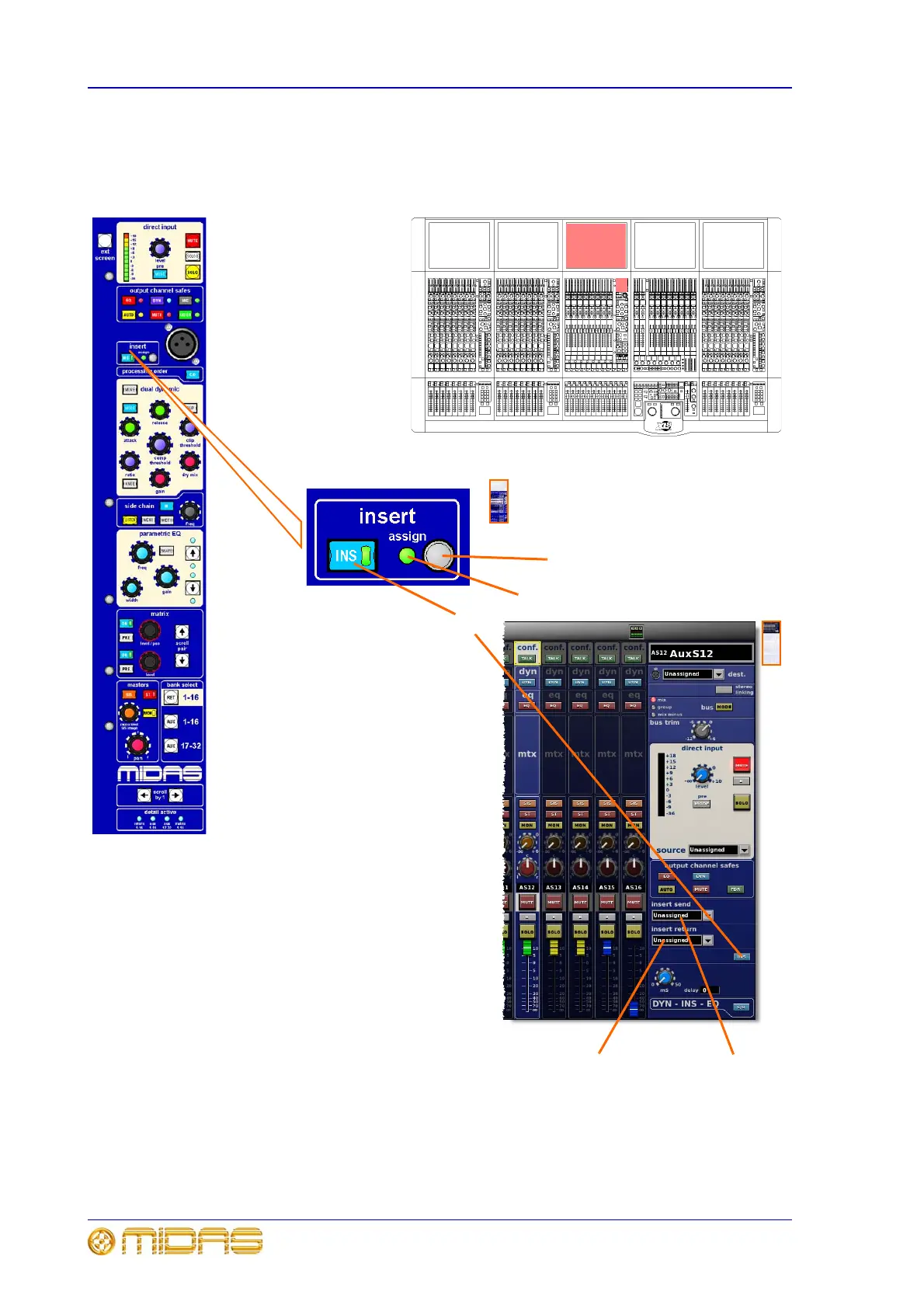

Insert controls
The insert section allows configuration of send and return points when an insert is
used. This section is optional and assigned on a channel-by-channel basis
3
2
1
1 Aux insert send destination, selectable from
drop-down list, which is accessed by pressing  (right
of the name field).
2 Aux insert return source, selectable from
drop-down list, which is accessed by pressing  (right
of the name field).
3 Aux insert INS switch. When switched one, this
switch connects (inserts) returned programme material
to the channel signal path, provided an insert point has
been assigned.
4 assign LED illuminates to show that an insert is in
use.
5 Quick access button selects insert section to GUI
output channel strip to allow configuration of insert
send and return points.
