188 Chapter 9: Basic Operation
XL8 Control Centre
Operator Manual

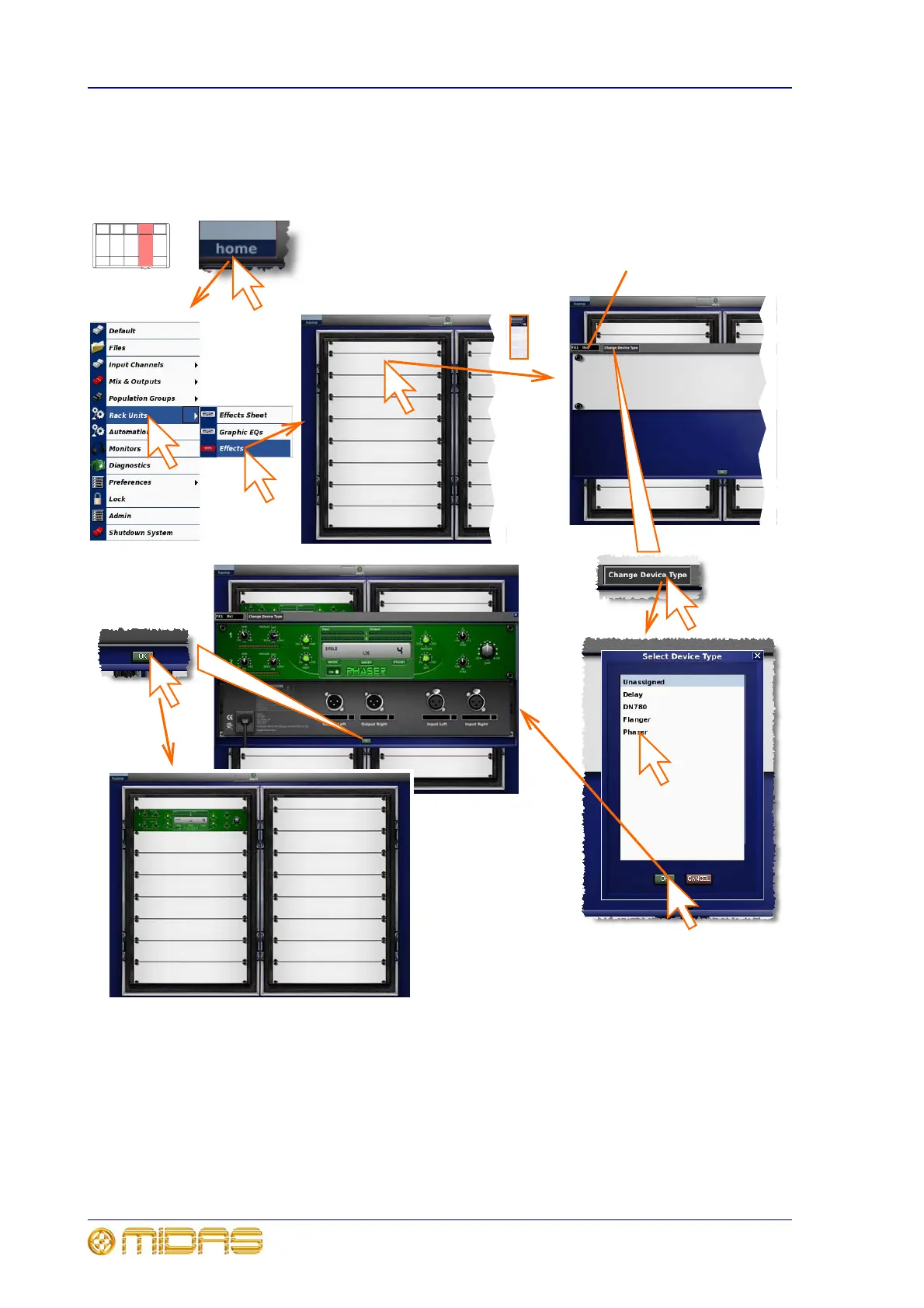

Setting up the effects rack
To add an effect
3
1 At the mix bay GUI, click on home to obtain the menu
options.
2 Click on Rack Units and then Effects in the GUI menu to
select the effects screen.
3 Choose the location of your new effect from one of the 16
effects sections, then click within that section.
4 Click on the Change Device Type button.
5 In “Select Device Type” window, click on one of the
available device types, for example, “Phaser”. (The
effects in the list may be slightly different on your display,
as devices may have been added or existing ones
replaced.)
6 Click OK.
7 Edit new device as necessary, that is, adjust control
knobs, make ‘virtual’ connections (patch); you can even
change the device name by clicking in the name field and
typing the new name via the output bay keyboard.
8 Click OK to exit. You can exit without saving your
changes by clicking on “X” at top right-hand corner of
device window.
1
Effect currently selected
to this section
4
5
6
8
2a
2b
To Next Page
