Mix & Outputs screen 127
XL8 Control Centre
Operator Manual

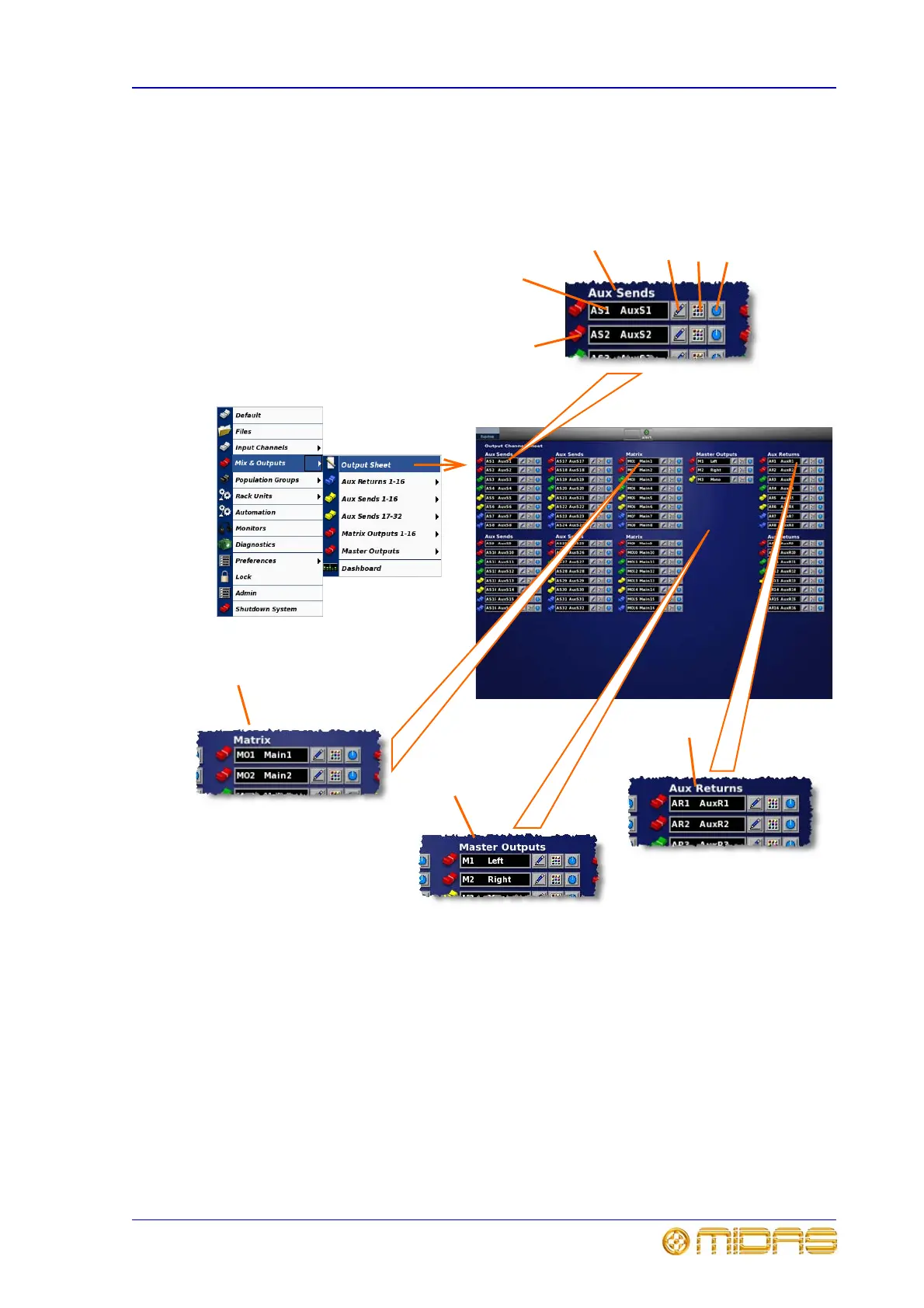

Output Channel Sheet screen
The Output Channel Sheet screen allows you to change the name and background
colour of each output as they appear on the GUI screen and LCD select switch see
“Master overview strips” on page 98 and “Output fast strips” on page 102).
1 Name field: displays fixed output channel
identifier and user-configurable name.
2 Pencil icon: allows you change the name of the
output channel.
3 Colour palette icon: brings up a colour palette
from which you can select the background colour of
the name field (item 1), which also becomes the
backlight colour of its LCD select switch.
4 Control knob icon: takes you to the output
channel’s associated bank of channels, which can also
be accessed via the other options in the submenu.
5 Fader icon: shows that this item is an output
channel (colour defines output type).
6 32-off Aux Sends.
7 16-off Aux Returns.
8 3-off Master Outputs: 2-off stereo (left and
right) and 1-off mono.
9 16-off Matrix.
1
2
3
4
5
7
6
8
9
