Naming inputs and outputs
For ease of identification, the name and background colour of the inputs and outputs
can be changed to suit user preferences. This is done via the sheet screens, which are
accessible via the GUI menu after clicking home and then selecting either Input
Channels or Mix & Outputs. The procedure is similar to that used for VCA/POP
configuration.

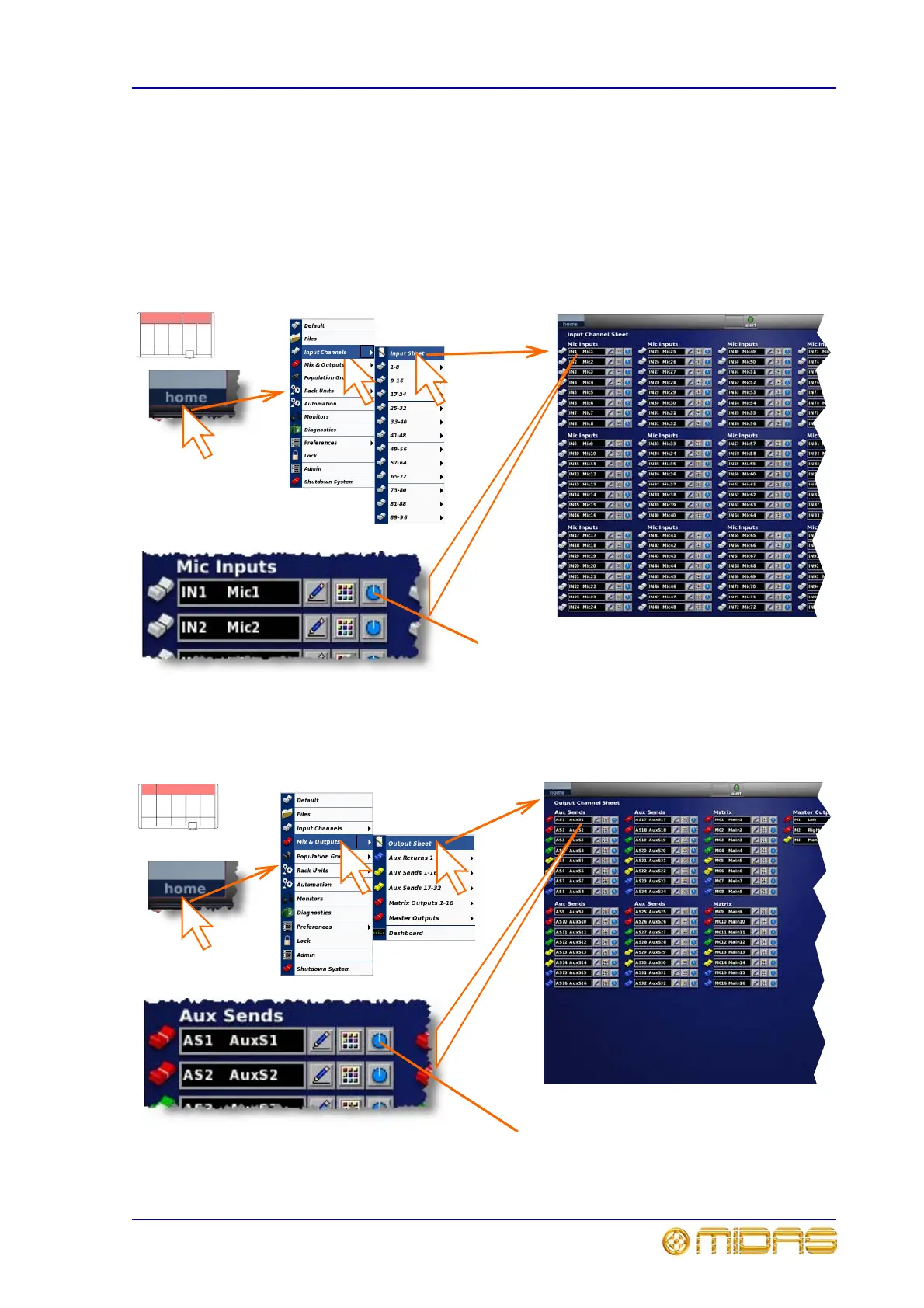

To change the name and colour of an input
To change the name and colour of an output
1
2a
2b
This button takes you to the input channels
screen; see page 170 for an example
From here, set up the mic input name and
colour; see “To set up the name and colour of
a VCA/POP group” on page 180.
1
2a
2b
This button takes you to the output channels
screen; see page 183 for an example
From here, set up the output name and colour; see “To set up
the name and colour of a VCA/POP group” on page 180.
