XL8 Control Surface
Operator Manual
Insert
Input channel insert section provides a send and return out of the signal path,
primarily so that an effects device can be added to the signal’s processing. The send
destination and return source may only be set from the GUI screen, but the INS switch
can be found on the GUI and also in each input fast strip. This section is optional and
assigned on a channel-by-channel basis.
4
1
5

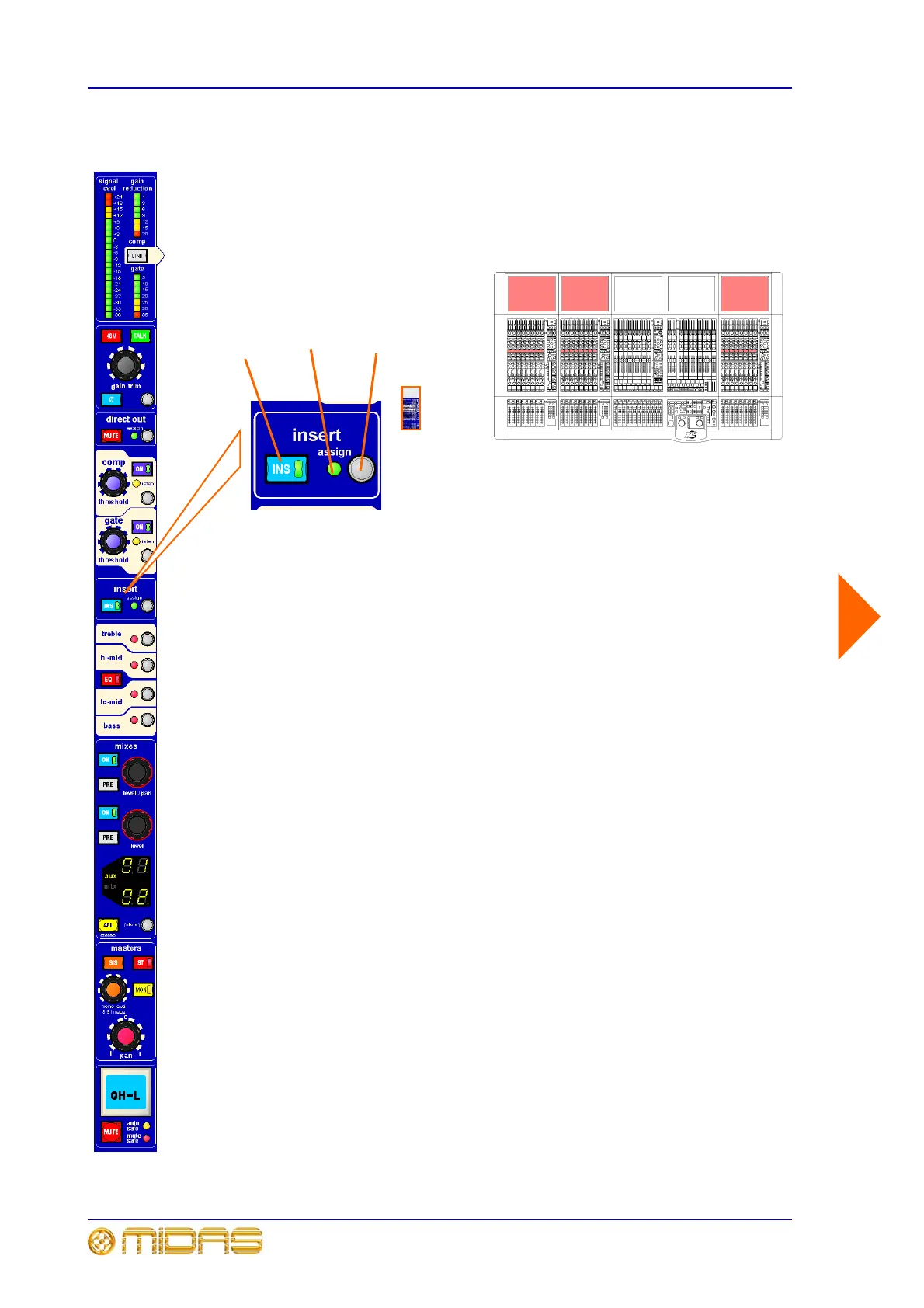

1 INS switch connects (inserts) returned programme
material to the channel signal path, provided an insert point
has been assigned. Integral LED illuminates to show that
insert is enabled.
2 insert return field allows you to select the source of the
insert return from a drop-down list, selectable from the
 to
right of the name field. Options are: 64 pool outputs and 16
left and right FX inputs (32 in total).
3 insert send field allows you to select the destination of
the insert send from a drop-down list, selectable from the
 to
right of the name field. Options are: 64 pool inputs and 16 left
and right FX outputs (32 in total).
4 Quick access button provides a short cut to the screen
menu used to select insert point (send and return) allocation
from those available on the console system (in GUI input
channel strip).
5 Green assign LED illuminates to show that an insert is
enabled.
