146 Chapter 8: Connections, Setting Up And Powering Up

XL8 Control Centre

Operator Manual

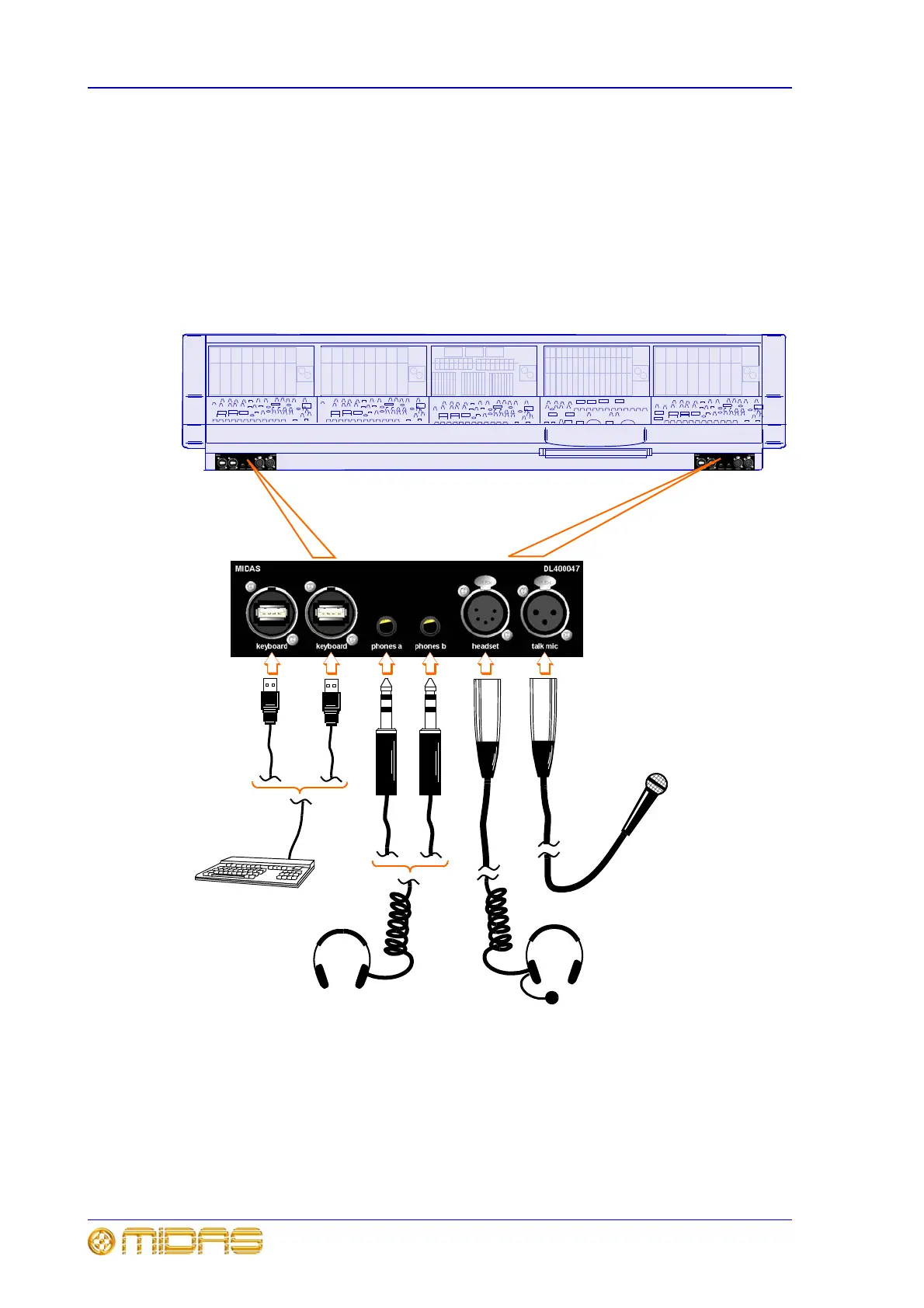

Front panel connections

There are two similar connectors panels at the front of the XL8 Control Centre, situated

at either end under the armrest. Both panels house connectors for:

• Keyboards for control via a GUI screen. Each keyboard socket is dedicated to a GUI

screen; see “Keyboard connections and bay allocation” on page 147 for associations.

• Headphones for A and B output monitoring.

• Headset (headphones with mic) for communication with system technician.

•Mic.

Headphones

with mic

Mic

Headphones

Keyboard
