46 Chapter 4: Input Bays
XL8 Control Surface
Operator Manual
Direct out
The direct out section provides an internal connection to effects etc. or a way of
leaving the control centre via an I/O box. It allows you to take a signal directly out of
a defined point in the input channel’s signal path and route it to either an internal
assignable effect or to one of the 48 pool outputs (a physical connection at one of the
line I/O boxes). This function is optional and assigned on a channel-by-channel basis.
This section is deliberately distanced from main channel panel controls because it is a
limited resource and unused on many channels.

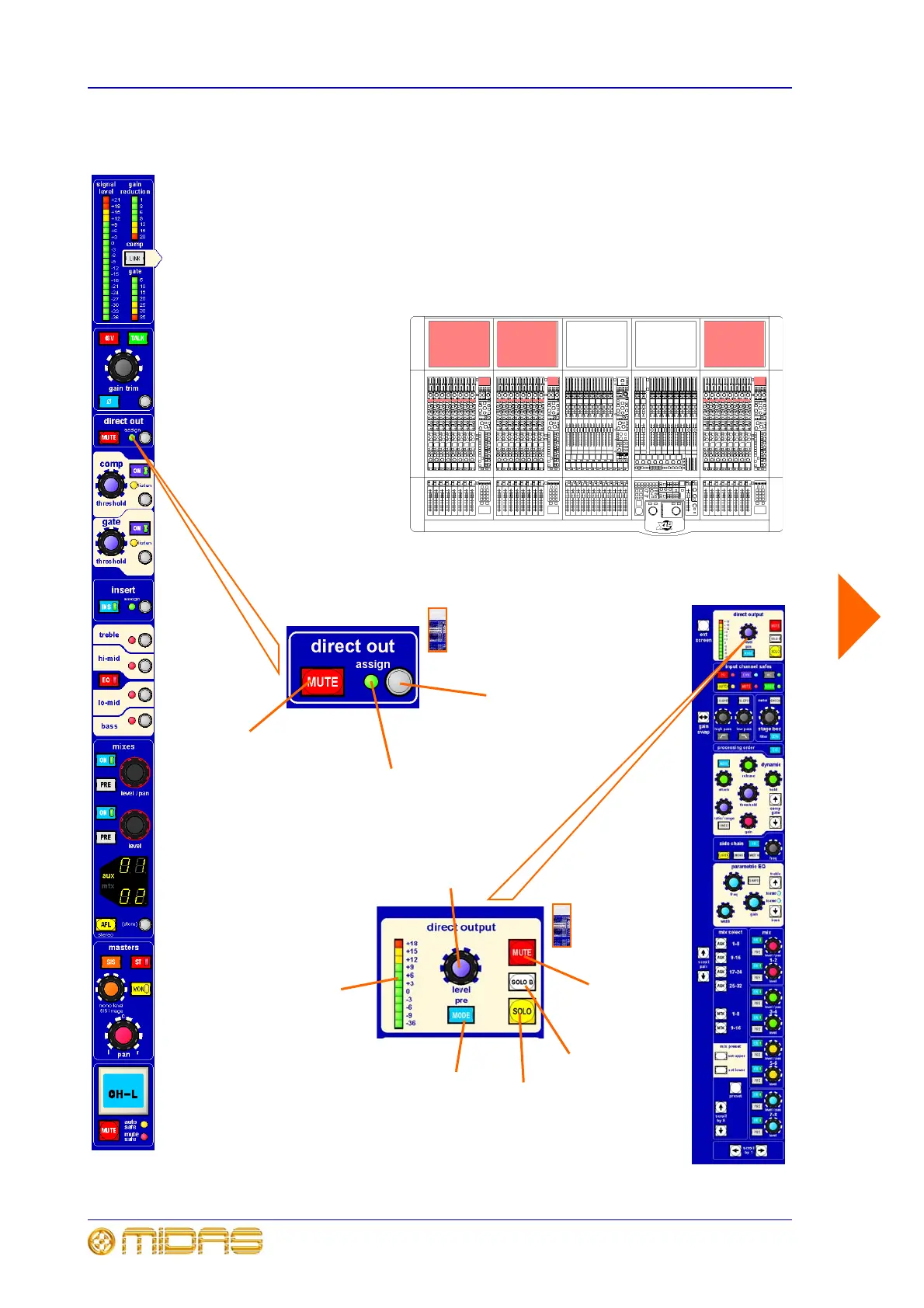

Selection of signal path position
(item 4) and destination
(item 5) can only be carried out
via the GUI.
1
9
10
1
2
3
8
7
6
