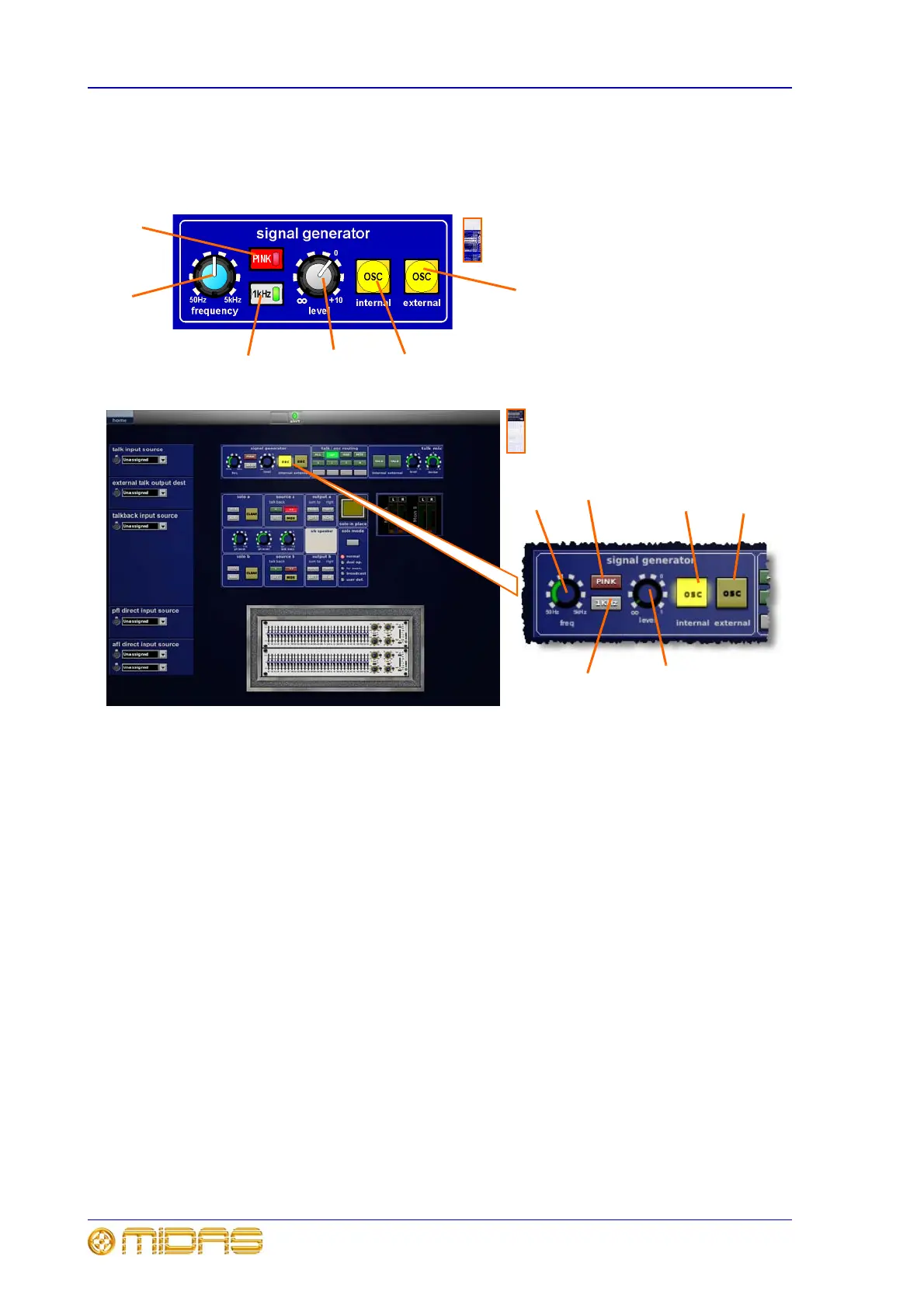

signal generator
The signal generator section can output to pink noise or sine wave tone, and connect
to the internal and external talk buses.
1 OSC/external connects signal generator output
to talk external output XLR.
2 OSC/internal connects signal generator output
to the control centre’s internal talk and talk select
buses. The internal talk bus can then be mixed onto
any of the control centre’s buses by pressing the
internal talk switches associated with those buses, or
mixed onto a group of buses by activating an internal
talk group; see “talk osc/routing” on page 109.
3 level control knob gives continuous adjustment
of signal generator peak output signals from +10dB to
off (4)
4 PINK switch overrides sinusoidal oscillator and
converts output to pink noise. Integral LED
illuminates to show that switch is on.
5 1kHz switch overrides the swept frequency
control (item 6) and provides a fixed 1kHz tone.
Integral LED illuminates to show that switch is on.
6 freq control knob gives continuous adjustment
of the sinusoidal oscillator frequency from 50Hz to
5kHz.
