Auxes 75
XL8 Control Centre
Operator Manual

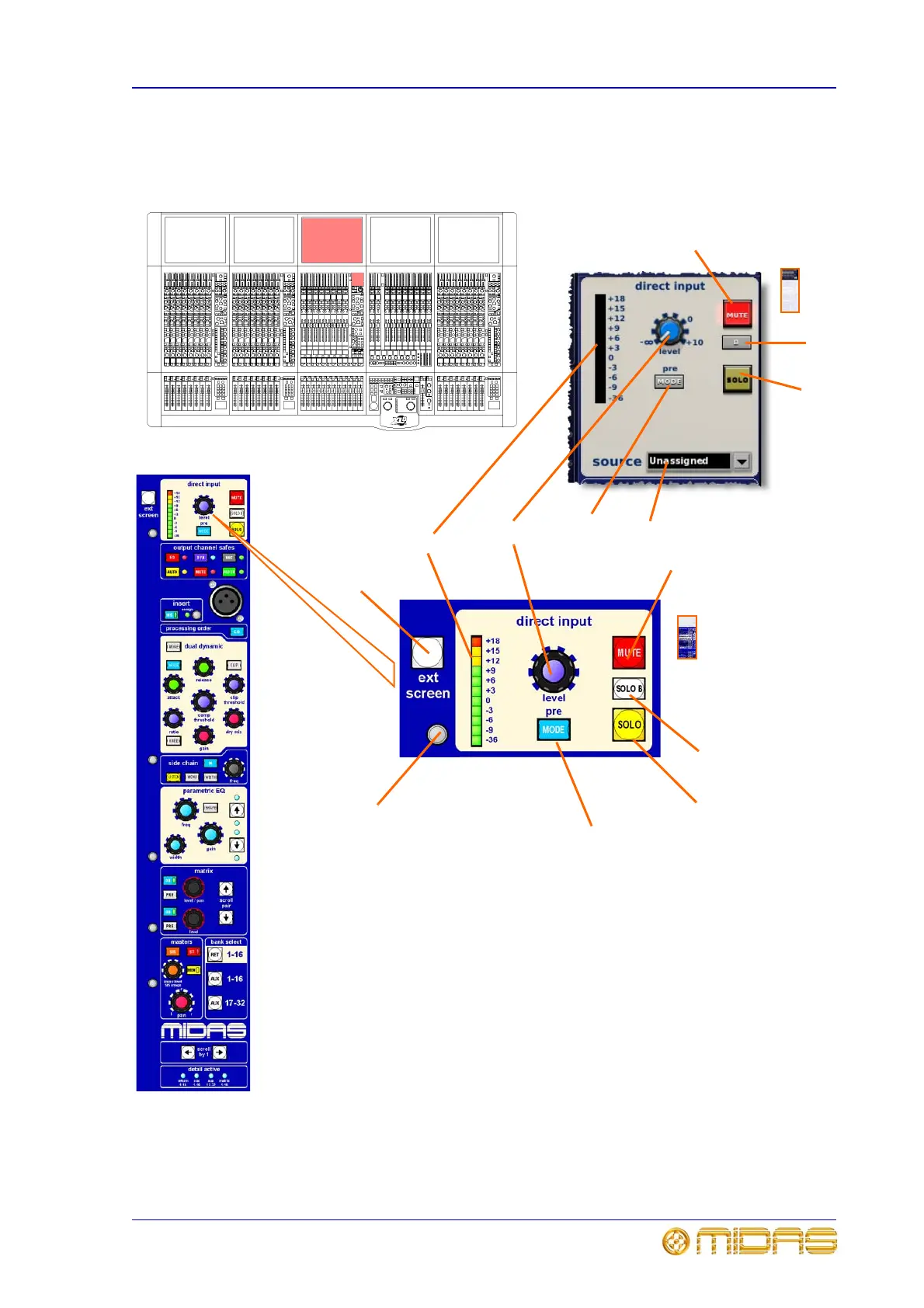

Direct input controls
The direct input section is deliberately distanced from main channel panel controls
because it is a limited resource and unused on many channels.
1
2
3
4
5
6
7
3
1
2
4
1 MUTE switch mutes the direct
output. It is included in the scene recall
system but is not affected by the channel
mute safe or auto mute masters.
Illuminates when enabled.
2 Aux direct input solo B switch
changes operation of the SOLO switch so
that it routes signals to the Monitor B
section of the console.
3 Aux direct input SOLO switch
activates signal routing to the Monitor A
section of the console.
4 Aux direct pre MODE button
changes the input point for the signal.
5 level control knob adjusts aux direct
input level within the range of -
4 to +10.
6 Aux direct input meter: 10-LED
meter monitors pre-fader level.
7 Aux direct input source selection
field allows you to choose aux source
from drop-down list, accessed by clicking
on to right of name field.
8 ext screen button changes screen
view to an external source (connector on
rear of control centre)
8
Press this quick access button to
select the direct input section to
the GUI output channel strip
