Description of the XL8 connections 151
XL8 Control Centre
Operator Manual

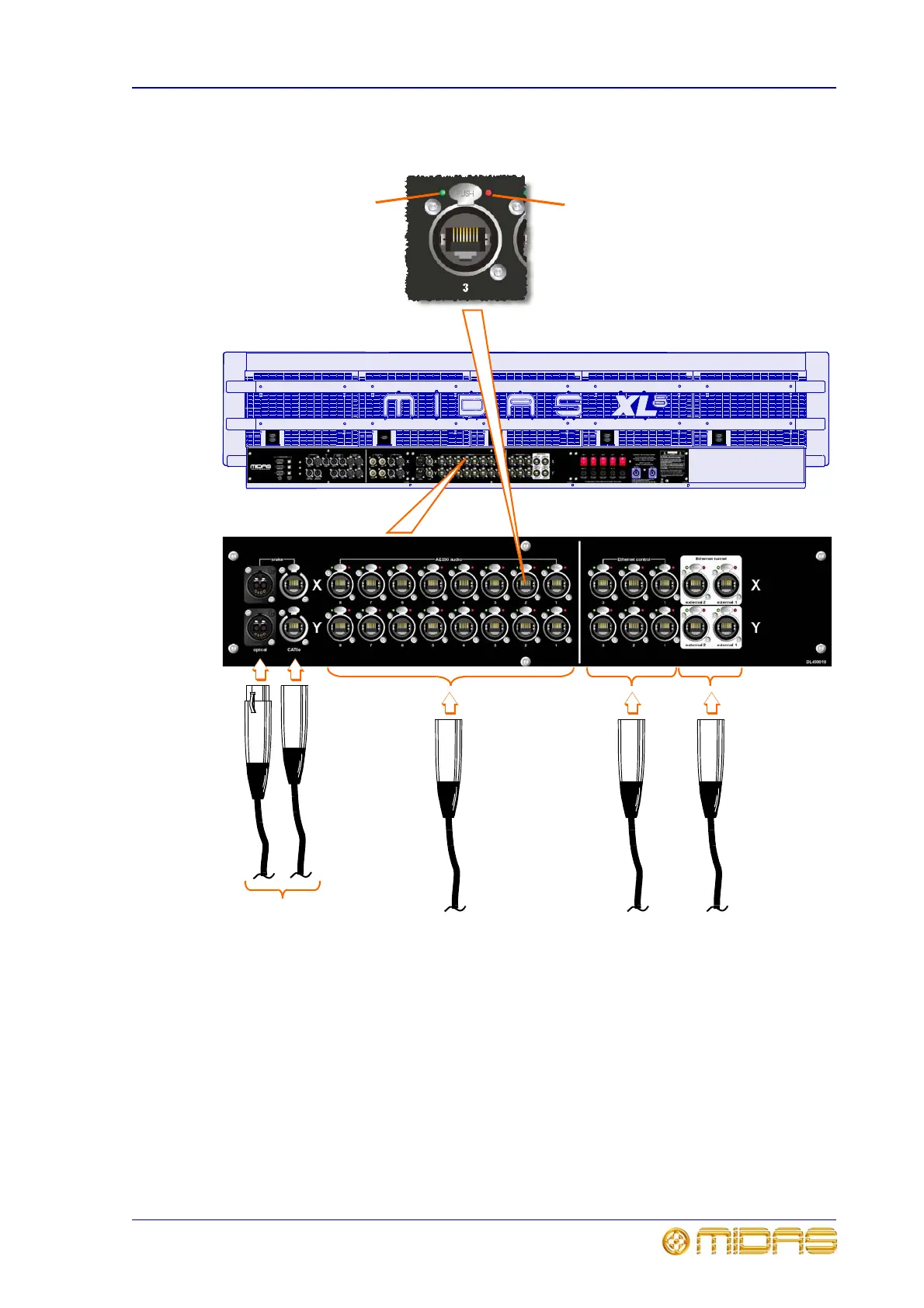

System interconnection panel
1 optical and CAT6e X and Y sockets for
optical male and female Ethernet XLR
connectors, respectively.
2 Eight X and Y AES50 audio sockets
(numbered 1 to 8) for female Ethernet XLR
connectors.
3 Three X and Y Ethernet control sockets
(numbered 1 to 3) for female Ethernet XLR
connectors.
4 external 1 and external 2 X and Y
Ethernet tunnel sockets for female Ethernet
XLR connectors. (X external 2 is used for
connecting a Klark Teknik DN9331 RapidE.)
1
23
4
Red LED illuminates to indicate no
communication
Green LED illuminates to
indicate communication
