Navigating the outputs
Outputs are manipulated on the GUIs in a slightly different manner to the input
channels. The different types of output channel are accommodated on the mix bay GUI
in banks of eight dual-channels, except in the case of the master outputs, which have
only three channels (two stereos and a mono).

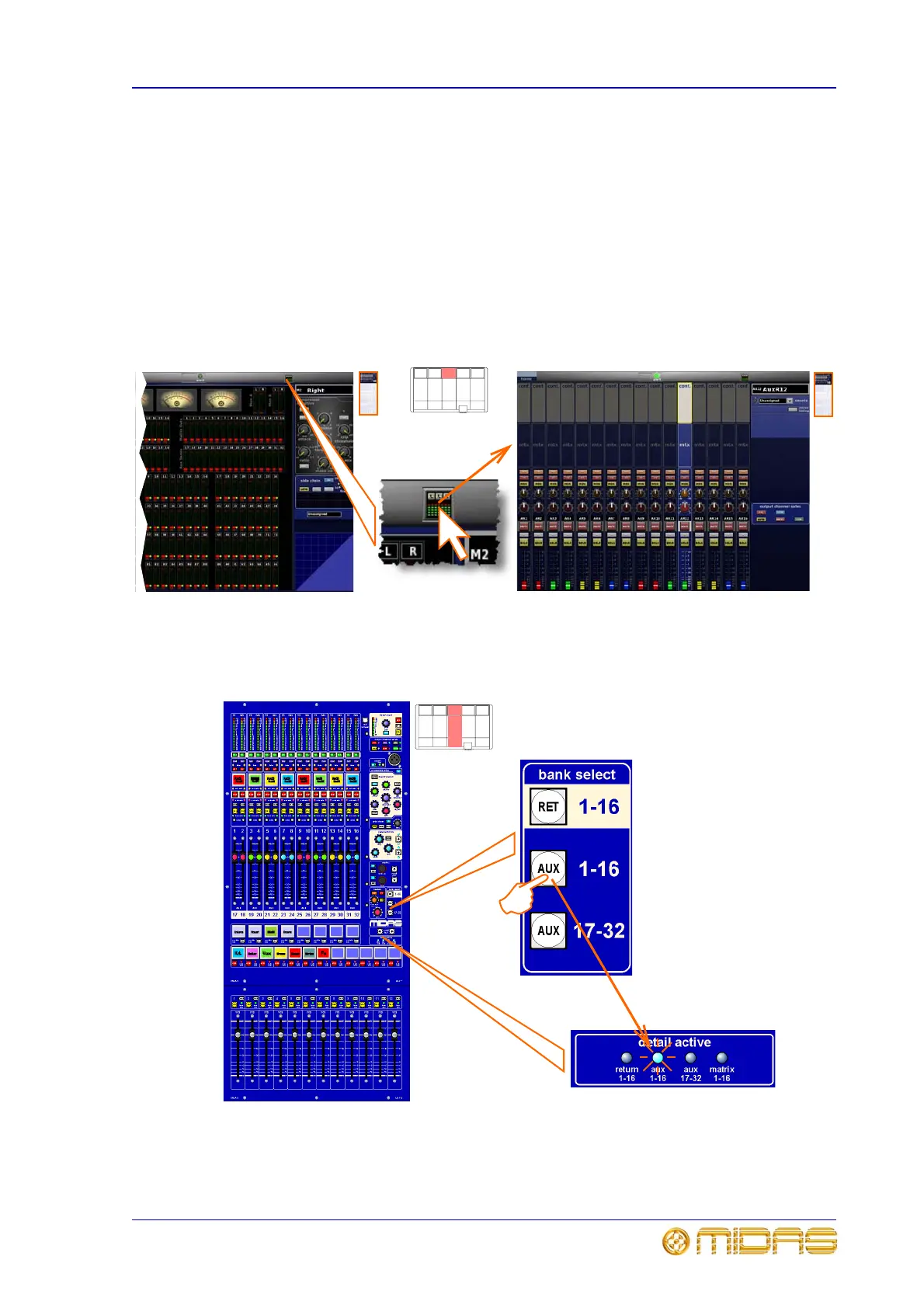

To select the output screen
To swap from the dashboard screen to the output screen, and vice versa, click on the
screen swap button. The swap button is situated at the top of the screen, adjacent to
the GUI channel strip.
To select a bank of auxes or returns to the mix bay
To select a bank of returns or auxes to the mix bay control surface, press RET or AUX
as required.
Pressing a bank select button
selects that bank to the
control surface. This is
confirmed by its associated
LED in the detail active
section being illuminated.
