Mix & Outputs screen 129

XL8 Control Centre

Operator Manual

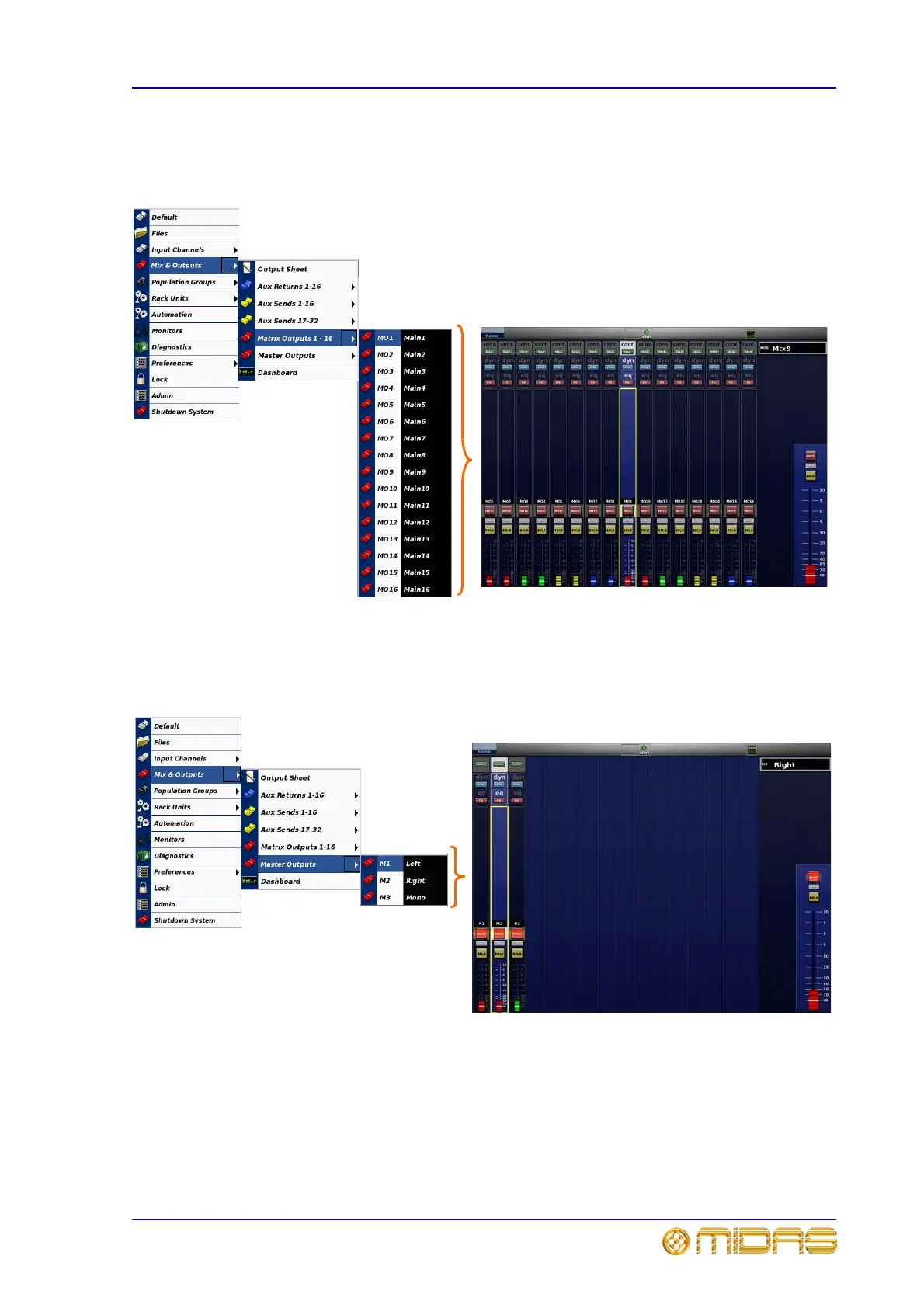

Matrix Outputs 1 - 16 screen

The Matrix Outputs 1 - 16 screen shows all of the controls for the matrices. Refer to

“Output fast strips” on page 102.

Master Outputs screen

The Master Outputs screen shows all of the controls for the masters. Refer to “Master

overview strips” on page 98.
