260 Chapter 13: Effects

XL8 Control Surface

Operator Manual

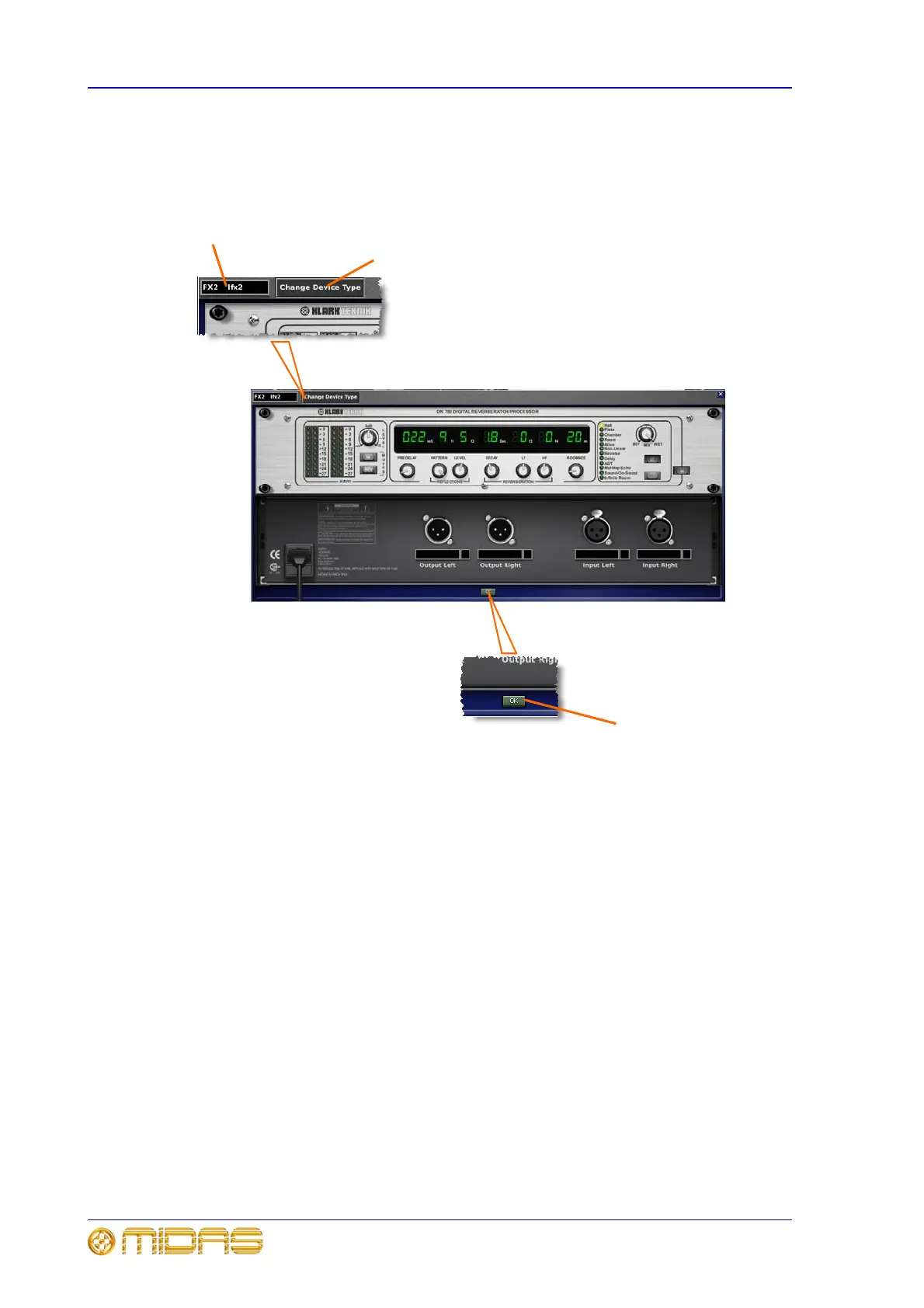

Front panel - common element

Some elements on the front panel are common. The following example is taken from

the Virtual DN-780 effect.

1 Device name field.

2 “Change Device Type” field. Allows you to

select another device to replace this one.

3 OK button exits screen.

3

1

2
