170 Chapter 9: Basic Operation
XL8 Control Centre
Operator Manual
To select an input channel by typing in its number
To select any input channel to an input bay, type in its channel number using the keys
in the input select panel in the input bay’s input navigation zone. The LED
representing the bank containing the currently selected input channel will illuminate.

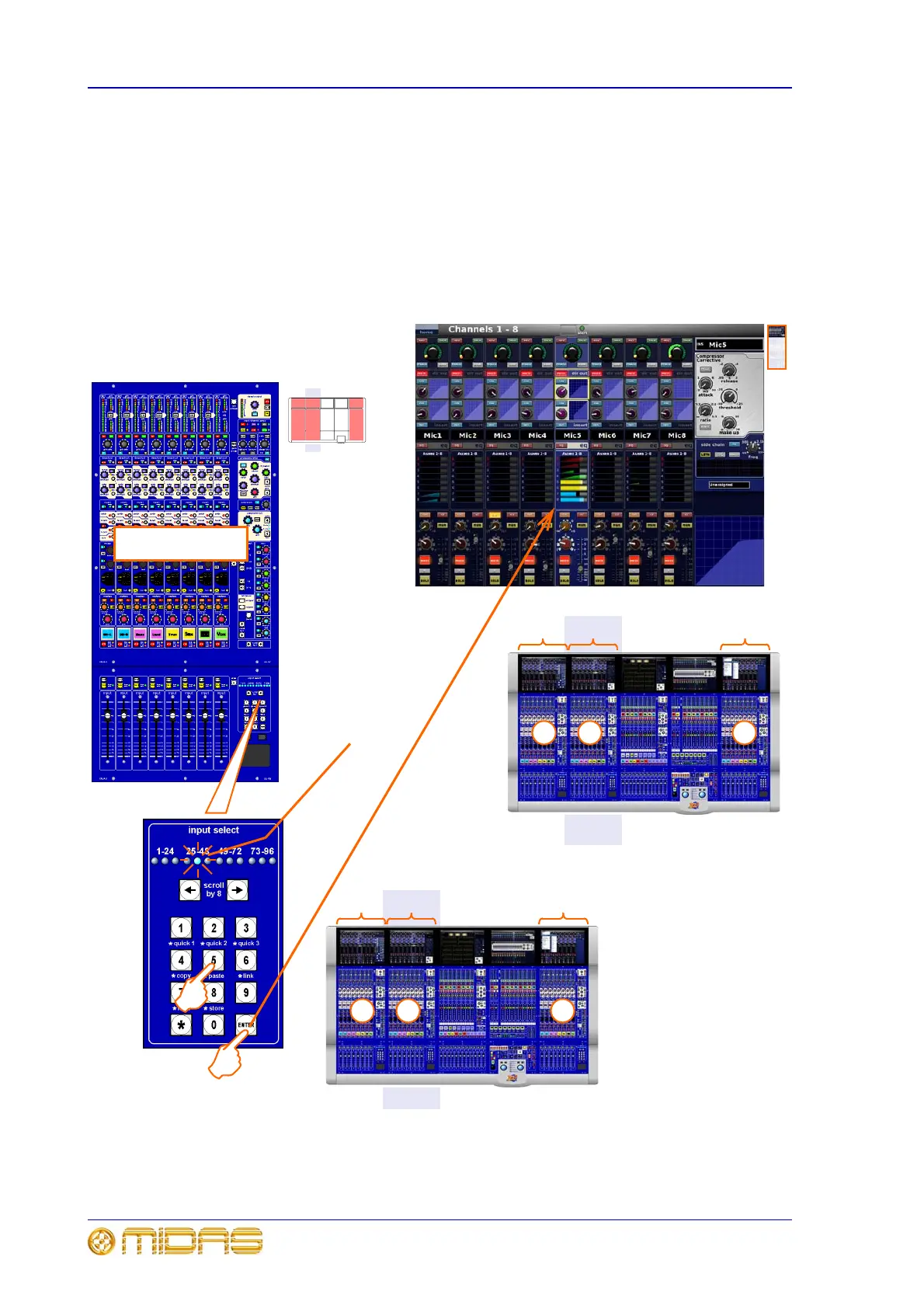

The diagram below shows the result of the action on the input bay GUI screens, where
the other two input bay GUI screens change their display accordingly so that the banks
still run consecutively.
The three input bay GUI screens can each have an input channel selected at the same
time.
25-32
33-40 41-48
1 2 3
This shows the
bank containing
channels 33-40
selected to input
bay 2 (default
configuration)
89-96
1-8 9-16
1 2 3
1
2
1 Type the required channel number, for example, “5”.
2 Press ENTER. Illuminated LED bank indicator will change position accordingly.
Illuminated LED
shows which bank
of eight channels is
currently selected
to its bay’s control
surface
This shows the new bank,
containing the channel just
selected (that is, 5),
selected to input bay 2
(see GUI screen above)
Input bay 2
