Meters 37
XL8 Control Surface
Operator Manual
Meters
The input fast zone deals with the input channel signals and is divided into eight input
fast strips, all of which are identical except for the far right-hand channel, which has
does not have a LINK button.
Note:
Meters can be switched under global command
from the main output bay area to monitor the
raw A/D input point and are also individually
switchable using the meter check button in the
mic input section, see “Mic amp - preliminary
input processing” on page 38.

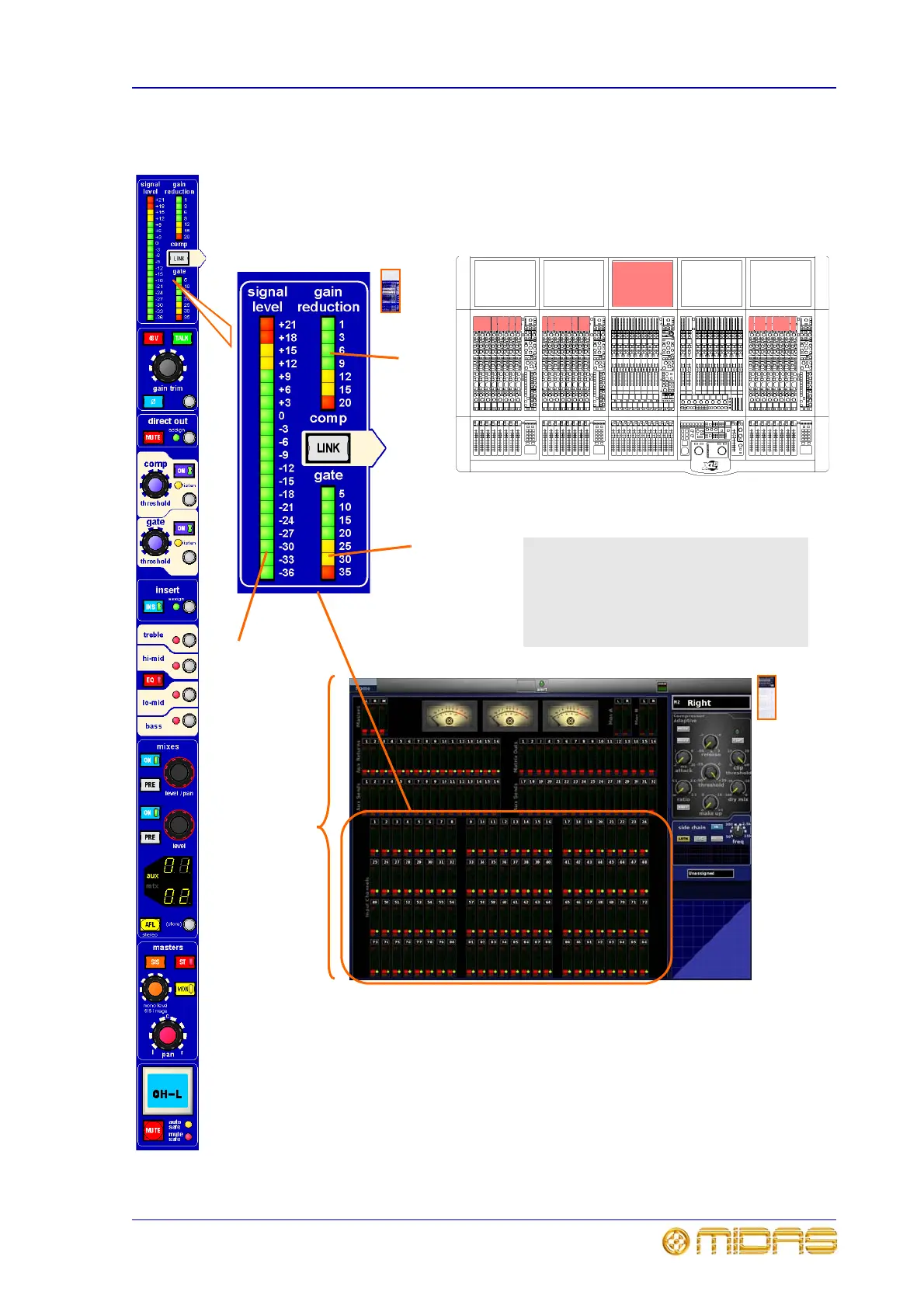

1 signal level 20-segment LED meter
(defaults to monitor pre-fader signal level).
2 Compressor gain reduction
seven-segment LED meter monitors the
amount of gain reduction when using a
compressor.
3 gate gain reduction seven-segment meter
monitors the amount of gain reduction when
using a gate.
4 Dashboard display on the mix bay GUI
screen shows all meters.
1
3
2
4
