90 Chapter 5: Mix Bay
XL8 Control Centre
Operator Manual
Bank/channel selection
Three sections are used to select an aux or return to the control surface. By using the
buttons in the bank select section you can select the bank containing the aux or return
you require; one of the LEDs in the detail active section will illuminate to indicate
which bank is selected. Selection of the required channel is done using the left and
right scroll by 1 section buttons.

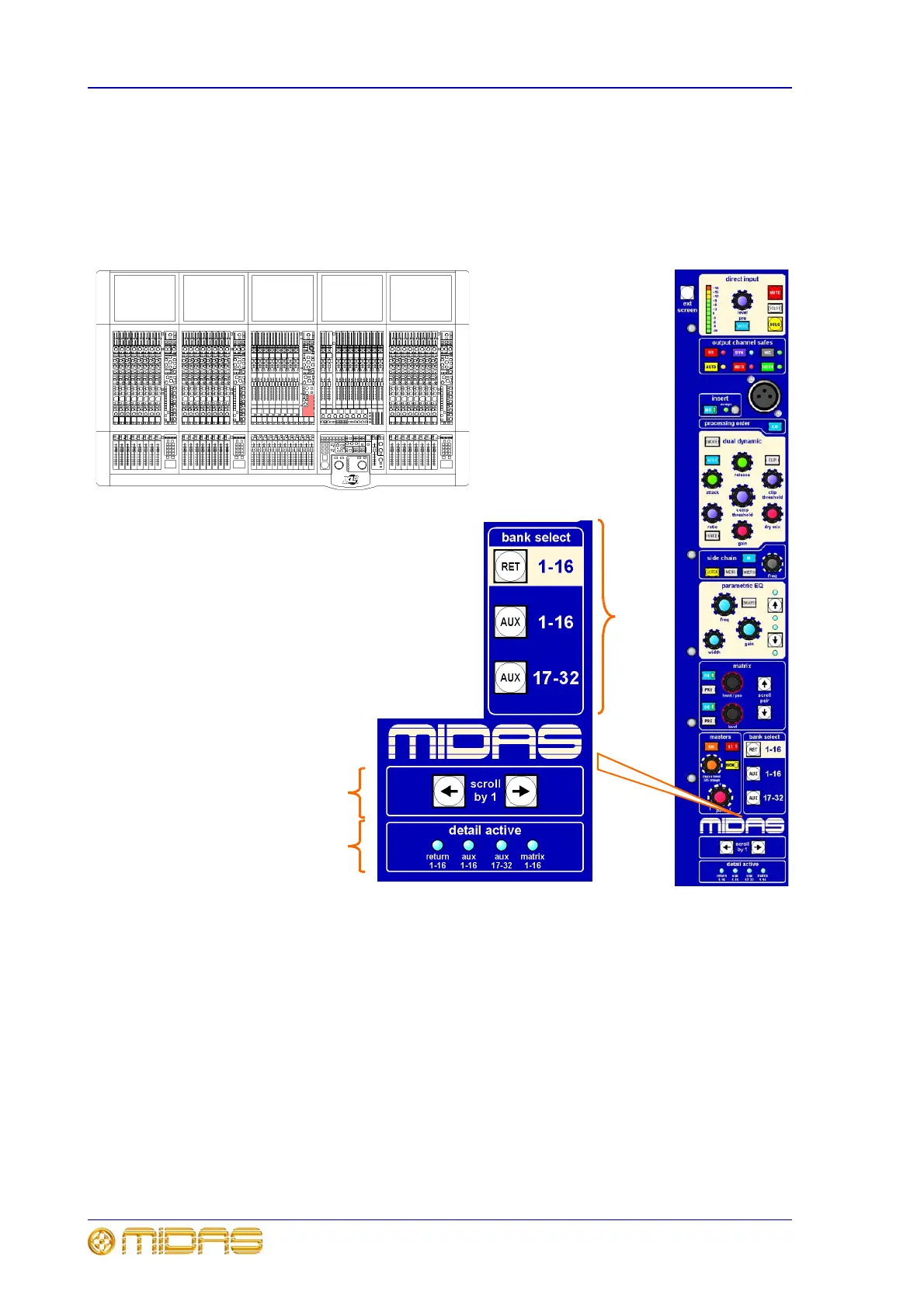

1 bank select section contains RET and AUX
switches for selecting the required bank (16 channels
each) to the mix bay control surface.
2 Scroll by 1 section contains left and right
buttons to change channel selection to the one left or
right of the one currently selected. Moves are shown
on the control surface. (You can even scroll across
stereo, mono and matrix channels on the output bay).
3 detail active section contains LEDs that
illuminate to show which bank of 16 channels (returns,
auxes or matrices) is currently selected to the control
surface.
3
2
1
