178 Chapter 9: Basic Operation

XL8 Control Centre

Operator Manual

To set up a gate

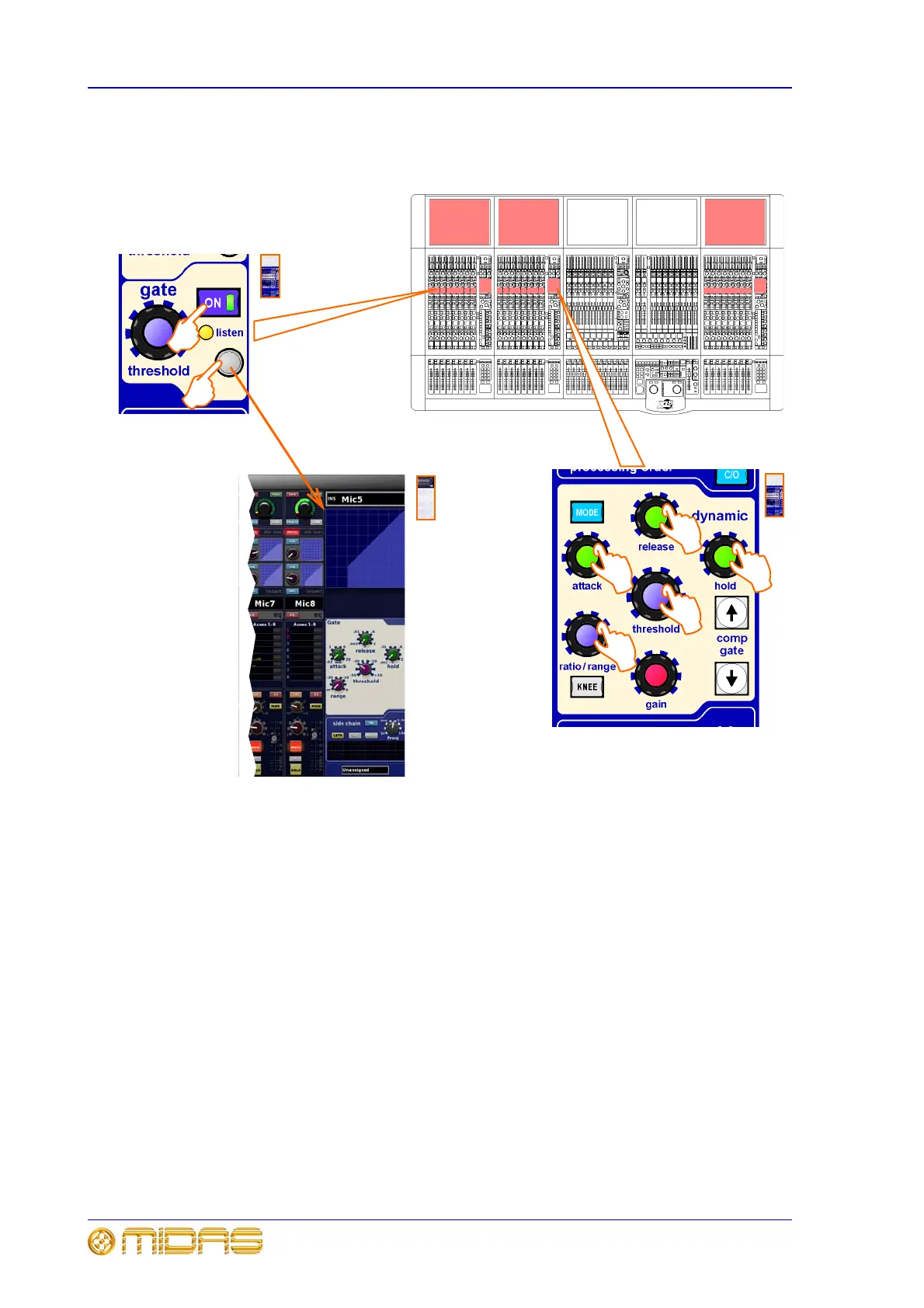

Use the D-zone controls to apply gating.

Input fast strip

D-zone

1 In the required input fast strip, press ON to switch the gate on.

2 Press the quick access button in the gate section to select the gate section.

3 Apply processing by using the controls in D-zone, such as, attack, release, threshold, ratio/range and hold.

See “Gate (D zone)” on page 52.

Graph shows the

gating effects

Default Chapter15
- Table of Contents15
