Power supply

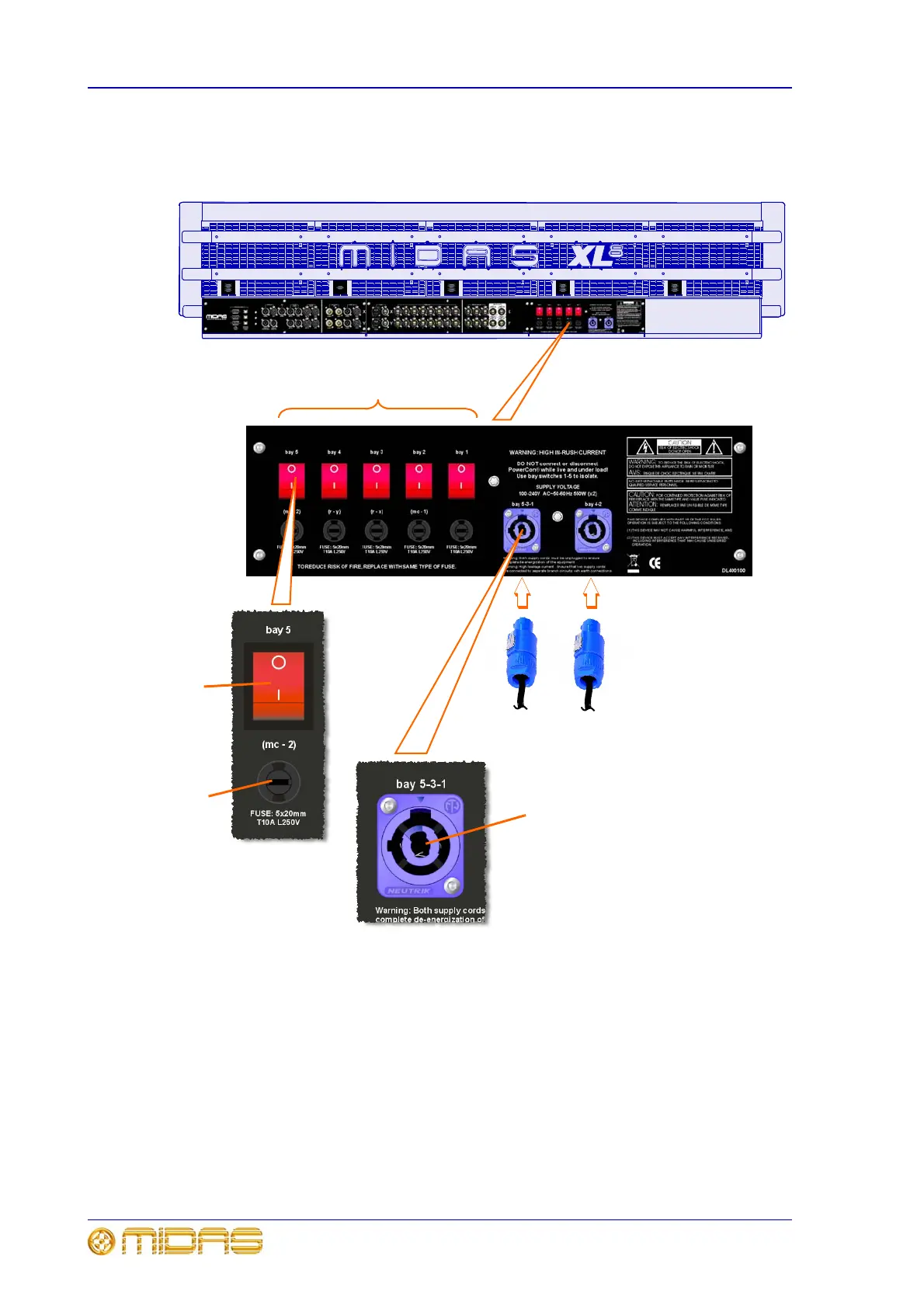

1 Isolator switches for each bay.
2 PowerCon® connector for bays 1, 3 and 5.
3 PowerCon® connector for bays 2 and 4.
4 Bay ON/OFF switch, one for each bay.
5 Mains fuse, one for each bay.
Specification is printed underneath: “FUSE:
5x20mm; T10A L250V”.
6 Neutrik PowerCon® mains socket.
3
2
1
You must heed all WARNINGS!
4
5
6
